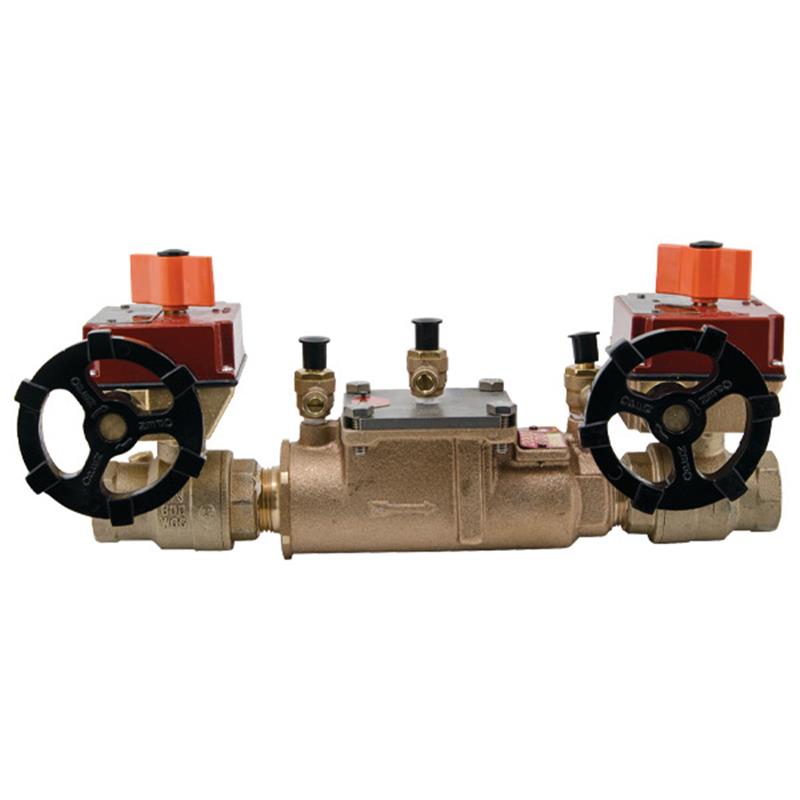

1 2000BM1-FP

Item Number: 88007304
1 1
$2,742.00
Limited Stock (4)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Ames
  • Assembly Size: 1 inch
  • Weight: 12.6 lb
  • Body Material: Bronze
  • Inlet/Outlet Connections: Female NPT
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 33°F - 140°F
  • Features Gear Operated Slow Close Isolation Valves
  • Approved for Horizontal and Vertical Installation
  • UL Classified and ASSE 1015 Listed

Description

The Ames 2000B-FP 1 inch Bronze Double Check Valve Assembly Backflow Preventer is engineered to safeguard potable water supplies from pollution in non-health hazard cross-connection applications. This compact unit features a durable bronze body, female NPT connections, and right-hand close gear operated slow close isolation valves. It offers easy maintenance via a single top-entry access cover and is approved for both horizontal and vertical installations. Operating at pressures up to 175 psi and temperatures from 33°F to 140°F, it meets ASSE 1015 and AWWA C510 standards.

Help Me Connect

The 1 inch Ames Series 2000B-FP Double Check Valve Assembly features Female NPT inlet and outlet connections. These connections are designed to easily integrate into plumbing systems with corresponding male NPT threaded pipes. The gear operated ball valves for end connections comply with National Pipe Thread Taper ANSI/ASME B1.20.1.

View full details

Additional Details

The 1 inch Ames Series 2000B-FP Double Check Valve Assembly Backflow Preventer is designed to prevent the reverse flow of polluted water into potable water supplies. It is ideal for protection at cross-connections identified as non-health hazard applications, aligning with national plumbing codes and water authority requirements.

This compact, modular backflow preventer features a bronze body with female NPT inlet/outlet connections and includes right-hand close gear operated slow close isolation valves.

Features

  • 1 inch size, bronze body construction
  • Compact modular design for horizontal and vertical installations
  • Single top entry access cover for easy maintenance
  • Replaceable seats and seat discs
  • Low pressure drop
  • No special tools required for maintenance
  • Right-hand close gear operated slow close isolation valves
  • Two pre-wired tamper switches per shutoff
  • Top mounted ball valve type test cocks

WARNING: It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing, consult your local water authority, building and plumbing codes.

Specifications

  • Body Material: Bronze
  • Assembly Size: 1 inch
  • Inlet/Outlet Connections: Female NPT
  • Isolation Valves: Right-Hand Close Gear Operated Slow Close
  • Check Modules: Two Positive Seating
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Temperature Range: 33°F - 140°F (0.5°C ~ 60°C)
  • Orientation: Horizontal and Vertical "Flow-Up" approved

Certificates & Approvals

  • Approved by the Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • ASSE 1015 Listed
  • UL Classified (US & Canada)
  • IAPMO/CUPC
  • AWWA Standard C510 Compliant
  • CSA B64.5
  • NFPA 13, 14, 15, 16, 20, 22 & 24 Compliant
  • End Connections Gear-Operated Ball Valves - National Pipe Thread Taper ANSI/ASME B1.20.1

FAQs

What is the primary purpose of this backflow preventer?

This backflow preventer is designed to prevent the reverse flow of polluted water, identified as non-health hazard contaminants, from entering the potable water supply due to backsiphonage or backpressure.

What type of connections does this assembly have?

The assembly features 1 inch Female NPT (National Pipe Thread) inlet and outlet connections, compatible with male NPT threaded pipes.

What materials is the body of the backflow preventer made from?

The body of this Ames 2000B-FP assembly is constructed from durable bronze, ensuring longevity and reliability in water systems.

Can this backflow preventer be installed in any orientation?

Yes, this double check valve assembly is approved for both horizontal and vertical "Flow-Up" installations, providing flexibility for various plumbing configurations.

What is the maximum operating pressure and temperature range for this unit?

This assembly can operate at a maximum working pressure of 175 psi (12.1 bar) and within a temperature range of 33°F to 140°F (0.5°C to 60°C).
