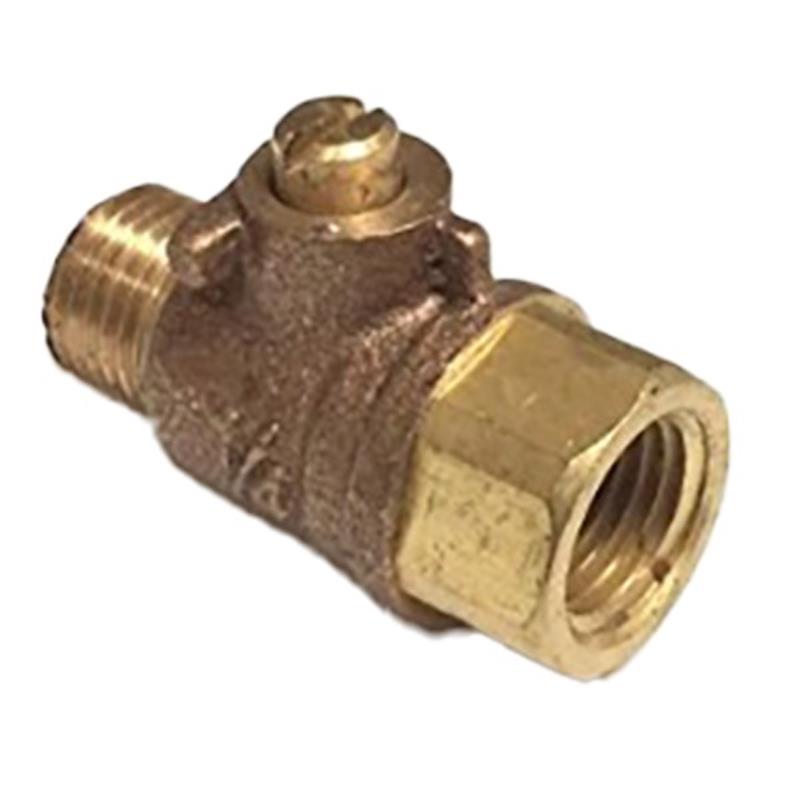

1/4" Male X 1/4" FIP Test Cock

Item Number: 755MFZ1LF
1 1
$13.45
In Stock (10)
Estimated transit time: 2 to 3 Business Days Eligible for Express Shipping

Brand - Import
  • Connection Size: 1/4" Male NPT x 1/4" Female NPT
  • Weight: 0.5 lb
  • Body Material: Lead Free Bronze C89836
  • Maximum Working Pressure: 600 PSI WOG
  • Maximum Steam Pressure: 150 PSI SWP
  • Operation: Slot Screw
  • Threaded Ends: ASME B1.20.1 Compliant
  • Ball Disc & Stem Material: Brass C6802
  • Seat Material: PTFE

Description

The 1/4" Male X 1/4" FIP Test Cock (755MFZ1LF) is a durable, lead-free bronze ball valve ideal for testing applications. It features 1/4" Male NPT by 1/4" Female NPT threaded ends, complying with ASME B1.20.1 for secure connections. Rated for 600 PSI WOG and 150 PSI SWP, this test cock ensures reliable performance under various pressures. Its lead-free construction makes it suitable for potable water systems, while the slot screw operation provides simple flow control. Item number 755MFZ1LF.
View full details

Additional Details

The 1/4" Male X 1/4" FIP Test Cock is a lead-free bronze ball valve designed for testing applications in plumbing and industrial systems.Features
  • Constructed from Lead Free Bronze (C89836 body) for potable water applications
  • Features a slot screw for opening and closing the valve
  • Threaded ends comply with ASME B1.20.1 for reliable connections
  • Rated for 600 PSI WOG (Water, Oil, Gas) and 150 PSI SWP (Saturated Steam Pressure)
  • Compact design for installation in confined spaces
Connections
  • The male end features 1/4 inch Male NPT threads for connection to a female threaded port.
  • The female end features 1/4 inch Female NPT (FIP) threads for connection to a male threaded pipe or fitting.

Specifications

  • Body Material: Bronze C89836
  • Ball Disc Material: Brass C6802
  • Stem Material: Brass C6802
  • End Plug Material: Brass C6802
  • Nut Material: Steel
  • Slot Screw Material: Steel
  • O-Ring Material: Rubber
  • Seat Material: PTFE
  • Connection Type: Male NPT x Female NPT
  • Connection Size: 1/4 inch Male x 1/4 inch Female
  • Maximum Working Pressure (WOG): 600 PSI
  • Maximum Steam Pressure (SWP): 150 PSI
  • Length (l): 1.60 inches
  • Height (H): 0.91 inches
  • Depth (D): 0.30 inches
  • Overall Length (L): 1.42 inches
  • 'A' Dimension: 0.43 inches

Certificates & Approvals

  • Threaded Ends: ASME B1.20.1 Compliant

FAQs

What are the connection sizes and types for this test cock?

This test cock features 1/4 inch Male NPT (National Pipe Taper) threads on one end and 1/4 inch Female NPT (FIP) threads on the other, making it suitable for connecting to corresponding NPT fittings.

What is the maximum pressure rating for this valve?

The valve is rated for a maximum working pressure of 600 PSI for water, oil, and gas (WOG), and a maximum saturated steam pressure (SWP) of 150 PSI.

Is this test cock suitable for potable water applications?

Yes, this test cock is constructed from Lead Free Bronze (Body: Bronze C89836), making it suitable for use in potable water systems where lead-free components are required.

What type of handle or actuator does this valve use?

This specific model, the 755MFZ1LF, is operated using a slot screw. This means it requires a flathead screwdriver or similar tool to open and close the valve.

What materials are used for the key components of this ball valve?

The body is made of Bronze C89836, the ball disc, stem, and end plug are Brass C6802, the seat is PTFE, and the O-ring is Rubber. The nut and slot screw are made of Steel.
