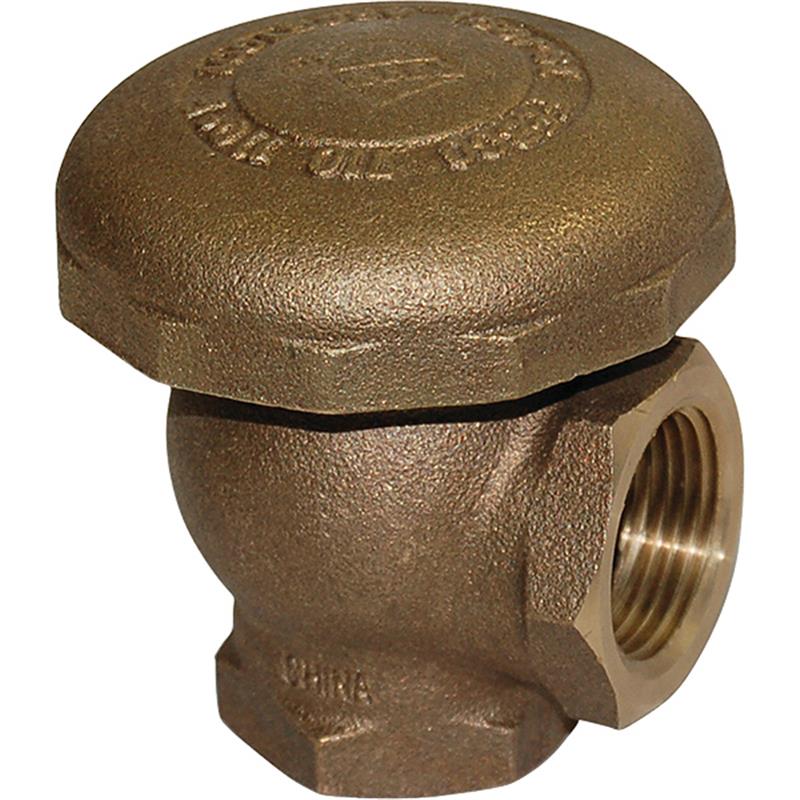

1 710A AVB

Item Number: 710E
1 1
$222.38
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • 1 inch Atmospheric Vacuum Breaker
  • Weight: 21.3 lb
  • Body Material: Bronze
  • Maximum Working Pressure: 150 PSI
  • Temperature Range: 32°F to 110°F
  • End Connections: Female NPT
  • Poppet Material: Acetal/Polypropylene
  • Protects against backsiphonage
  • ASSE 1001 approved

Description

This 1 inch FEBCO Series 710 Atmospheric Vacuum Breaker is designed for backsiphonage protection in non-continuous pressure applications. It features a durable bronze body and lightweight plastic poppets, ensuring reliable operation for hose bibbs, chemical vats, and irrigation systems. The unit has female NPT end connections and is rated for a maximum working pressure of 150 PSI, with a temperature range of 32°F to 110°F. It meets ASSE 1001 and B64.1.1 standards, providing positive protection against contaminated water entering the main supply. Item number 710E.

Help Me Connect

Connections

  • The 1 inch Female NPT inlet and outlet are designed to connect to 1 inch Male NPT threads.

Installation Guidelines

  • This atmospheric vacuum breaker must be installed on the discharge side of the last shutoff valve.
  • It requires a minimum installation height of 6 inches (150mm) above the highest point of water or overflow level.
  • The air inlet must be in a level position to ensure proper function.
  • It is critical that no valve of any type be installed on the discharge side downstream of this atmospheric vacuum breaker.
View full details

Additional Details

This 1 inch atmospheric vacuum breaker backflow preventer, part of the FEBCO Series 710, provides positive protection against the backsiphonage of impure water into the main supply system, crucial in the event of pressure loss causing vacuum conditions.

Primary Applications

  • Hose bibbs
  • Chemical vats
  • X-ray tanks
  • Turf irrigation systems
  • Laboratory sinks

Features

  • Durable bronze body construction
  • Lightweight plastic poppets
  • Resilient rubber poppet discs designed for positive closure
  • Designed for cold water applications
  • Simple service procedures, with internal parts serviceable in-line from the top
  • Meets all specifications of ASSE
  • Documented flow curves established by The Twining Labs, Inc.
  • End Connections: Female NPT ANSI/ASME B1.20.1

Operation

When the unit is pressurized, a poppet seals the air inlet. During a backsiphonage event, the poppet drops to allow air to enter the downstream piping while simultaneously shielding the water inlet from foreign materials. Upon restoration of pressure, the poppet lifts to seal the air inlet once more.

WARNING: It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing standard material product, consult your local water authority, building and plumbing codes.

Specifications

General

  • Product Type: Atmospheric Vacuum Breaker
  • Model: 710
  • Size: 1 inch
  • Body Material: Bronze
  • Elastomers: Nitrile
  • Poppet Material: Acetal/Polypropylene
  • End Connections: Female NPT

Performance

  • Maximum Working Pressure: 150 PSI (10.3 bar)
  • Hydrostatic Test Pressure: 150 PSI (10.3 bar)
  • Temperature Range: 32°F to 110°F (0°C to 43°C)

Dimensions & Weight (for 1 inch size)

  • Overall Height (A): 3 1/2 inches (89 mm)
  • Width (B): 1 3/8 inches (35 mm)
  • Air Inlet Height (C): 1 1/2 inches (38 mm)
  • Base Width (D): 3 1/4 inches (83 mm)
  • Weight: 1.75 lbs (0.8 kgs)

Certificates & Approvals

  • ASSE 1001
  • B64.1.1
  • UPC

FAQs

What is the primary purpose of this atmospheric vacuum breaker?

Its primary purpose is to protect against backsiphonage, preventing impure water from entering the main supply line when pressure loss causes vacuum conditions.

What types of applications is this 1 inch vacuum breaker suitable for?

It is ideal for non-continuous pressure applications such as hose bibbs, chemical vats, X-ray tanks, turf irrigation systems, and laboratory sinks.

What are the connection types and size for this model?

This model features 1 inch Female NPT (National Pipe Taper) inlet and outlet connections, compatible with corresponding Male NPT threads.

What are the maximum pressure and temperature ratings for the Series 710 vacuum breaker?

The maximum working pressure is 150 PSI (10.3 bar), and it can operate effectively within a temperature range of 32°F to 110°F (0°C to 43°C).

Where should this atmospheric vacuum breaker be installed in a plumbing system?

It must be installed on the discharge side of the last shutoff valve, with the air inlet in a level position, and a minimum of 6 inches (150mm) above the highest point of water. No valves should be installed downstream of the unit.
