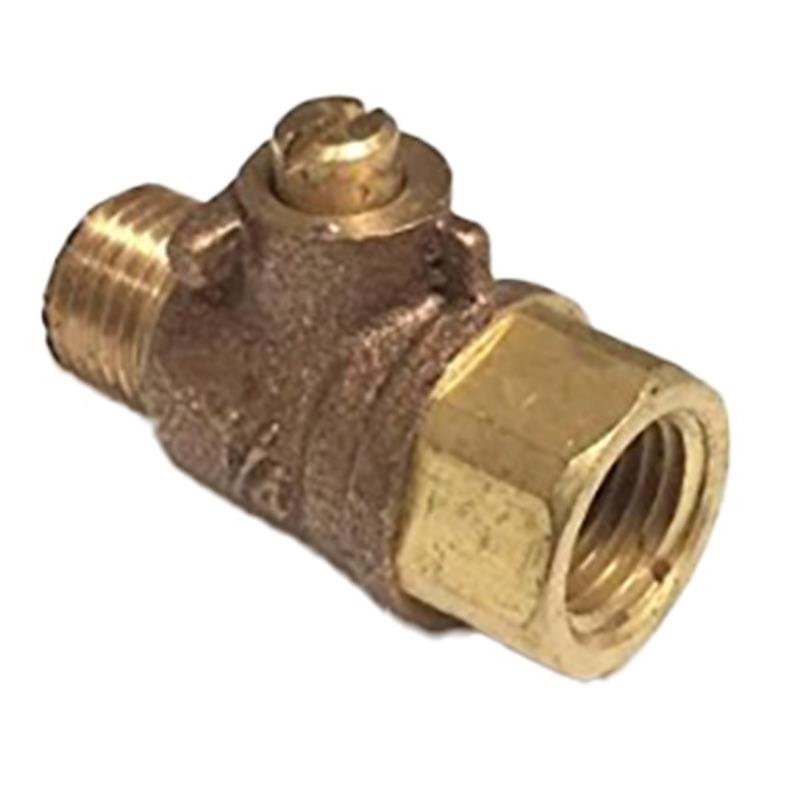

1/8" Male X 1/4" FIP Test Cock

Item Number: 755MFZ0LF
1 1
$9.41
In Stock (10)
Estimated transit time: 2 to 3 Business Days Eligible for Express Shipping

Brand - Import
  • 1/8 inch Male NPT x 1/4 inch Female NPT connections
  • Weight: 0.5 lb
  • Lead Free Bronze construction
  • Slot Screw handle for 1/4 turn operation
  • 600 PSI WOG / 150 PSI SWP pressure ratings
  • Threaded ends comply with ASME B1.20.1
  • Durable Bronze C89836 body and Brass C6802 internals
  • PTFE seat for reliable sealing

Description

The 755MFZ0LF is a durable 1/8 inch Male NPT x 1/4 inch Female NPT lead-free bronze test cock designed for reliable flow control. Featuring a convenient slot screw for 1/4 turn on/off operation, this valve is rated for 600 PSI WOG and 150 PSI SWP. Its lead-free bronze body (C89836) and brass internal components (C6802) ensure longevity and compliance for potable water applications. The threaded ends adhere to ASME B1.20.1 standards for secure connections. Item number 755MFZ0LF.

Help Me Connect

This test cock features a 1/8 inch Male NPT thread on one end and a 1/4 inch Female NPT thread on the other. The male NPT end will connect to a 1/8 inch female NPT fitting, and the female NPT end will connect to a 1/4 inch male NPT fitting. NPT threads are standard tapered pipe threads in North America, ensuring a secure, leak-tight connection when properly installed with thread sealant.
View full details

Additional Details

This 755MFZ0LF is a 1/8 inch Male NPT x 1/4 inch Female NPT test cock, designed for reliable flow control in various applications. It is constructed from high-quality, lead-free bronze and features an easy 1/4 turn screwdriver slot for smooth on and off operation.Features & Benefits
  • Lead Free Bronze construction for potable water applications
  • Rated for 600 WOG (Water, Oil, Gas) and 150 SWP (Steam Working Pressure)
  • Male NPT x Female NPT connections
  • Equipped with a Slot Screw handle for simple 1/4 turn operation
  • Threaded ends comply with ASME B1.20.1 standard
Construction Materials
  • Body: Bronze C89836
  • Ball Disc, Stem, End Plug: Brass C6802
  • Seat: PTFE
  • Handle, Nut: Steel
  • O-Ring: Rubber

Specifications

  • Product Type: Ball Valve Test Cock
  • Part Number: 755MFZ0LF
  • Connection 1: 1/8 inch Male NPT
  • Connection 2: 1/4 inch Female NPT
  • Handle Type: Slot Screw
  • Maximum Working Pressure (WOG): 600 PSI
  • Maximum Steam Working Pressure (SWP): 150 PSI
  • Body Material: Lead Free Bronze C89836
  • Ball Disc Material: Brass C6802
  • Stem Material: Brass C6802
  • End Plug Material: Brass C6802
  • Seat Material: PTFE
  • Handle Material: Steel
  • Nut Material: Steel
  • O-Ring Material: Rubber

Certificates & Approvals

  • Lead Free Bronze
  • Threaded Ends Comply with ASME B1.20.1

FAQs

What are the connection sizes and types for this test cock?

The test cock has a 1/8 inch Male NPT (National Pipe Taper) connection on one end and a 1/4 inch Female NPT connection on the other.

What are the pressure ratings for this valve?

It is rated for 600 PSI WOG (Water, Oil, Gas) and 150 PSI SWP (Steam Working Pressure), indicating its suitability for various fluid and steam applications.

Is this test cock lead-free?

Yes, the test cock is constructed from Lead Free Bronze (C89836), making it compliant for use in potable water systems.

What type of handle does this valve have?

This specific model (755MFZ0LF) features a Slot Screw handle, allowing for easy 1/4 turn on/off operation using a standard screwdriver.

What materials are used for the internal components?

The ball disc, stem, and end plug are made from Brass C6802, while the seat is PTFE, providing durability and reliable sealing.
