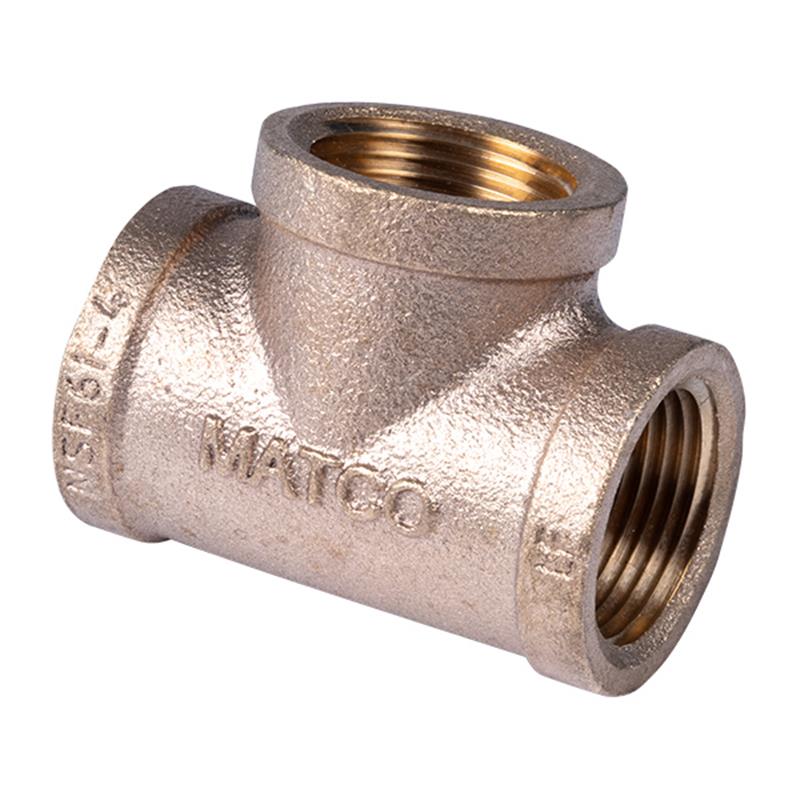

1" Lead Free Brass Tee

Item Number: 15533
Skip to product information
1 of 1
Regular price $22.19
In Stock (10)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Matco-Norca

  • Size: 1 inch
  • Weight: 0.81 lb
  • Material: Lead Free Brass (Alloy C89833)
  • Class: 125 lbs.
  • Threads: ASME B1.20.1
  • Approved: NSF 61, 372
  • Configuration: Standard Tee
  • Connection Type: Female NPT threads

Description

The 1 inch Lead Free Brass Tee is a robust, Class 125 lbs. fitting manufactured from ASTM B584, Alloy C89833 lead-free brass. It features three female NPT threaded connections, compliant with ASME B1.20.1, to effectively split or combine fluid flow in plumbing systems. This fitting is approved by NSF 61 and NSF 372, making it suitable for potable water applications. Its durable construction ensures reliable performance for residential, commercial, and industrial plumbing needs, accommodating pipe diameters from 1/8 inch to 4 inches. Item number 15533.

Help Me Connect

Connecting a 1 inch Lead Free Brass Tee

This 1 inch Lead Free Brass Tee features female NPT threads on all three ports. To connect this fitting, you will need:

  • 1 inch male NPT threaded pipes or fittings for each of the three openings.
  • An appropriate sealant, such as pipe thread tape or pipe dope, should be applied to the male threads to ensure a leak-tight connection compliant with ASME B1.20.1 standards.
View full details

Collapsible content

Additional Details

This is a 1 inch Lead Free Brass Tee, designed to connect three lengths of pipe at a single point, allowing for changes in direction and flow distribution within a plumbing system. It features female NPT threads on all three openings for secure, leak-free connections.

Features

  • Constructed from Lead Free Brass (ASTM B584, Alloy C89833) for potable water applications.
  • Class 125 lbs. pressure rating suitable for a variety of general plumbing uses.
  • Meets NSF 61 and NSF 372 approvals for health effects and lead content in drinking water systems.
  • Designed with ASME B1.20.1 threads ensuring compatibility and ease of installation.

Specifications

  • Product Type: Tee
  • Size: 1 inch
  • Material: ASTM B584, Alloy C89833
  • Class: 125 lbs.
  • Dimensions: ASME B16.15, B16.18
  • Threads: ASME B1.20.1
  • Overall Length (A Dimension): 1.43 inches

Certificates & Approvals

  • NSF 61
  • NSF 372

FAQs

What is the primary material of this 1 inch Lead Free Brass Tee?

This tee is constructed from lead-free brass, specifically ASTM B584, Alloy C89833, ensuring safety for potable water applications.

What thread standard does this brass tee use?

All threaded connections on this tee conform to the ASME B1.20.1 standard, ensuring compatibility with standard NPT (National Pipe Taper) threaded pipes and fittings.

Is this brass tee approved for use with drinking water?

Yes, this Lead Free Brass Tee holds NSF 61 and NSF 372 approvals, confirming its suitability for use in potable water systems.

What is the pressure rating for this brass tee?

This Lead Free Brass Tee is rated as Class 125 lbs., indicating its design for general purpose pressure applications within plumbing systems.

What are the available size ranges for Matco Norca Lead Free Brass Fittings?

Matco Norca Lead Free Brass Fittings are available in a wide range of diameters, from 1/8 inch through 4 inches, providing versatility for various plumbing configurations.
