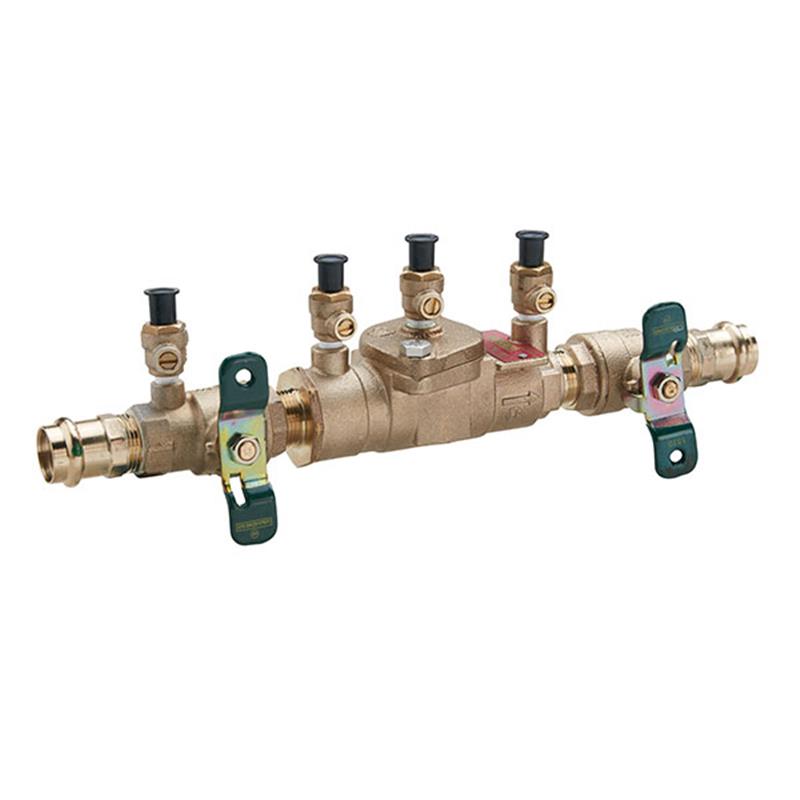

This 1 inch Lead Free Double Check Valve Backflow Preventer Assembly is designed to prevent the backflow of polluted water into the potable water supply due to backsiphonage or backpressure.

It is ideal for protection in continuous pressure piping applications and at cross-connections identified as non-health hazards, ensuring compliance with national plumbing codes and water authority requirements.

Design & Construction

• Features a compact modular design for easy installation and maintenance.
• Constructed with a Lead Free* cast copper silicon alloy body.
• ArmorTek® powder coating is applied to internal and external surfaces for enhanced corrosion resistance.
• Includes two in-line independent positive seating check modules with captured springs.
• Replaceable check discs and seats facilitate field repairs.
• Utilizes stainless steel access cover bolts.

Connections & Operation

• Equipped with NPT end connections and Viega ProPress® adaptors for versatile installation.
• Features quarter turn ball valve shutoffs with tee handles.
• Includes top-mounted test cocks for easy testing.

Maintenance

• Designed for easy maintenance through a single, top-entry access cover.
• No special tools are required for servicing the internal components.

Important Safety Information

• A freeze sensor is installed on the assembly exterior but requires an add-on connection kit (sold separately) to activate a monitoring system for freeze alerts. The sensor itself cannot prevent a freeze event; user action is required to prevent damage. Watts is not responsible for data transmission failures due to power outages, connectivity issues, or improper installation.
