Brand - Watts
Couldn't load pickup availability
Lead Free Cast Copper Silicon Alloy Body
Weight: 11.6 lb
Connection Size: 1 inch NPT
Quarter-Turn Ball Valve Shutoffs with Tee Handles
Flood Sensor with SentryPlus Alert® Technology
Maximum Operating Pressure: 175 PSI
Water Temperature Range: 33°F - 180°F
Single Access Cover for Easy Maintenance
Replaceable Seats for Economical Repair
Description

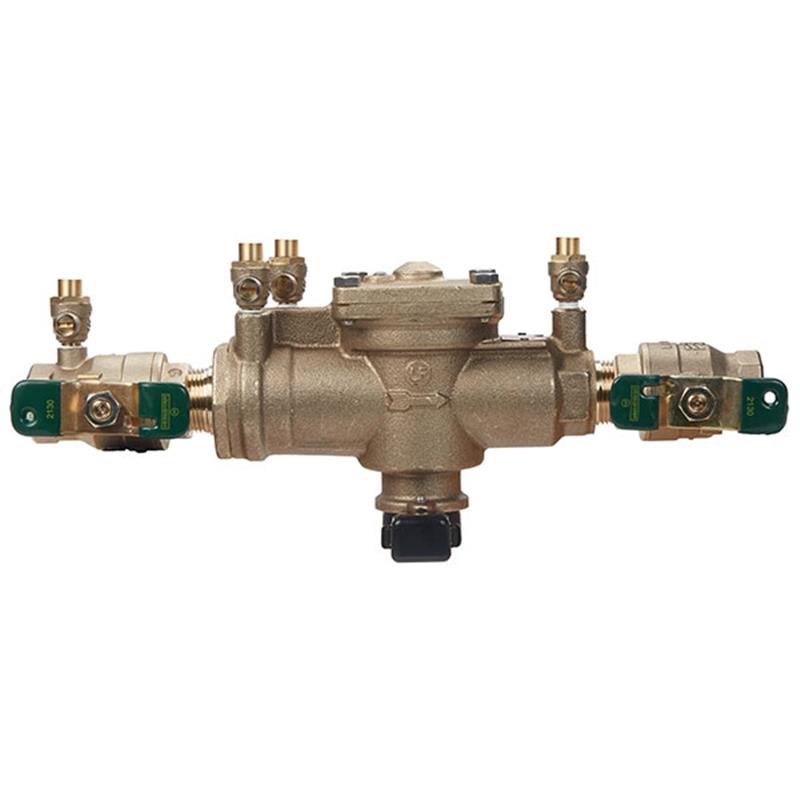

This Watts 1 inch Lead Free Reduced Pressure Zone Backflow Preventer Assembly is designed to safeguard potable water supplies from contamination. It prevents health hazard cross-connections and is suitable for various installations, including irrigation systems and service line containment. Constructed from lead free copper silicon alloy with 1 inch NPT connections and quarter-turn shutoff valves, it ensures reliable performance. A built-in flood sensor with SentryPlus Alert® technology detects excessive relief valve discharge, enhancing system monitoring. Its modular design with a single access cover allows for straightforward maintenance and economical repairs.
Help Me Connect
Connections
The assembly features 1 inch NPT inlet and outlet connections, designed to connect with corresponding 1 inch NPT threaded piping.
The integrated flood sensor with SentryPlus Alert® technology requires an add-on connection kit (not included) to enable communication and relay alerts. Connection kit options include BMS, cellular communication, and the Sensor Control Monitor for integration with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi.
This 1 inch lead free reduced pressure zone backflow preventer assembly is designed to protect potable water supplies from contamination due to backsiphonage and/or backpressure.
Primary Use
Prevents health hazard cross-connections in piping systems.
Used for containment at the service line entrance.
Suitable for irrigation systems, boiler feed, and other installations requiring maximum protection.
Features
Lead Free cast copper silicon alloy body construction.
Features NPT inlet and outlet connections.
Quarter-turn full port resilient seated ball valve shutoffs with tee handles.
Includes a flood sensor with SentryPlus Alert® technology to detect continuous discharge from the relief valve.
Single access cover and modular check construction for ease of maintenance.
Top entry to all internals for immediate accessibility.
Internal relief valve for reduced installation clearances.
Replaceable seats for economical repair.
Equipped with two in-line, independent check valves, captured springs, and replaceable check seats.
An add-on connection kit is required to activate the flood sensor. Without the connection kit, the sensor is a passive component with no communication.
Specifications
Body Material: Lead Free Cast Copper Silicon Alloy
Connection Size: 1 inch
Connection Type: NPT Inlet and Outlet
Shutoff Valves: Quarter-Turn Full Port Resilient Seated Ball Valves with Tee Handles
Maximum Operating Pressure: 175 PSI (12.1 bar)
Water Temperature Range: 33°F - 180°F (0.5° - 82°C)
Check Valves: Two In-Line Independent Check Valves
Relief Valve: Internal Pressure Differential
Disc Material: Silicone Rubber
Seat Material: Replaceable Polymer
Cover Bolts: Stainless Steel
Certificates & Approvals
USC
ASSE Std. 1013
AWWA Std. C511
CSA B64.4
FAQs
What is a Reduced Pressure Zone (RPZ) backflow preventer assembly?
An RPZ assembly is a type of backflow prevention device designed to protect potable water supplies from contamination due to backsiphonage and backpressure. It creates a zone of reduced pressure to prevent polluted water from flowing back into the clean supply.
What does "Lead Free" construction mean for this product?
“Lead Free” indicates that the wetted surfaces of this product, those in contact with consumable water, contain less than 0.25% of lead by weight. This complies with modern plumbing codes for safe drinking water systems.
How does the flood sensor feature work on this backflow preventer?
The integrated flood sensor with SentryPlus Alert® technology detects excessive water discharge from the relief valve. To activate its alert capabilities and enable communication, an add-on sensor connection kit must be purchased separately.
What are the primary applications for this 1-inch RPZ backflow preventer?
This assembly is ideal for preventing health hazard cross-connections in piping systems, containment at service line entrances, irrigation systems, and boiler feed lines. It provides maximum protection for potable water supplies.
What type of connections does this backflow preventer assembly have?
This 1-inch backflow preventer assembly features NPT (National Pipe Taper) inlet and outlet connections, allowing for secure and standard threaded pipe installations.
