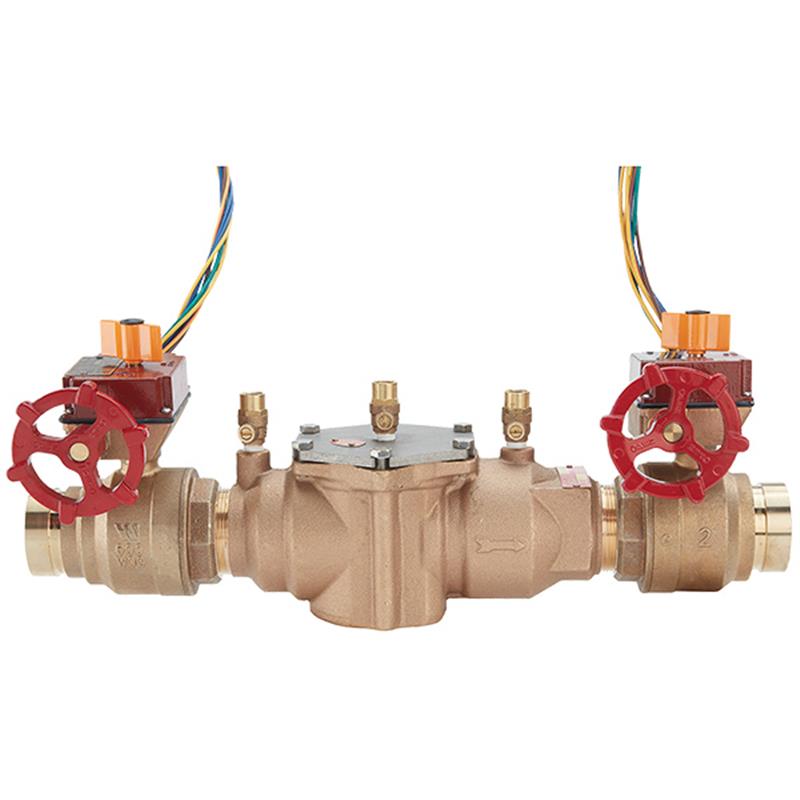

1 LF2000BM1-FP - GV

Item Number: 88007253
1 1
$3,008.25
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 1 inch
  • Weight: 12.8 lb
  • Body Material: Lead Free Bronze
  • Max Operating Pressure: 175 PSI
  • Temperature Range: 33°F - 140°F
  • End Connections: Grooved End
  • Isolation Valves: Gear Operated Slow Close
  • Installation: Horizontal or Vertical
  • Approvals: ASSE 1015, UL, AWWA C510, CSA B64.4

Description

This 1-inch Lead Free Bronze Double Check Valve Backflow Preventer Assembly is designed to prevent the reverse flow of contaminated, non-potable water into the potable water supply. Featuring grooved end connections and gear-operated slow-close isolation valves, it ensures protection against backsiphonage and backpressure in non-health hazard applications. The assembly boasts a compact, modular design with a single top-entry access cover for easy maintenance. It is approved for both horizontal and vertical installations, offering a maximum operating pressure of 175 PSI. Item number 88007253.
View full details

Additional Details

This 1-inch Lead Free Bronze Double Check Valve Backflow Preventer Assembly is designed to prevent the reverse flow of contaminated water of non-potable quality from being pumped or siphoned into the potable water supply. It protects against backsiphonage and backpressure in accordance with national plumbing codes and water authority requirements, making it ideal for non-health hazard cross-connection applications.

Key Features

  • Features a lead free bronze body for durability and compliance
  • Equipped with gear operated slow close isolation valves and two pre-wired tamper switches
  • Designed with a single top entry access cover for easy maintenance without special tools
  • Compact modular design allows for versatile installation in both horizontal and vertical orientations
  • Includes two positive seating check modules and top mounted ball valve type test cocks
  • Low pressure drop design ensures efficient water flow

Installation and Maintenance

  • Approved for both horizontal and vertical flow-up installations
  • No special tools are required for maintenance due to the top entry access cover
  • Reversible seat discs for extended service life
  • Gear Operated Ball Valves (GOBV) can be wired Normally Open or Normally Closed

Specifications

  • Body Material: Lead Free Bronze
  • Assembly Size: 1 inch
  • Maximum Operating Pressure: 175 PSI (12.06 BAR)
  • Temperature Range: 33°F - 140°F (0.5°C - 60°C)
  • End Connections: Grooved End
  • Isolation Valves: Gear Operated Slow Close
  • Tamper Switches: Two pre-wired, per shutoff
  • Maintenance: One top entry access cover
  • Test Cocks: Top mounted ball valve type
  • Installation Orientation: Horizontal or Vertical

Certificates & Approvals

  • Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California (FCCCHR USC)
  • Listed to ASSE 1015
  • UL Classified (US & Canada)
  • Compliant with AWWA C510 Standard
  • CSA B64.4
  • Compliant with NFPA 13, 14, 15, 16, 20, 22 & 24

FAQs

What is the primary use of this backflow preventer assembly?

This 1-inch Lead Free Bronze Double Check Valve Backflow Preventer Assembly is primarily used to prevent the reverse flow of non-potable, contaminated water into the potable water supply in non-health hazard cross-connection applications.

What type of end connections does this assembly have?

This assembly features 1-inch Grooved End Connections, designed for secure and efficient attachment to compatible piping systems.

What are the maximum operating pressure and temperature ratings?

The assembly has a maximum operating pressure of 175 PSI (12.06 BAR) and a temperature range of 33°F to 140°F (0.5°C to 60°C).

Can this backflow preventer be installed in any orientation?

Yes, this assembly is approved for both horizontal and vertical 'flow-up' installations, offering flexibility for various piping configurations.

What material is the body of the backflow preventer made from?

The body of this backflow preventer assembly is constructed from durable Lead Free Bronze, ensuring compliance and longevity.
