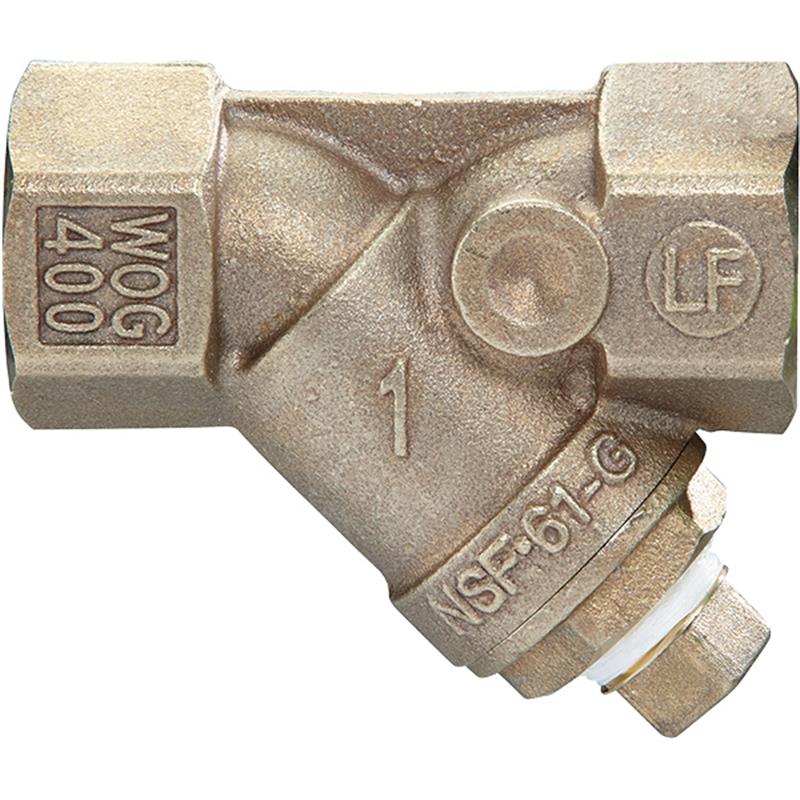

1 LF650A

Item Number: 0122977
1 1
$131.99
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Strainer Type: Y-Pattern
  • Weight: 10.5 lb
  • Nominal Size: 1 inch
  • Body Material: Lead Free Cast Copper Silicon Alloy
  • Screen Material: 304 Stainless Steel
  • Screen Mesh: 20 Mesh
  • Maximum Working Pressure: 400 PSI WOG
  • Connections: Female NPT Inlet and Outlet
  • Certified: NSF 61-G, Lead Free

Description

This 1 inch FEBCO LF650A Lead Free Wye Strainer is designed to protect valuable pipeline equipment, such as backflow preventers, from debris and foreign material. Constructed from lead free cast copper silicon alloy with a 304 stainless steel 20 mesh screen, it ensures clean water flow. It features female NPT inlet and outlet connections for straightforward installation and a tapped retainer cap with a closure plug for convenient maintenance. Rated for a maximum working pressure of 400 PSI WOG, this strainer is an essential component for maintaining system integrity and extending equipment life.

Help Me Connect

Connections

  • The 1 inch Female NPT inlet connects to a 1 inch male NPT threaded pipe or fitting.
  • The 1 inch Female NPT outlet connects to a 1 inch male NPT threaded pipe or fitting.
  • The tapped blow down port (located in the retainer cap) allows for easy cleaning or drainage, accepting a plug or a valve for blow-down operations.
View full details

Additional Details

This 1 inch lead free Y-pattern strainer is designed for installation in water piping systems to protect sensitive equipment, such as backflow preventers, from damage caused by foreign material in the pipeline.

The strainer features a lead free body construction and a tapped retainer cap with a closure plug for easy maintenance.

Features

  • Lead free cast copper silicon alloy body construction
  • Tapped retainer cap with closure plug for convenient maintenance
  • Female NPT inlet and outlet connections
  • Durable 304 stainless steel screen
  • Recessed screen seats for accurate screen alignment

Specifications

General

  • Strainer Type: Y-Pattern
  • Nominal Size: 1 inch
  • Body Material: Lead Free Cast Copper Silicon Alloy
  • Cap/Cover Material: Cast Copper Silicon Alloy
  • Screen Material: 304 Stainless Steel
  • Screen Mesh: 20 Mesh

Performance

  • Maximum Working Pressure (WOG): 400 PSI (27.6 bar) @ 210°F (99°C)
  • Maximum Working Pressure (WSP): 125 PSI (8.6 bar) @ 353°F (178°C)

Connections

  • Inlet Connection Type: Female NPT
  • Outlet Connection Type: Female NPT

Certificates & Approvals

  • NSF 61-G
  • Lead Free (less than 0.25% lead by weight in wetted surface)

FAQs

What is the primary purpose of the FEBCO 1 LF650A Y-strainer?

The primary purpose of this 1 inch lead free Y-strainer is to protect sensitive equipment, such as backflow preventers, within water piping systems by filtering out foreign material and debris.

What material is the body of the LF650A strainer made from?

The body of the LF650A strainer is constructed from lead free cast copper silicon alloy, ensuring compliance with lead-free requirements for water applications.

What type of connections does this 1 inch strainer have?

This 1 inch Y-strainer features female NPT (National Pipe Taper) connections for both the inlet and outlet, allowing for easy integration into standard threaded piping systems.

How is the screen cleaned or maintained on this strainer?

The strainer is designed with a tapped retainer cap that includes a closure plug. This allows for convenient access to the 304 stainless steel screen for cleaning or for blow-down operations to remove collected debris.

What is the maximum working pressure for the FEBCO 1 LF650A strainer?

The maximum working pressure for this strainer is 400 PSI WOG (Water, Oil, Gas) at 210°F (99°C) and 125 PSI WSP (Working Steam Pressure) at 353°F (178°C).
