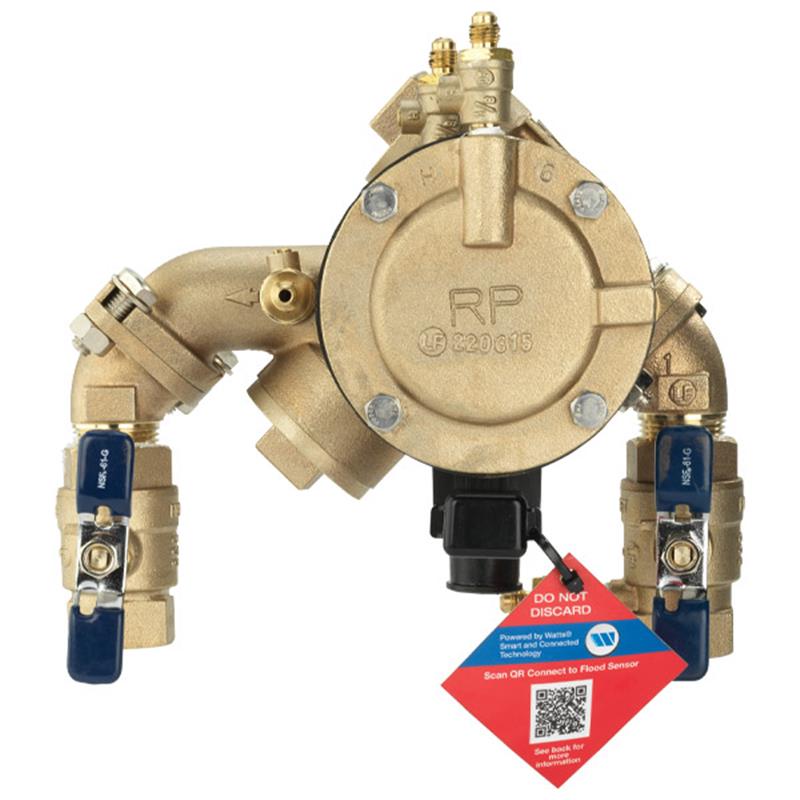

1 LF825YA-QT-RP-FS

Item Number: F683012
1 1
$1,514.11
Limited Stock (1)
Estimated transit time: 2 to 5 Business Days Eligible for Express Shipping

Brand - Febco
  • Product Size: 1 inch
  • Type: Angle Pattern Reduced Pressure Zone Backflow Preventer
  • Body Material: Lead Free Cast Copper Silicon Alloy
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 32°F to 140°F
  • Features SentryPlus Alert flood sensor
  • Quarter turn ball valve shutoffs
  • Modular relief valve and check valves for easy maintenance

Description

The FEBCO 1 inch LF825YA is a Lead Free Angle Pattern Reduced Pressure Zone Backflow Preventer Assembly designed to safeguard potable water systems from contamination by toxic fluids. Ideal for industrial, medical, and irrigation applications, this compact unit features durable lead-free cast copper silicon alloy construction and quarter-turn ball valves. A SentryPlus Alert flood sensor detects excessive relief valve discharge, offering advanced monitoring when paired with an add-on connection kit. With a maximum working pressure of 175 psi and a temperature range of 32°F to 140°F, it ensures reliable backflow prevention and simplifies maintenance through modular components.

Help Me Connect

Connections & Installation

  • The assembly features NPT ANSI/ASME B1.20.1 threaded connections with integral angle union connections for ease of installation and removal from the line.
  • Shipped in a vertical up flow/vertical down flow out configuration, the assembly can be modified to three other configurations by rotating end adapters.
  • Install with a minimum clearance of 12 inches between the port and floor or grade, ensuring proper drainage for any discharge.

Note: This product must be protected from freezing. Installation should comply with all local codes and regulations.

View full details

Additional Details

The 1 inch FEBCO LF825YA Angle Pattern Reduced Pressure Zone Assembly with a flood sensor protects against the reverse flow of high hazard (toxic) fluids from entering the potable water supply due to backsiphonage and/or backpressure.

This compact, integral assembly is ideal for industrial plants, hospitals, morgues, chemical plants, irrigation systems, and boiler feeds, simplifying new and retrofit installations in limited spaces.

Key Features

  • Features a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve.
  • An add-on sensor connection kit (required, sold separately) activates flood alerts, enabling communication with BMS, cellular communication, or Sensor Control Monitor for integration with BAS via RS-485 Modbus or Nexa® platform through Wi-Fi.
  • Lead Free* construction complies with current lead-free installation requirements, containing less than 0.25% lead by weight on wetted surfaces.
  • Modular relief valve and check valve internal components allow for ease of maintenance.
  • Quarter turn ball valves and angle union connections provide versatility and simplified installation.
  • Compact design and integral flanged unions reduce installation time, labor costs, and materials, eliminating the need for pipe elbows, nipples, and unions.
  • Replaceable seat rings ensure longer valve life.
  • Offers low head loss for optimum performance.

Notice: An add-on connection kit is required to activate the flood sensor. Without the connection kit, the sensor is a passive component with no communication. The flood sensor does not replace the need to comply with all required instructions, codes, and regulations related to installation, operation, and maintenance, including providing proper drainage for discharge.

Specifications

General

  • Product Size: 1 inch
  • Type: Angle Pattern Reduced Pressure Zone (RPZ) Backflow Preventer
  • Connection Type: NPT ANSI/ASME B1.20.1 Threaded with Angle Union Connections
  • Shutoff Valves: Threaded Quarter Turn Ball Valves
  • Body Material: Lead Free* Cast Copper Silicon Alloy
  • Relief Valve Body Material: Lead Free* Cast Copper Silicon Alloy
  • Elastomers: Nitrile Seat Discs
  • Diaphragms: Nitrile, Fabric Reinforced
  • Springs: Stainless Steel
  • Lead Free Compliant: Yes (wetted surface contains less than 0.25% lead by weight)

Performance

  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Hydrostatic Test Pressure: 350 psi (24.1 bar)
  • Temperature Range: 32°F to 140°F (0°C to 60°C)
  • Features: Flood Detection Sensor (FS)

Certificates & Approvals

  • Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California
  • AWWA C511 Conformance
  • ASSE 1013
  • CSA B64.4
  • NSF/ANSI 61-G

FAQs

What type of fluids does this backflow preventer protect against?

This backflow preventer is designed to protect potable water supplies from contamination by high hazard (toxic) fluids that could enter due to backsiphonage or backpressure.

What is the purpose of the integrated flood sensor?

The integrated flood sensor with SentryPlus Alert technology detects excessive water discharges from the relief valve, signaling potential flooding events. An add-on connection kit is required to activate its alert capabilities.

Is this backflow preventer lead-free?

Yes, the FEBCO LF825YA features Lead Free* construction, meaning the wetted surfaces of this product contain less than 0.25% lead by weight, complying with current lead-free installation requirements.

What are the key maintenance advantages of this assembly?

This assembly features modular relief valve and check valve internal components, allowing for easier maintenance. It also includes integral flanged union connections for simplified removal from the line without spool substitution.

What is the maximum operating pressure and temperature for this device?

The FEBCO LF825YA can operate at a maximum working pressure of 175 psi (12.1 bar) and within a water temperature range of 32°F to 140°F (0°C to 60°C).
