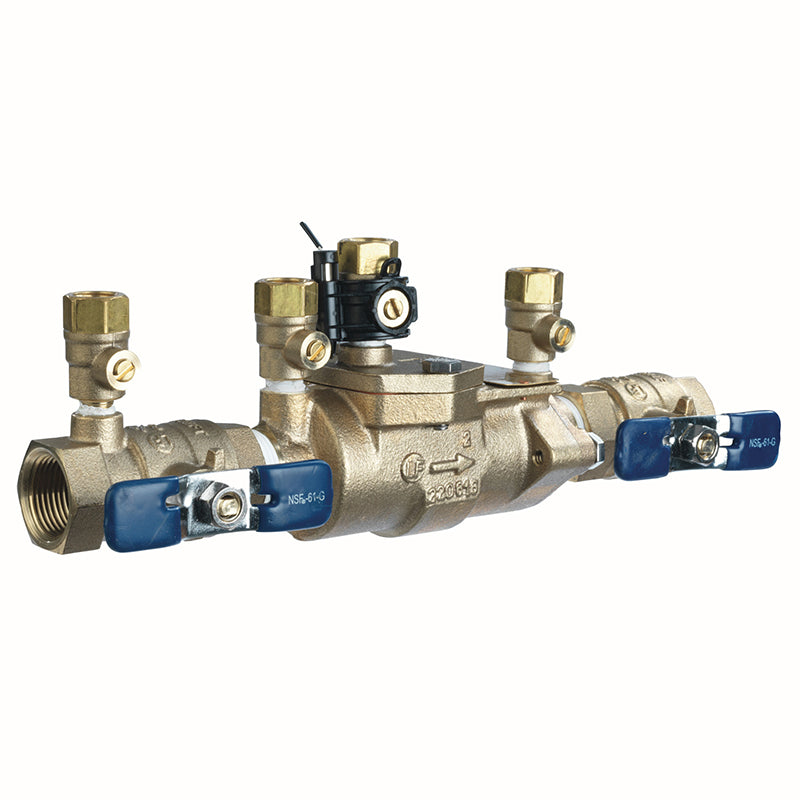

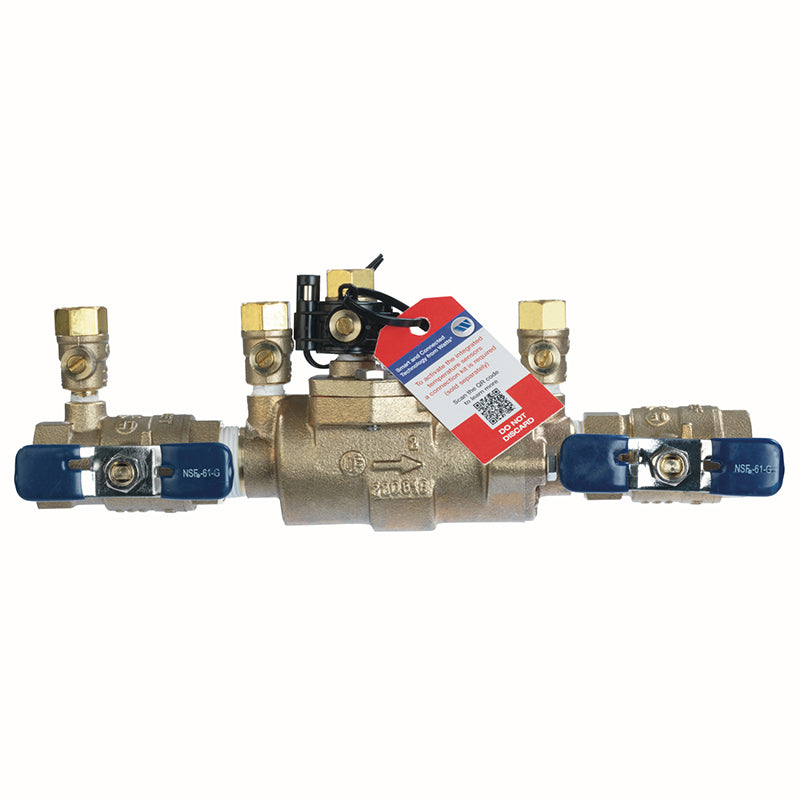

This 1 inch Lead Free Double Check Valve Backflow Preventer Assembly is designed for non-health hazard applications, protecting the potable water supply from polluted water due to backsiphonage or backpressure. It features a compact modular design for easy in-line maintenance with a single access cover.

The assembly includes a freeze sensor with SentryPlus Alert® technology to monitor temperature and alert facility personnel when freeze conditions could cause equipment damage.

Features

• Lead Free cast copper silicon alloy body construction to comply with lead-free installation requirements
• Includes a freeze sensor to monitor temperature and provide alerts for low and freezing conditions
• Compact modular design facilitates easy in-line maintenance with a single access cover
• Two in-line independent positive seating check modules
• Replaceable seats and seat discs
• Top-mounted test cocks for easy testing
• NPT end connections (ANSI/ASME B1.20.1)
• Quarter-turn ball valve shutoffs for reliable operation
• Available freeze sensor connection kit to activate a monitoring system that triggers alerts for low and freezing temperatures via Wi-Fi, BMS, or irrigation management systems

WARNING: The freeze sensor provides alerts about a possible freeze event but cannot prevent it from occurring. User action is required to prevent freeze conditions from causing product and/or property damage. An add-on connection kit (sold separately) is required to activate the freeze sensor; without it, the sensor is a passive component and does not communicate with any other device.
