Body Material: Investment Cast 316 Stainless Steel
Connection Type: NPT
Maximum Working Pressure: 175 PSI
Temperature Range: 33°F - 180°F
Features SentryPlus Alert Flood Sensor
Quarter-Turn Ball Valve Shutoffs
Lead Free* Construction
Description

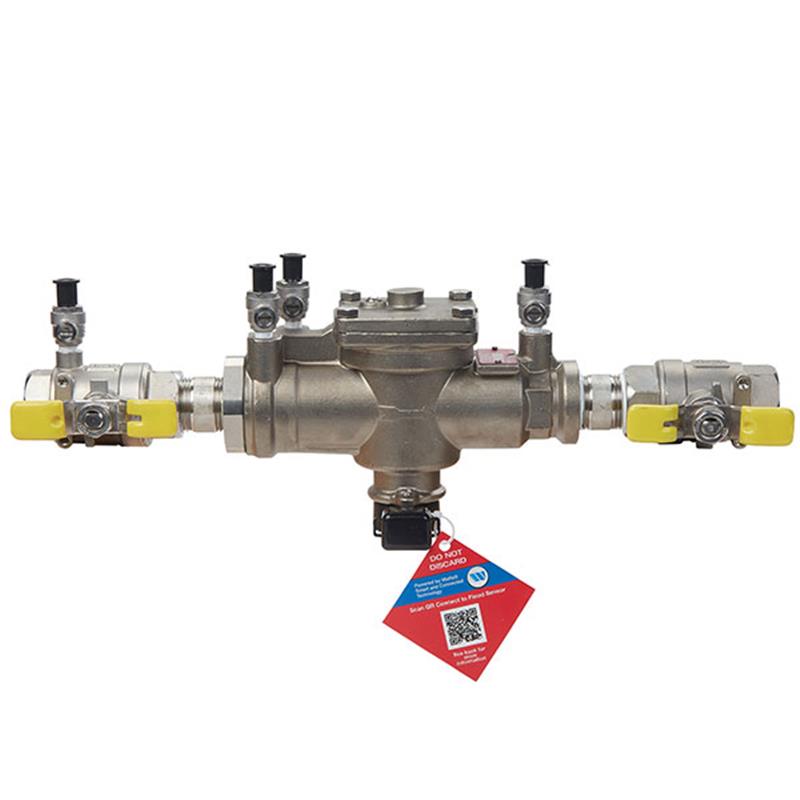

This 1 inch Watts Series SS009 Reduced Pressure Zone Backflow Preventer Assembly is designed to protect potable water supplies from pollution due to backsiphonage and backpressure. It is suitable for industrial plants, medical diagnostic equipment, reverse osmosis systems, and chemical plants. Constructed with an Investment Cast 316 Stainless Steel body for superior corrosion resistance, it features NPT inlet and outlet connections and quarter-turn ball valve shutoffs. The assembly includes a SentryPlus Alert flood sensor to detect water discharges from the relief valve, offering advanced protection. Replaceable check seats and a top-entry cover ensure ease of maintenance and economical repairs. Approved to ASSE 1013 and AWWA C511-92 standards.
Help Me Connect
This 1 inch backflow preventer assembly features NPT inlet and outlet connections.
It is designed to connect to 1 inch NPT threaded pipes. The quarter-turn ball valve shutoffs facilitate easy isolation of the assembly for testing or maintenance.
This 1 inch Watts Series SS009 Reduced Pressure Zone Backflow Preventer Assembly is designed to prevent the flow of polluted water from entering into the potable water supply due to backsiphonage and/or backpressure. It is ideal for typical applications found in industrial plants, medical diagnostic equipment, reverse osmosis systems, carbonated beverage machines, brewing distillers, paper and pulp industries, chemical plants, and aggressive atmospheres.
Features
Investment Cast 316 Stainless Steel assembly for superior corrosion resistance
SentryPlus Alert flood sensor technology to detect excessive water discharges from the relief valve
Alert features available with an add-on sensor connection kit
All wetted valve components (test cocks, ball valve shutoffs, pipe nipples) made from Lead Free* stainless steel or plastic
Bolted on, top entry single access cover for ease of maintenance
Modular check construction featuring non-reversible checks with captured springs for simplified servicing
Top-mounted, vandal-resistant test cocks with covers for testing
True line sized check modules open further for dirt and debris to pass through the valve, reducing fouling problems
Check and relief valve seat replaceable without special tools for economical repair
Internal relief valve for reduced installation clearances, suitable for right and left hand installations
Quarter-turn full port resilient seated ball valve shutoffs with 304 stainless steel tee handles and PTFE seat blowout proof 304 stainless steel stems
Protective stainless steel wye strainer with a 20 mesh screen
Materials
Body: 316 stainless steel
Disc and Relief Valve: Silicone rubber
Check Seats: Replaceable polymer
Relief Valve Seat: Removable relief valve seats
Cover Bolts: Stainless steel
Shutoff Valve Stem: 304 Stainless Steel
Shutoff Valve Handle: 304 Stainless Steel Tee Handle
Strainer: Stainless Steel
An add-on connection kit (Watts RP/IS-009) is required to activate the flood sensor's alert features; without it, the sensor is a passive component that has no communication with any any other device.
Specifications
Size: 1 inch
Body Material: Investment Cast 316 Stainless Steel
Connection Type: NPT
Shutoff Valves: Quarter-Turn Ball Valves
Test Cocks: Top-Mounted, Vandal-Resistant EZ-TC
Sensor: Flood Detection
Wetted Surface Lead Content: Less than 0.25% by weight (Lead Free*)
Performance
Maximum Working Pressure: 175 psi (12.1 bar)
Temperature Range: 33°F - 180°F (0.5°C - 82°C) continuous
Materials
Body: 316 Stainless Steel
Disc and Relief Valve: Silicone Rubber
Check Seats: Replaceable Polymer
Relief Valve Seat: Removable Relief Valve Seats
Cover Bolts: Stainless Steel
Shutoff Valve Stem: 304 Stainless Steel
Shutoff Valve Handle: 304 Stainless Steel Tee Handle
Strainer: Stainless Steel Wye Strainer
Certificates & Approvals
ASSE Standard 1013
AWWA Standard C511-92
CSA B64.4
USC Manual 9th Edition
FAQs
What is the primary function of the Watts SS009 backflow preventer?
The primary function is to protect potable water supplies from contamination caused by backflow, specifically due to backsiphonage or backpressure from polluted sources.
What are the main applications for this backflow preventer?
This assembly is ideal for health hazard installations in industrial plants, medical/diagnostic equipment, reverse osmosis systems, carbonated beverage machines, breweries, paper and pulp industries, chemical plants, and aggressive atmospheres.
Does this assembly include a flood sensor?
Yes, it includes a flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve. An add-on connection kit is required to activate its alert features.
What material is the Watts SS009 constructed from?
The body and internal parts are made from Investment Cast 316 Stainless Steel, providing excellent corrosion resistance, especially in aggressive environments. Wetted components are Lead Free*.
What are the connection types for this 1-inch backflow preventer?
This assembly features NPT (National Pipe Taper) threaded inlet and outlet connections, compatible with 1-inch NPT threaded piping systems.
