Body Material: Investment Cast 316 Stainless Steel
Maximum Working Pressure: 175 PSI
Temperature Range: 33°F - 180°F continuous
Integrated SentryPlus Alert flood sensor
Lead Free* construction
NPT End Connections
ASSE 1013 Approved
Description

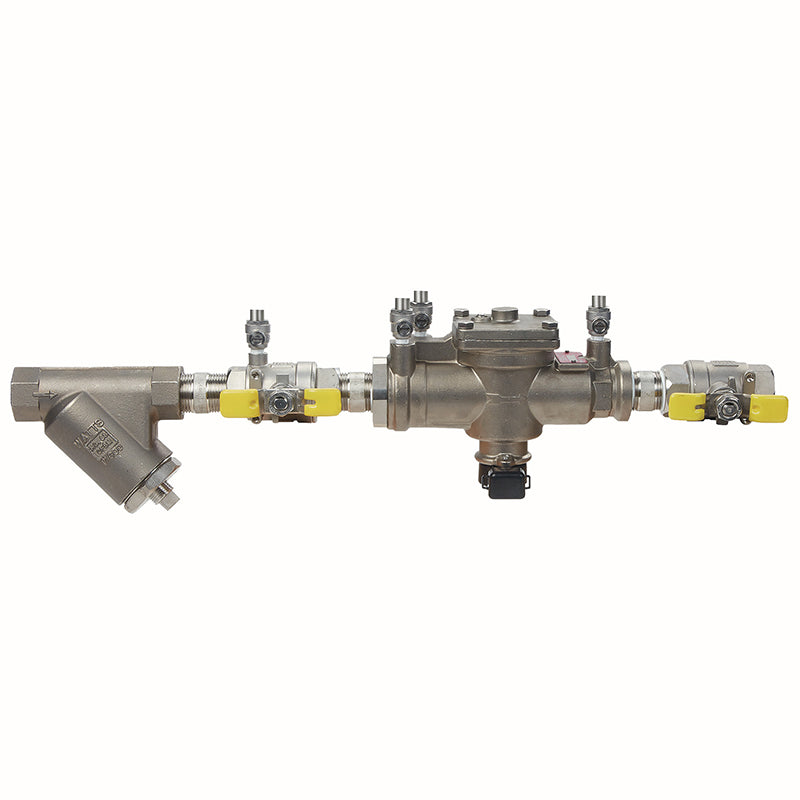

The Watts 1 inch SS009 series stainless steel reduced pressure zone backflow preventer assembly protects potable water supplies from pollution caused by backsiphonage or backpressure. Constructed from investment cast 316 stainless steel, it offers superior corrosion resistance and features Lead Free* wetted components. With NPT end connections and quarter-turn ball valve shutoffs, this assembly is suitable for industrial, medical, and aggressive environments. It handles up to 175 PSI and temperatures from 33-180°F. An integrated SentryPlus Alert flood sensor provides detection of excessive water discharge, which can be activated with an optional connection kit. Approved to ASSE 1013 standards. Item number 88004050.
Help Me Connect
Flood Sensor Connectivity
This assembly includes an integrated flood sensor on the relief valve.
To activate the sensor's alert features, an add-on sensor connection kit is required (sold separately).
Without a connection kit, the sensor is a passive component and cannot communicate with other devices.
Add-on sensor connection kits are available for both Building Management System (BMS) and cellular communications.
This 1 inch Watts SS009 series stainless steel reduced pressure zone backflow preventer assembly is designed to prevent the flow of polluted water from entering the potable water supply due to backsiphonage and/or backpressure.
It is ideal for typical applications in industrial plants, medical diagnostic equipment, reverse osmosis systems, carbonated beverage machines, brewing distilleries, paper and pulp industries, chemical plants, and aggressive atmospheres.
This assembly incorporates a flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve.
Construction & Design
Investment Cast 316 Stainless Steel Assembly for superior corrosion resistance.
All wetted valve components, including test cocks, ball valve shutoffs, and pipe nipples, are made from Lead Free* stainless steel or plastic.
Bolted on, top entry single access cover for ease of maintenance and servicing.
Modular check construction features non-reversible checks with captured springs for simplified servicing.
True line sized check modules open further to reduce fouling problems caused by dirt and debris.
Check and relief valve seats are replaceable without special tools.
Designed with an internal relief valve for both right and left-hand installations and reduced installation clearances.
Components & Connections
Features NPT inlet and outlet end connections.
Includes a protective stainless steel wye strainer with a 20 mesh screen.
Equipped with quarter-turn full port resilient seated ball valve shutoffs with tee handles.
Top-mounted, vandal-resistant test cocks with covers provide easy access for testing.
Composed of two in-line independent check valves, captured springs, replaceable check seats, and a hydraulically operated differential pressure internal relief valve.
Flood Detection
Incorporates a flood sensor on the relief valve for detection of excessive water discharge.
The flood sensor, when activated through an add-on sensor connection kit (available separately for BMS or cellular communications), can send an alert to notify users of potential flooding.
Warning: Use of the flood sensor is a notification aid and does not replace the need to comply with all required instructions, codes, and regulations related to installation, operation, and maintenance of this product, including the necessity of providing proper drainage in the event of a discharge. Watts is not responsible for the failure of alerts due to connectivity issues, power outages, or improper installation.
*The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight.
Specifications
Size: 1 inch
Body Material: Investment Cast 316 Stainless Steel
Strainer Material: Stainless Steel
End Connections: NPT
Shutoff Valves: Quarter-turn Ball Valves with Tee Handles
Temperature Range: 33°F - 180°F (0.5°C - 82°C) continuous
Approvals & Standards
ASSE Standard: 1013
AWWA Standard: C511-92
CSA Standard: B64.4
USC Manual: 9th Edition
FAQs
What is the primary function of this backflow preventer?
This 1 inch Watts SS009 series backflow preventer is designed to protect potable water supplies by preventing polluted water from flowing back into the system due to backsiphonage or backpressure.
What materials are used in the construction of this backflow preventer?
The body is made from investment cast 316 stainless steel for corrosion resistance. Wetted components, including test cocks and shutoff valves, are Lead Free* stainless steel or plastic. The strainer is also stainless steel.
Does this backflow preventer include a flood sensor?
Yes, it features an integrated SentryPlus Alert flood sensor on the relief valve to detect excessive water discharges. An add-on connection kit (sold separately) is required to activate its alert features.
What are the recommended applications for this specific model?
This assembly is ideal for various health hazard installations, including industrial plants, medical diagnostic equipment, reverse osmosis systems, carbonated beverage machines, breweries, paper and pulp industries, chemical plants, and aggressive atmospheres.
What is the maximum operating pressure and temperature range for this unit?
This backflow preventer has a maximum working pressure of 175 PSI (12.1 bar) and a continuous operating temperature range of 33°F to 180°F (0.5°C to 82°C).
