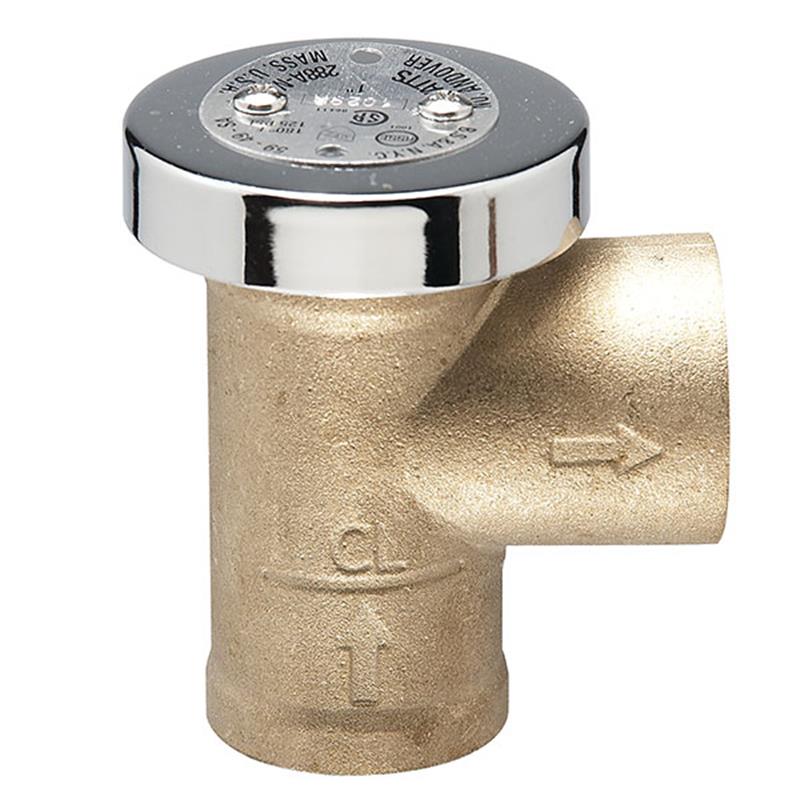

1" Watts LF288AM4 Atmospheric Vacuum Breaker

Item Number: 0792040
1 1
$455.25
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts
  • Size: 1 inch
  • Weight: 23.8 lb
  • Body Material: Lead Free Brass
  • Disc Material: Silicone
  • Maximum Working Pressure: 125 PSI
  • Maximum Temperature: 180°F (82°C)
  • Full Size Orifice for Maximum Flow
  • Prevents Backsiphonage of Contaminated Water
  • Suitable for Hot or Cold Water

Description

The Watts LF288AM4 1 inch Lead Free Atmospheric Vacuum Breaker is designed to prevent backsiphonage of non-potable water into a potable water supply. This device features a lead-free brass body and a chemical-resistant silicone seat disc, providing high heat and water hammer shock resistance. It has a full-size orifice for maximum flow and is suitable for low-flow, non-continuous hot or cold water applications. It must be installed at least 6 inches above downstream piping and is not intended for continuous pressure or protection against backpressure backflow. Item number 0792040.

Help Me Connect

Connections

  • The 1 inch Female NPT inlet connects to a 1 inch male NPT thread.
  • The 1 inch Female NPT outlet connects to a 1 inch male NPT thread for downstream piping.

Installation Location

  • This atmospheric vacuum breaker must be installed a minimum of 6 inches above the highest point of the downstream piping to function correctly.
  • Ensure there are no shutoff valves downstream of the device.
View full details

Additional Details

The Watts LF288AM4 1 inch Lead Free Atmospheric Vacuum Breaker is designed to prevent the backsiphonage of contaminated water into a potable water supply for hot or cold water applications.

This vacuum breaker is ideal for low-flow, non-continuous health hazard applications such as on laboratory equipment.

Features

  • Lead Free* brass body for potable water applications.
  • Full size orifice ensures maximum flow and pipe size capacity.
  • Lightweight disc assembly and atmospheric vent prevent spilling under all flow rates.
  • Chemical resistant silicone seat disc offers high heat and water hammer shock resistance.
  • Durable chrome hood.

Installation Notes

  • Must be installed 6 inches above the highest point on the downstream piping.
  • No shutoff valves should be installed downstream of this atmospheric vacuum breaker.
  • Important: This device is not designed for continuous pressure applications and should not be subjected to continuous pressure for more than twelve (12) hours per ASSE Std. 1001. It does not protect against backpressure backflow.

Specifications

  • Size: 1 inch
  • Body Material: Lead Free* Brass
  • Disc Material: Silicone
  • Inlet Connection: 1 inch Female NPT
  • Outlet Connection: 1 inch Female NPT
  • Maximum Working Pressure: 125 PSI (8.6 bar)
  • Maximum Temperature: 180°F (82°C)

Certificates & Approvals

  • ASSE Standard 1001
  • ANSI A112.1.1
  • CSA B64.1.1
  • IAPMO UPC
  • NSF/ANSI 372

FAQs

What is the primary function of the Watts LF288AM4 vacuum breaker?

Its primary function is to prevent backsiphonage, which is the reverse flow of contaminated water into a potable water supply, particularly in hot or cold water systems.

Is this vacuum breaker suitable for continuous pressure applications?

No, the Watts LF288AM4 atmospheric vacuum breaker is not designed for continuous pressure and should not be subjected to continuous pressure for more than twelve hours per ASSE Std. 1001.

What materials are used in the construction of this device?

The body is constructed from Lead Free* brass, and it features a durable chemical-resistant silicone seat disc for reliable performance.

Where should this atmospheric vacuum breaker be installed?

It must be installed a minimum of 6 inches above the highest point of the downstream piping. It is also crucial that no shutoff valves are placed downstream of the device.

Does this device protect against backpressure backflow?

No, atmospheric vacuum breakers are not designed, tested, or approved to protect against backpressure backflow. For backpressure protection, different types of backflow preventers are required.
