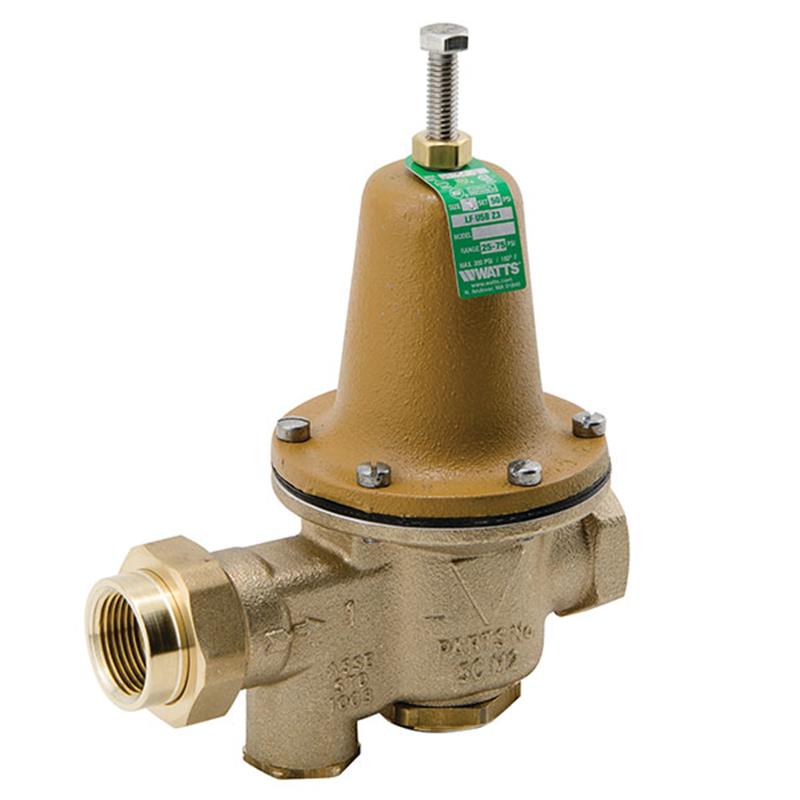

1" Watts LFU5B-Z3 Pressure Reducing Valve

Item Number: 0009154
1 1
$2,193.00
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts
  • Size: 1 inch
  • Weight: 31.6 lb
  • Body Material: Lead Free* Cast Copper Silicon Alloy
  • Connection Type: NPT Female Union Inlet x NPT Female Outlet
  • Maximum Working Pressure: 300 PSI
  • Adjustable Reduced Pressure Range: 25-75 PSI
  • Standard Reduced Pressure Setting: 50 PSI
  • Temperature Range: 33°F - 180°F
  • Features Bypass for Thermal Expansion Control

Description

The 1 inch Watts LFU5B-Z3 is a lead-free water pressure reducing valve designed for commercial, industrial, and residential plumbing systems. It effectively reduces high incoming water pressure, protecting components and reducing water consumption. Constructed from lead-free cast copper silicon alloy, this valve features an integral stainless steel strainer and a replaceable seat module for easy maintenance. It supports supply pressures up to 300 PSI and offers an adjustable reduced pressure range of 25-75 PSI, with a standard setting of 50 PSI. A built-in bypass feature manages thermal expansion pressure, ensuring system stability. Item number 0009154.

Help Me Connect

The 1 inch Watts LFU5B-Z3 Pressure Reducing Valve is designed for easy integration into plumbing systems using NPT threaded connections. The female union inlet connects to a 1 inch male NPT pipe or fitting, while the female NPT outlet connects to a 1 inch male NPT pipe or fitting. This configuration allows for straightforward installation and removal from the line.

View full details

Additional Details

This 1 inch Watts LFU5B-Z3 Lead Free Water Pressure Reducing Valve is designed to protect plumbing systems by reducing high incoming water pressure to a sensible level and reducing water consumption in commercial, industrial, and residential applications.

It features a lead free cast copper silicon alloy body and can be easily serviced without removing the valve from the line.

Features

  • Lead Free* cast copper silicon alloy body construction ensures compliance with lead-free installation requirements.
  • Bypass feature controls thermal expansion pressure.
  • Reinforced EPDM diaphragm is high-temperature resistant for hot water applications.
  • Integral stainless steel strainer is easily removable for cleaning.
  • Replaceable seat module allows for easy maintenance.
  • Serviceable in line for quick and easy part replacement without special tools.
  • Z3 sealed spring cage with corrosion-resistant stainless steel adjusting cage screws for accessible outdoor or pit installations.

Operation & Maintenance

  • This valve reduces incoming water supply pressure up to 300 psi (20.7 bar) to an adjustable range of 25-75 psi (172-517 kPa), with a standard factory setting of 50 psi (345 kPa).
  • The standard bypass feature allows water to flow back through the valve into the main supply when thermal expansion causes outlet side pressure to exceed the main supply pressure.
  • All parts are designed for quick and easy serviceability, often without needing to remove the valve from the line.

Specifications

  • Product Type: Water Pressure Reducing Valve
  • Series: LFU5B-Z3
  • Size: 1 inch
  • Body Material: Lead Free* cast copper silicon alloy
  • Connection Type: NPT threaded female union inlet x NPT female outlet
  • Maximum Working Pressure: 300 psi (20.7 bar)
  • Adjustable Reduced Pressure Range: 25-75 psi (172-517 kPa)
  • Standard Reduced Pressure Setting: 50 psi (345 kPa)
  • Temperature Range: 33°F - 180°F (0.5°C – 82°C)
  • Seat Material: Replaceable stainless steel
  • Integral Strainer Material: Stainless steel
  • Diaphragm Material: Reinforced EPDM
  • Valve Disc Material: EPDM
  • Yoke Material: Lead Free* cast copper silicon alloy
  • Lead Content: Wetted surface contains less than 0.25% lead by weight

Dimensions & Weight (Approximate)

  • Overall Length (A): 6 5/8 inch (168.2 mm)
  • Overall Length (A1): 6 3/4 inch (171.4 mm)
  • Overall Height (C): 7 3/8 inch (187.3 mm)
  • Distance from Bottom to Centerline (D): 2 inch (50.8 mm)
  • Width of Bonnet (G): 4 inch (101.6 mm)
  • NPT Engagement (Et): 9/16 inch (14.2 mm)
  • Female Sweat Socket Depth (Es): 7/8 inch (22.2 mm)
  • Overall Length with Optional Gauge (F*): 1 3/4 inch (45 mm)
  • Shipping Weight: 6 lbs (2.7 kg)

Certificates & Approvals

  • ASSE Standard 1003
  • ANSI A112.26.2
  • CSA Standard B356
  • IAPMO Listed
  • Southern Standard Plumbing Code
  • NSF/ANSI 61-G Certified

FAQs

What is the primary function of the Watts LFU5B-Z3 valve?

The primary function of the Watts LFU5B-Z3 valve is to reduce high incoming water pressure to a safe, sensible level. This protects plumbing system components from damage and helps to reduce water consumption.

What type of connections does the 1 inch LFU5B-Z3 valve use?

The 1 inch LFU5B-Z3 valve features an NPT threaded female union inlet and an NPT threaded female outlet. This allows for straightforward installation into standard plumbing systems.

What is the adjustable pressure range for this valve?

The adjustable reduced pressure range for this valve is 25-75 psi (172-517 kPa). The valve comes with a standard factory setting of 50 psi (345 kPa).

Is this valve suitable for hot water applications?

Yes, the Watts LFU5B-Z3 valve is suitable for hot water applications with a temperature range of 33°F to 180°F (0.5°C to 82°C) due to its high-temperature resistant reinforced EPDM diaphragm.

What does the bypass feature do?

The bypass feature allows water to flow back through the valve into the main supply. This helps to control pressures caused by thermal expansion on the outlet side of the valve when they exceed the main supply pressure.
