1" x 1/2" Lead Free Brass Bushing
Item Number: 15283
1
/
of
1
Regular price
$8.73
In Stock
(10)
Estimated transit time: 2 to 3 Business Days
Eligible for Express Shipping
Brand - Matco-Norca
Couldn't load pickup availability
- Material: Lead Free Brass (ASTM B584, Alloy C89833)
- Weight: 0.25 lb
- Connection: 1" Male NPT x 1/2" Female NPT
- Class Rating: 125 lbs.
- Thread Standard: ASME B1.20.1
- Overall Length: 0.75 inches
- Approved by: NSF 61, NSF 372
Description
Description

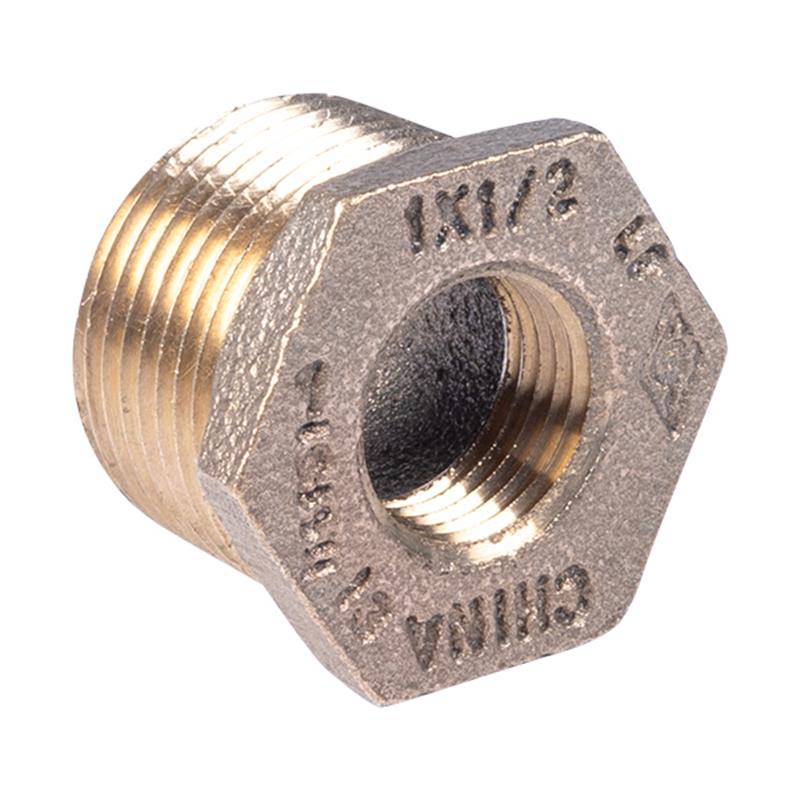

This 1" x 1/2" lead free brass bushing is designed to reduce pipe sizes in threaded connections. It features a 1-inch male NPT thread and a 1/2-inch female NPT thread, making it ideal for transitioning between different pipe diameters. Constructed from durable ASTM B584, Alloy C89833 lead-free brass, it is suitable for potable water applications. This Class 125 lbs. fitting meets ASME B1.20.1 thread standards and is approved by NSF 61 and 372. Its hexagonal body ensures easy wrench installation for reliable performance.
Help Me Connect
Help Me Connect
This 1" x 1/2" Lead Free Brass Bushing simplifies pipe size transitions.
- The 1-inch male NPT thread on the larger end is designed to screw into a 1-inch female NPT connection.
- The 1/2-inch female NPT thread on the smaller end is designed to accept a 1/2-inch male NPT pipe or fitting.
It effectively reduces the flow path from a 1-inch line to a 1/2-inch line.

Collapsible content
Additional Details
This is a 1 x 1/2 lead free brass bushing, designed to reduce the size of a threaded connection in plumbing and industrial applications.
Connections
- The male end connects to a 1 inch female NPT thread.
- The female end connects to a 1/2 inch male NPT thread.
Features
- Constructed from lead free brass (ASTM B584, Alloy C89833) for durability and potable water safety.
- Features a hexagonal body for easy installation with a wrench.
- Adheres to ASME B16.15 and B16.18 dimensions.
- Threads conform to ASME B1.20.1 standard.
- Rated as a Class 125 lbs. fitting.
Specifications
- Body Material: Lead Free Brass (ASTM B584, Alloy C89833)
- Connection Size (Male): 1 inch
- Connection Size (Female): 1/2 inch
- Class Rating: 125 lbs.
- Thread Standard: ASME B1.20.1
- Overall Length (A): 0.75 inches
- Thread Engagement (B): 0.25 inches
- Hex Width (C): 1.42 inches
Certificates & Approvals
- NSF 61
- NSF 372
FAQs
What is the primary use of this 1" x 1/2" lead free brass bushing?
This bushing is primarily used to reduce the size of a threaded connection, allowing a 1-inch female NPT pipe to connect to a 1/2-inch male NPT pipe or fitting.
What material is this fitting made from?
It is made from lead free brass, specifically ASTM B584, Alloy C89833, ensuring durability and safety for potable water applications.
What are the thread specifications for this bushing?
The threads conform to the ASME B1.20.1 standard, which specifies pipe threads for general purpose applications.
What certifications or approvals does this brass bushing hold?
This lead free brass bushing is approved by NSF 61 and NSF 372, indicating compliance with standards for drinking water system components and lead content requirements.
What does 'Class 125 lbs.' mean for this fitting?
The 'Class 125 lbs.' rating indicates the pressure class or strength rating of the fitting, signifying its suitability for specific pressure applications within a system.
