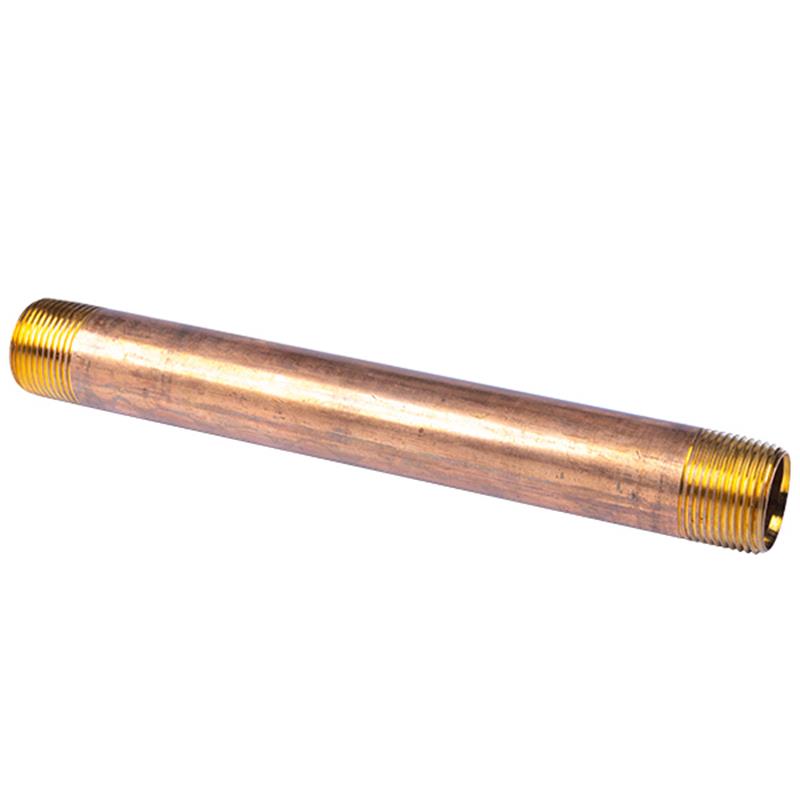

1" x 10" Lead Free Brass Nipple

Item Number: 1221
Skip to product information
1 of 1
Regular price $31.91
In Stock (10)
Estimated transit time: 2 to 3 Business Days Eligible for Express Shipping

Brand - Matco-Norca

  • Pipe Size: 1 inch
  • Weight: 1.5 lb
  • Overall Length: 10 inch
  • Material: Lead Free Brass
  • Pipe Schedule: Schedule 40
  • Threads conform to ASME B1.20.1
  • NSF/ANSI61, NSF/ANSI372, & CRN certified
  • Durable construction for reliable performance
  • Conforms to ASTM B43 and ASTM B687 standards

Description

This 1 inch x 10 inch lead free brass nipple is a robust component for connecting piping in various plumbing and industrial systems. Constructed from Schedule 40 lead free brass, it meets ASTM B43 material and ASTM B687 dimension standards. Its threads conform to ASME B1.20.1, ensuring secure connections. This nipple is NSF/ANSI61, NSF/ANSI372, and CRN certified, guaranteeing compliance with strict safety and performance requirements for potable water applications. Its durable design provides reliable, long-lasting performance.

Help Me Connect

Connections

  • This nipple features NPT (National Pipe Taper) threads on both ends, conforming to ASME B1.20.1 standard.
  • Designed to connect to other 1-inch female NPT threaded components, fittings, or pipes.
View full details

Collapsible content

Additional Details

This is a 1 inch x 10 inch lead free brass nipple, designed for connecting piping components in various plumbing and industrial applications.
Key Features
  • Manufactured from lead free brass conforming to ASTM B43 standards.
  • Designed to Schedule 40 wall thickness for durability.
  • Dimensions and ends conform to ASTM B687.
  • Threads conform to ASME B1.20.1 ensuring proper fitment.
  • Meets NSF/ANSI61, NSF/ANSI372, and CRN requirements for safe and reliable use.

Specifications

  • Pipe Size: 1 inch
  • Overall Length (L): 10 inch
  • Material: Lead Free Brass
  • Pipe Schedule: Schedule 40
  • Thread Standard: ASME B1.20.1
  • Nominal Outside Diameter (B): 1.315 inch
  • Nominal Inside Diameter (A): 1.063 inch
  • Thread Length (L1): 0.985 inch
  • Minimum Wall Thickness (T): 0.119 inch

Certificates & Approvals

  • Lead Free Brass: ASTM B43
  • Dimensions & Ends: ASTM B687
  • Threads: ASME B1.20.1
  • Certifications: NSF/ANSI61, NSF/ANSI372, CRN

FAQs

What is the material of this nipple?

This nipple is made from durable, lead free brass, ensuring safety for potable water applications and resistance to corrosion.

What are the exact dimensions of this nipple?

This is a 1 inch nominal pipe size nipple with an overall length of 10 inches. It features a nominal outside diameter (B) of 1.315 inches and a nominal inside diameter (A) of 1.063 inches.

Is this product suitable for potable water systems?

Yes, this brass nipple is lead free and meets NSF/ANSI61 and NSF/ANSI372 standards, making it safe and compliant for use in drinking water applications.

What type of threads does this nipple have?

The nipple features NPT (National Pipe Taper) threads on both ends, which conform to the ASME B1.20.1 standard for secure and leak-tight connections.

What is the pipe schedule of this nipple?

This brass nipple is designed to Schedule 40 wall thickness, providing robust durability and strength for various piping systems.
