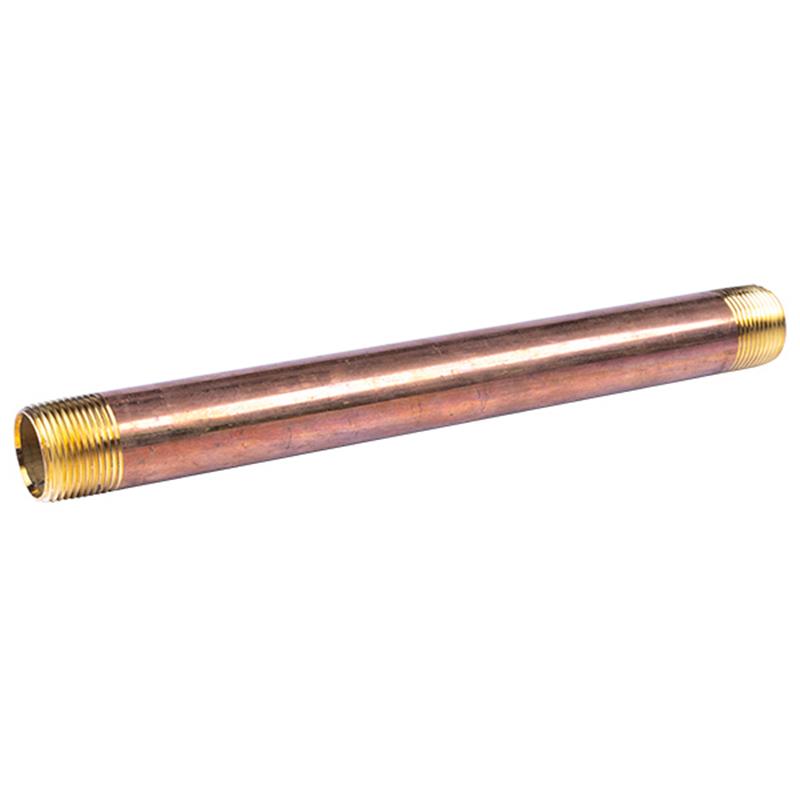

1" x 12" Lead Free Brass Nipple
Item Number: 2596
1
/
of
1
Regular price
$38.15
In Stock
(10)
Estimated transit time: 2 to 3 Business Days
Eligible for Express Shipping
Brand - Matco-Norca
Couldn't load pickup availability
- Nominal Size: 1 inch
- Weight: 1.8 lb
- Overall Length: 12 inches
- Material: Lead Free Brass
- Schedule: 40 Pipe Nipple
- Thread Standard: ASME B1.20.1
- Meets NSF/ANSI 61, NSF/ANSI 372, CRN
Description
Description
This 1 inch x 12 inch Schedule 40 lead free brass nipple is ideal for a wide range of plumbing and industrial applications. Constructed from ASTM B43 compliant lead free brass, it ensures safety and durability. The nipple features ASME B1.20.1 conforming threads for secure installations and meets ASTM B687 for precise dimensions. Importantly, it is certified to NSF/ANSI 61, NSF/ANSI 372, and CRN standards, making it suitable for potable water systems and approved for use in Canada. Available in a 12-inch length, it provides reliable performance.

Collapsible content
Additional Details
This is a 1 inch x 12 inch lead free brass nipple designed for various plumbing and industrial fluid transfer applications. It features male NPT threads on both ends for secure connections.
Construction & Compliance
- Manufactured from lead free brass conforming to ASTM B43.
- Nipple dimensions and ends conform to ASTM B687 standards.
- Threads conform to ASME B1.20.1 for reliable connections.
Specifications
- Body Material: Lead Free Brass
- Nominal Size: 1 inch
- Overall Length (L): 12 inches
- Thread Engagement (L1): 0.985 inches
- Minimum Wall Thickness (Tmin.): 0.119 inches
- Schedule: 40
Certificates & Approvals
- Meets NSF/ANSI 61
- Meets NSF/ANSI 372
- Meets CRN
FAQs
What material is this nipple made from?
This nipple is made from lead free brass that conforms to ASTM B43 standards.
What are the dimensions of this brass nipple?
This is a 1-inch nominal size nipple with an overall length of 12 inches. It is a Schedule 40 pipe nipple.
What kind of threads does this nipple have?
The nipple features male threads on both ends that conform to the ASME B1.20.1 standard, which typically indicates NPT (National Pipe Taper) threads.
Is this brass nipple safe for drinking water applications?
Yes, this nipple is certified to meet NSF/ANSI 61 and NSF/ANSI 372 standards, making it suitable for potable water applications.
What does the CRN certification mean?
CRN (Canadian Registration Number) certification indicates that the design of this product has been registered and accepted for use in various Canadian provinces and territories, meeting their safety and quality standards.
