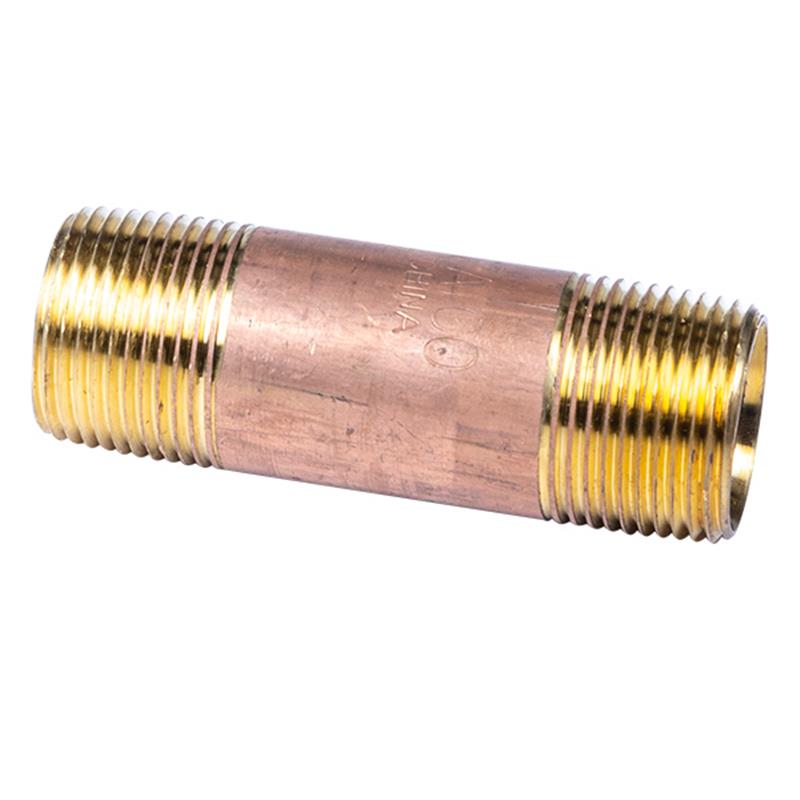

1" x 3" Lead Free Brass Nipple
Item Number: 1845
1
/
of
1
Regular price
$10.10
In Stock
(10)
Estimated transit time: 2 to 5 Business Days
Eligible for Express Shipping
Brand - Matco-Norca
Couldn't load pickup availability
- Material: Lead Free Brass
- Weight: 0.45 lb
- Nominal Pipe Size: 1 inch
- Length: 3 inches
- Schedule: 40
- Thread Type: Male NPT
- Meets NSF/ANSI61, NSF/ANSI372 & CRN
- Conforms to ASTM B43
- Conforms to ASTM B687, ASME B1.20.1
Description
Description
The Matco-Norca 1" x 3" Lead Free Brass Nipple is a durable Schedule 40 pipe fitting engineered for connecting or extending piping systems. Constructed from lead-free brass, it conforms to ASTM B43, ASTM B687, and ASME B1.20.1 standards, ensuring reliable performance. This nipple features 1-inch male NPT threads on both ends for secure connections. It is certified to meet NSF/ANSI61, NSF/ANSI372, and CRN standards, making it suitable for a wide range of applications, including potable water systems.
Help Me Connect
Help Me Connect
Connections
- This nipple features male NPT (National Pipe Taper) threads on both ends, designed to connect with female NPT threaded fittings or pipes of the corresponding 1 inch size.

Collapsible content
Additional Details
The 1" x 3" Lead Free Brass Nipple is a Schedule 40 pipe fitting designed for extending or connecting piping runs and fittings in various applications.
Construction & Standards
- Manufactured from Lead Free Brass conforming to ASTM B43.
- Dimensions and ends conform to ASTM B687.
- Threads conform to ASME B1.20.1.
- Features a Schedule 40 wall thickness for durability.
Specifications
- Nominal Pipe Size: 1 inch
- Length: 3 inches
- Thread Type: NPT (Male)
- Schedule: 40
- Material: Lead Free Brass
- Overall Length (L): 3 inches
- Outer Diameter (Pipe Body - A): 1.063 inches
- Outer Diameter (Threaded Ends - B): 1.315 inches
- Thread Engagement Length (L1): 0.985 inches
- Minimum Wall Thickness (T(min.)): 0.119 inches
Certificates & Approvals
- Meets NSF/ANSI61
- Meets NSF/ANSI372
- Meets CRN
FAQs
What material is this nipple made from?
This nipple is constructed from lead-free brass, ensuring compliance with health and safety standards for water systems.
What are the dimensions of this nipple?
This is a 1-inch nominal pipe size nipple with an overall length of 3 inches. It features a Schedule 40 wall thickness.
What type of threads does this nipple feature?
The nipple is equipped with male NPT (National Pipe Taper) threads on both ends, designed for compatibility with female NPT connections.
What certifications does this brass nipple hold?
This nipple meets NSF/ANSI61, NSF/ANSI372, and CRN standards, in addition to conforming to ASTM B43, ASTM B687, and ASME B1.20.1 specifications.
What does "Schedule 40" mean for this nipple?
"Schedule 40" refers to the wall thickness of the pipe nipple, indicating a standard thickness suitable for common pressure applications in various plumbing and industrial systems.
