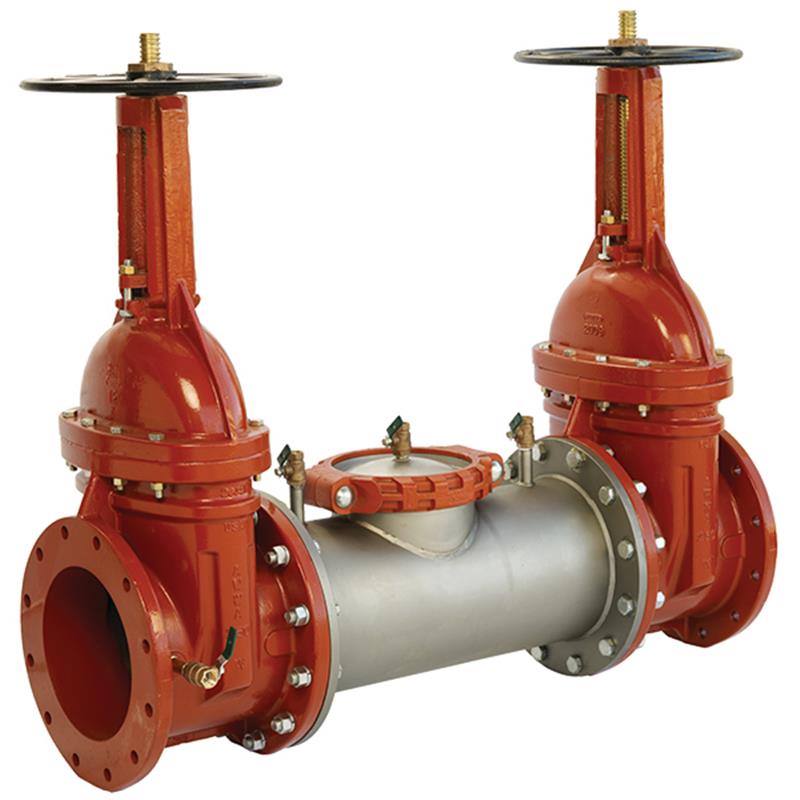

This 10 inch Ames Fire & Waterworks Series 2000SS Double Check Valve Backflow Preventer Assembly is engineered to prevent polluted water from entering potable systems. Featuring a durable 300 Series stainless steel body and Noryl® check assembly, it offers superior corrosion resistance and a lead-free wetted surface. The compact, modular design with cam-check valves ensures low head loss and easy maintenance without special tools. Approved for non-health hazard applications, it can be installed horizontally or vertically. It includes domestic OSY shutoffs and an optional integrated supervisory switch, making it suitable for continuous pressure service at service line cross-connections. Item number 0692774.
This 10 inch lead free double check valve backflow preventer assembly is designed to prevent the reverse flow of polluted water from entering the potable water system, effectively safeguarding against backsiphonage and backpressure in non-health hazard installations.
Key Features
Features a stainless steel body and cam-check assembly for low head loss and long-term corrosion protection.
Its compact, modular design with short lay length is ideally suited for retrofit installations and allows for installation in smaller vaults and enclosures.
Equipped with domestic outside stem and yoke (OSY) resilient seated gate valves.
Includes an option for an integrated supervisory switch on each gate valve of the OS&Y model.
Construction & Maintenance
The main valve body and all internal metal parts are constructed from 300 Series stainless steel, ensuring maximum strength and reduced weight compared to competitive designs.
The check assembly uses Noryl® material.
The wetted surface contains less than 0.25% lead by weight, making it lead free.
Maintenance is simplified with a single top access cover and two-bolt grooved style coupling, requiring no special tools for servicing.
Inquire with governing authorities for local installation requirements and thoroughly read all installation and safety information before use.
Specifications
Assembly Size: 10 inch
Main Valve Body Material: 300 Series Stainless Steel
Internal Metal Parts Material: 300 Series Stainless Steel
Check Assembly Material: Noryl®
Maximum Working Pressure: 175 PSI (12.06 bar)
Temperature Range: 33°F - 110°F (5°C - 43°C)
Lead Content: Less than 0.25% by weight (wetted surface)
Gate Valve Type: Outside Stem and Yoke (OSY) Resilient Seated
Certificates & Approvals
AWWA C510-92
CSA B64.5
ASSE 1015 (for horizontal or vertical "flow up" position)
CULUS Classified
FM Approved (OSY ONLY)
UL Certified (Integrated supervisory switch for OSY model)
FAQs
What is the primary purpose of this backflow preventer?
The 10 inch 2000SS-DOSY Double Check Valve Backflow Preventer Assembly is designed to prevent the reverse flow of non-potable, polluted water from entering a potable water supply system due to backsiphonage or backpressure.
What type of applications is this assembly suitable for?
This assembly is ideal for continuous pressure service and protection at cross-connections identified as non-health hazards, and for safeguarding against other non-toxic contaminants found at the service line entrance.
What materials are used in the construction of this backflow preventer?
The main valve body and all internal metal parts are constructed from 300 Series stainless steel for durability and corrosion resistance. The check assembly uses Noryl® material, and the wetted surface contains less than 0.25% lead by weight.
Can this backflow preventer be installed in any orientation?
Yes, this assembly is approved for installation in both horizontal and vertical "flow up" positions, in accordance with ASSE 1015 standards and the direction of the flow arrow on the assembly.
What is the maximum operating pressure and temperature range for this device?
The maximum working pressure for this 10 inch assembly is 175 PSI (12.06 bar). It is designed to operate within a temperature range of 33°F to 110°F (5°C to 43°C).
