Integrated OS&Y Flanged Shutoffs with Supervisory Switches
Lead Free Construction
ASSE 1015 and UL Certified
Low Head Loss Design
Description

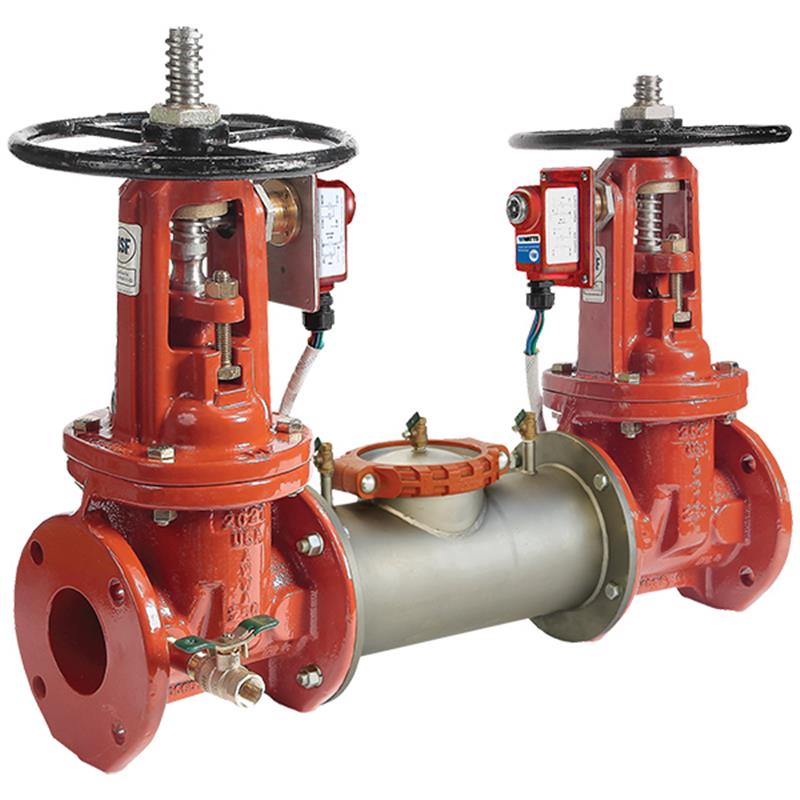

This 10 inch Ames Fire & Waterworks Series 2000SS Double Check Valve Backflow Preventer Assembly is designed to prevent reverse flow of polluted water into potable water systems, suitable for non-health hazard applications. It features a lightweight, lead-free 300 Series stainless steel body for superior corrosion resistance and reduced installation costs. The assembly includes integrated OS&Y flanged shutoff valves with UL Certified supervisory switches and spring-loaded cam-check valves for low head loss. Approved for horizontal and vertical flow-up installations, it offers easy maintenance with a single top access cover. Maximum working pressure is 175 psi. Item number 88003080.
This 10 inch **lead free** double check valve backflow preventer assembly is designed to prevent the reverse flow of polluted water from entering the potable water system. It is suitable for non-health hazard installations and features a compact, short lay length design with a single access cover for easy maintenance.
Features
**Cam-Check Assembly** provides **low head loss**
**Short lay length** ideal for **retrofit installations**
**Lightweight stainless steel body** reduces installation and shipping costs
**Stainless steel construction** provides long term **corrosion protection** and maximum strength
**Single top access cover** with two-bolt grooved style coupling for **ease of maintenance**
No special tools required for servicing
**Compact construction** allows for smaller vaults and enclosures
May be installed in **horizontal** or **vertical "flow up" position** (ASSE Only)
Includes an **integrated supervisory switch** on each gate valve of the **OS&Y model**
Construction
Main valve body manufactured from **300 Series stainless steel**
Contains two independently operated **spring loaded cam-check valves**
Modular cam-check includes a **stainless steel spring and cam-arm**, **rubber faced disc**, and a **replaceable seat**
Integrated supervisory tamper switch includes **two SPDT switches** and sends a tamper signal when the valve is closed or switch is removed
Wetted surfaces contain less than 0.25% lead by weight
Specifications
Main Valve Body Material: 300 Series stainless steel
Internal Metal Parts Material: 300 Series stainless steel
Check Assembly Material: Noryl®
Maximum Working Pressure: 175 psi (12.06 bar)
Temperature Range: 33°F - 110°F (5°C - 43°C)
Connection Type: Flanged
Gate Valve Type: OS&Y (Outside Stem and Yoke)
Lead Free: Yes (wetted surfaces contain less than 0.25% lead by weight)
Certificates & Approvals
ASSE 1015
AWWA C510-92
CSA B64.5
CULUS (OS&Y only)
FM Approved (OS&Y only)
UL Certified (Supervisory Switch, Safety Signaling, Control No. 3L38)
FAQs
What is the primary function of this backflow preventer?
This 10 inch Ames Fire & Waterworks 2000SS Double Check Valve Assembly is designed to prevent the reverse flow of polluted water from entering a potable water system, protecting it from contamination due to backsiphonage or backpressure.
What applications is this backflow preventer suitable for?
It is ideal for non-health hazard installations, protecting against contaminants at the service line entrance and other cross-connections where permitted by local authorities.
Is this product lead-free?
Yes, the wetted surfaces of this backflow preventer contain less than 0.25% lead by weight, making it a lead-free solution.
What is the maximum operating pressure and temperature range for this assembly?
The maximum working pressure is 175 psi (12.06 bar), and it operates within a temperature range of 33°F to 110°F (5°C to 43°C).
Does this model include a supervisory switch?
Yes, this 2000SS-OSY-TS model includes integrated UL Certified supervisory switches on each OS&Y gate valve, designed to signal if the valve is closing or removed.
