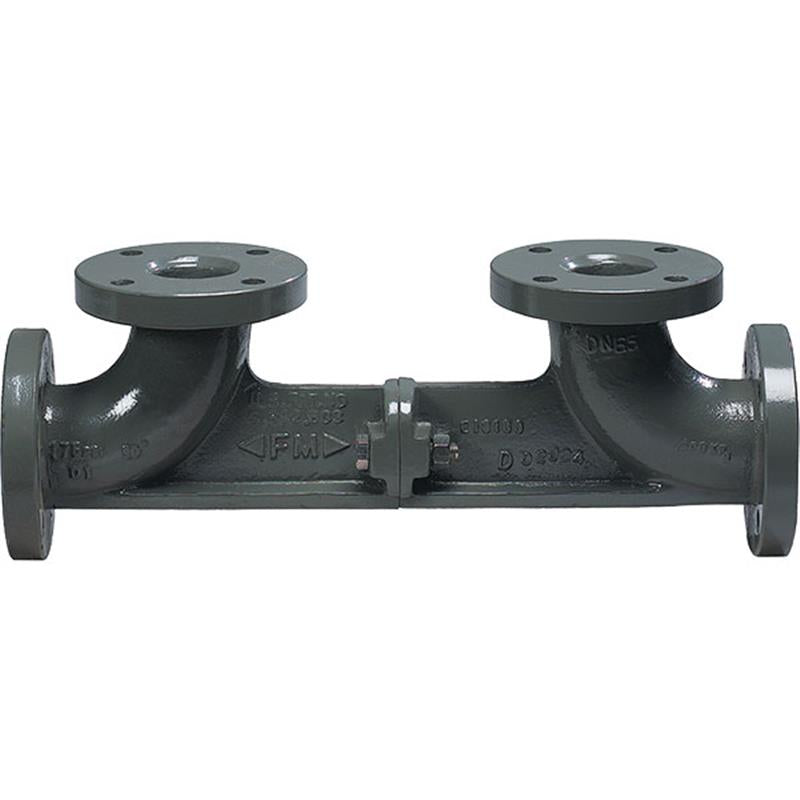

10 611-Flange x Flange

Item Number: 905209
1 1
$3,551.25
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Size: 10 inch (250mm)
  • Weight: 430.0 lb
  • Connection Type: Flange x Flange
  • Body Material: Ductile iron A536 GR 65-45-12
  • Coating: Fusion epoxy coated AWWA C550
  • Maximum Working Pressure: 175 PSI
  • Temperature Range: 32°F to 140°F
  • Eliminates need for thrust blocks
  • Lead Free* construction

Description

The FEBCO 611 Series valve setter with 10 inch flange by flange connections is constructed from fusion epoxy coated ductile iron. Designed to facilitate the installation of "N" series backflow prevention valves, it features integral ductile iron support between elbows, eliminating the need for thrust blocks. This unit is corrosion resistant, operates up to 175 PSI, and is compliant with Lead Free* installation requirements, ensuring wetted surfaces contain less than 0.25% lead. It is suitable for temperatures from 32°F to 140°F.

Help Me Connect

Compatibility and Connections

  • This valve setter is designed to augment the installation of FEBCO "N" series backflow prevention valves, specifically mentioned for MasterSeries LF870V/LF876VST/LF880V models.
  • The unit features 10 inch flange x flange connections on both ends, compliant with ANSI AWWA C153 A21.53-88.
  • Ensure that the mating connections on your backflow preventer and piping are also 10 inch flanged to ensure proper fit.
  • Mechanical joint restraint devices may be used at pipe connections, depending on local conditions.
View full details

Additional Details

The FEBCO 611 Series Valve Setter with 10 inch flange x flange connections is engineered to facilitate the installation of "N" series backflow prevention valves.

Constructed from fusion epoxy coated ductile iron, this valve setter features integral ductile iron support between elbows to effectively transfer thrust downstream, thereby eliminating the need for separate thrust blocks between elbows. It complies with Lead Free* installation requirements, with wetted surfaces containing less than 0.25% lead by weight.

Features

  • Corrosion resistant fusion epoxy coated body.
  • Eliminates the need for thrust blocks or other restraints at the point of installation.
  • Flanges are compliant with ANSI AWWA C153 A21.53-88.
  • Integral ductile iron support transfers thrust downstream.
  • Constructed with Lead Free* materials.

Materials

  • Body: Ductile iron A536 GR 65-45-12.
  • Coating: Fusion epoxy coated internal and external AWWA C550.
  • Bolts & Nuts: Stainless steel (for center joint).

Note: Mechanical joint accessories, flange bolts, and gaskets required for external connections are not included.

Specifications

  • Series: FEBCO 611
  • Product Type: Valve Setter
  • Size: 10 inch (250mm)
  • Connection Type: Flange x Flange
  • Body Material: Ductile iron A536 GR 65-45-12
  • Coating: Fusion epoxy coated internal and external AWWA C550
  • Bolts & Nuts Material: Stainless steel
  • Maximum Working Pressure: 175 PSI (12.1 bar)
  • Temperature Range: 32°F to 140°F (0°C to 60°C)

Certificates & Approvals

  • Flanges: ANSI AWWA C153 A21.53-88
  • Lead Content: Wetted surface contains less than 0.25% lead by weight

FAQs

What is the primary purpose of the FEBCO 611 Series valve setter?

The primary purpose of this valve setter is to augment the installation of "N" series backflow prevention valves, providing integral support and eliminating the need for thrust blocks between elbows.

What are the connection types for this 10-inch valve setter?

This 10-inch valve setter features flange by flange connections on both ends, designed to be compatible with similarly flanged piping and backflow prevention devices.

What materials are used in the construction of the FEBCO 611 valve setter?

The body is made from ductile iron A536 GR 65-45-12, with internal and external fusion epoxy coating (AWWA C550). The bolts and nuts for the center joint are stainless steel.

What are the maximum operating pressure and temperature limits for this valve setter?

This valve setter has a maximum working pressure of 175 PSI (12.1 bar) and can operate within a temperature range of 32°F to 140°F (0°C to 60°C).

Does this product include all necessary installation hardware?

No, mechanical joint accessories, flange bolts, and gaskets required for connecting the valve setter to external piping are not included, except for the bolts and nuts of the center joint assembly itself.
