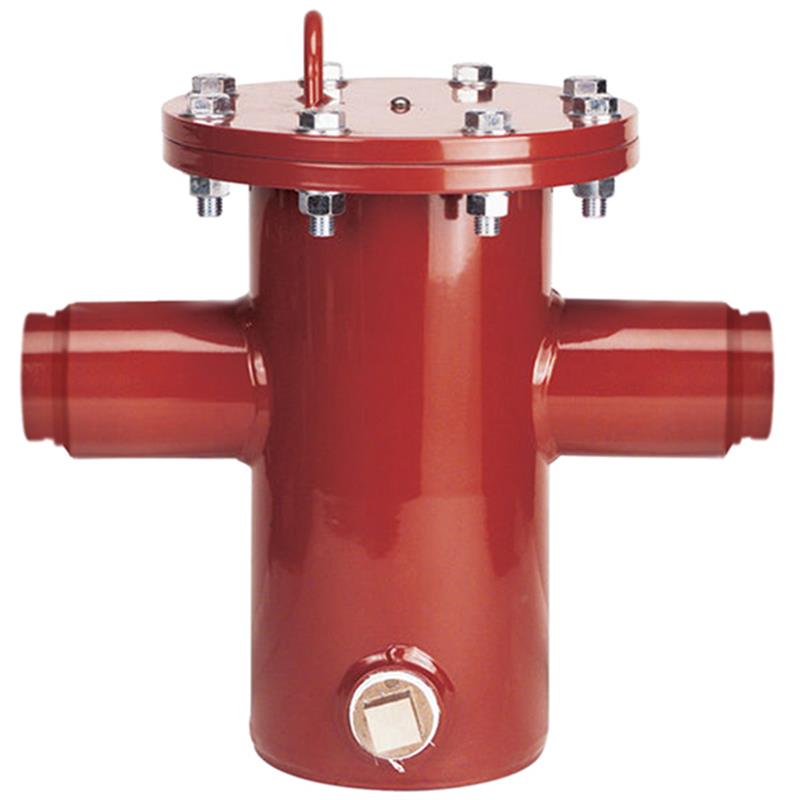

10 7002-2-Clean Outs-Flange x Flange

Item Number: 0691005
1 1
$19,163.25
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Nominal Size: 10 inch (250mm)
  • Weight: 580.0 lb
  • Maximum Working Pressure: 175 psi
  • Body Material: Epoxy coated steel
  • Strainer Element: 304 stainless steel with 0.25 inch perforations
  • Connections: Flanged, AWWA Class "D"
  • Clean-Out Ports: Two
  • Certifications: UL Listed, FM Approved
  • Prevents clogging in water spray systems

Description

This 10 inch Ames Fire & Waterworks Series 7002 fire service basket strainer is specifically designed to protect water spray systems in non-potable applications from clogging. Featuring a durable epoxy-coated steel body and flanged connections, it effectively traps foreign material 1/4 inch or larger. The strainer includes two clean out ports and a 304 stainless steel strainer element for easy maintenance and reliable performance. With a maximum working pressure of 175 psi and UL Listed, FM Approved certifications, it ensures robust debris protection for fire safety systems. Item number 0691005.

Help Me Connect

Connections

  • This 10 inch strainer connects via AWWA Class "D" flanged ends to integrate into fire service piping systems.
  • It is typically installed upstream of critical devices like meters, backflow preventers (detector check valves), and flow alarms to protect them from large particles and debris.

System Compatibility

Designed for use in non-potable water spray systems, the strainer helps prevent clogging of sprinkler heads due to foreign material 1/4 inch diameter or larger.

View full details

Additional Details

This 10 inch Ames Fire & Waterworks Series 7002 fire service strainer is designed for non-potable water spray systems to protect against clogging from large particles.

It features an epoxy-coated steel body and flanged connections, equipped with two clean out ports for easy maintenance.

Key Features

  • Epoxy coated fabricated steel body for durability
  • Flanged connections for secure installation
  • Equipped with two clean out ports
  • Large solids trap minimizes screen blockage
  • Strainer element made from 304 stainless steel with 0.25 inch diameter perforations
  • Designed to permit removal of the filter for replacement and repair without removing the body from the line

WARNING: It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing standard material product, consult your local water authority, building and plumbing codes.

Specifications

  • Product Series: 7002
  • Nominal Size: 10 inch (250mm)
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Water Temperature: Up to 140°F (60°C)

Materials

  • Body & Cover: Fusion-bonded epoxy coated steel
  • Screen: 304 stainless steel, 0.25 inch diameter perforation
  • Clean-Out Plug: Brass or Bronze
  • Flanges: AWWA Class "D"

Performance

  • Filter Plugged Withstand: 125 psi (8.6 bar)
  • Friction Loss with Foreign Materials: Not to exceed 10 psi (69 kPa)
  • Friction Loss with Clean Filter: Not to exceed 3 psi (21 kPa) at rated flow
  • Open Screen Area: At least 6 times greater than nominal pipe size open area

Certificates & Approvals

  • CULUS Listed 321
  • FM Approved Class 5551

FAQs

What is the primary use of this 10 inch fire service strainer?

This strainer is primarily used in non-potable water spray systems to protect against clogging caused by particles that could foul sprinkler heads or damage system devices.

What type of connections does this strainer have?

This 10 inch strainer features AWWA Class "D" flanged connections for secure integration into fire service piping systems.

What is the maximum working pressure and temperature for this strainer?

The maximum working pressure for this strainer is 175 psi (12.1 bar), and it can handle water temperatures up to 140°F (60°C).

How many clean out ports does this model have?

This Series 7002 strainer is equipped with two clean out ports, facilitating easy maintenance and removal of trapped debris.

What material is the strainer body and screen made from?

The strainer body and cover are made from fusion-bonded epoxy coated steel, while the strainer element is 304 stainless steel with 0.25 inch diameter perforations.
