10 758A

Item Number: 4330
1 1
$7,925.99
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco

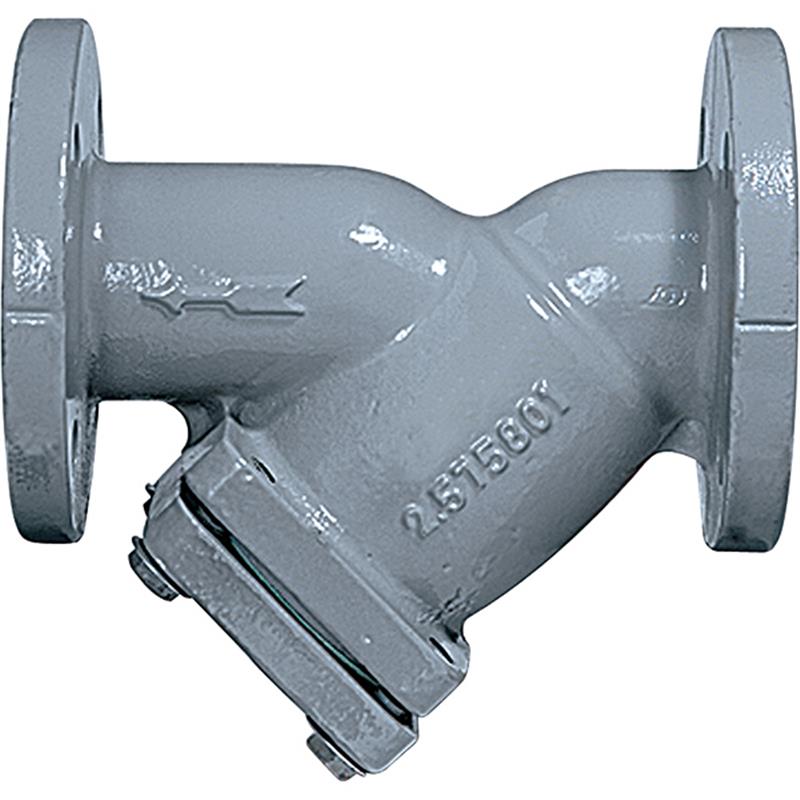

  • 10 inch Cast Iron Y-Strainer
  • Weight: 387.0 lb
  • Body Material: Cast Iron (ASTM A126-B)
  • Screen Material: 304 Stainless Steel (1/8" perforated)
  • Maximum Operating Pressure: 200 PSI Non-Shock
  • Maximum Operating Temperature: 150°F
  • Connection Type: ASME/ANSI Flanged
  • Unplugged NPT blowoff connections on cover
  • Recessed screen seats for accurate alignment

Description

The FEBCO Series 758A 10 inch cast iron Y-strainer protects valuable equipment in water piping systems from damage caused by foreign material. Featuring a robust cast iron body and a 304 stainless steel screen with 1/8 inch perforations, this strainer is built for durability. It is rated for non-shock operating pressures up to 200 PSI at 150°F and utilizes ASME/ANSI flanged connections for secure installation. Unplugged NPT blowoff connections simplify maintenance. The product is suitable for non-health hazard applications, ensuring reliable system protection. Item number 4330.

Help Me Connect

Connections

  • The main pipeline connections are ASME/ANSI flanged end connections, suitable for integrating into corresponding flanged piping systems.
  • The blowoff port on the cover is equipped with NPT connections, allowing for standard threaded pipe or valve attachment to facilitate debris removal.
View full details

Additional Details

The FEBCO Series 758A "Y" strainer is designed for installation in water piping systems to protect expensive equipment such as backflow preventers from damage or failure that can be caused by foreign material in the pipeline.

Features

  • Features an epoxy coated body for longevity.
  • Unplugged NPT blowoff connections are situated on the cover.
  • Recessed screen seats assure accurate screen alignment.
  • Screens are made from perforated 304 stainless steel.

Materials

  • The body is constructed from Cast Iron (ASTM A126-B).
  • The cap/cover is made of Carbon Steel (ASTM A36).
  • Includes a non-asbestos gasket.
  • The strainer screen is 304 Stainless Steel with 1/8 inch perforations for the 10 inch size.

The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight.

Specifications

  • Model: Series 758A
  • Nominal Pipe Size: 10 inch (250mm)
  • Body Material: Cast Iron, ASTM A126-B
  • Cap/Cover Material: Carbon Steel, ASTM A36
  • Gasket Material: Non-asbestos
  • Screen Material: 304 Stainless Steel
  • Screen Perforation: 1/8 inch (for 10 inch size)
  • Maximum Operating Pressure (Non-Shock): 200 PSI (13.8 bar)
  • Maximum Operating Temperature: 150°F (60°C)
  • Connection Type: ASME/ANSI Flanged
  • Overall Length (A): 26 inch (660mm)
  • Body Width (B): 18.5 inch (470mm)
  • Blowoff Connection (C): 2 inch NPT (50mm)
  • Approximate Weight: 370 lbs (168 kg)
  • Application: Non-Health Hazard Water Piping Systems

FAQs

What is the primary function of the FEBCO Series 758A Y-strainer?

The primary function of this Y-strainer is to protect expensive equipment, such as backflow preventers, in water piping systems from damage or failure caused by foreign material in the pipeline.

What materials are used for the main components of this 10 inch strainer?

The body of the strainer is made from Cast Iron (ASTM A126-B), the cap/cover is Carbon Steel (ASTM A36), and the screen is perforated 304 Stainless Steel. It also includes a non-asbestos gasket.

What are the maximum operating pressure and temperature ratings for this strainer?

This strainer is rated for a maximum non-shock operating pressure of 200 PSI (13.8 bar) and a maximum operating temperature of 150°F (60°C).

What type of connections does the FEBCO Series 758A 10 inch strainer use?

The strainer is designed with ASME/ANSI flanged end connections for secure and standardized installation in piping systems. It also features unplugged NPT blowoff connections on the cover.

Does this product have any lead-free certifications or compliance?

The wetted surface of this product, when contacted by consumable water, contains less than 0.25% of lead by weight. This indicates compliance with certain lead content standards for water contact.
