10 909RPDA-DOSY-GPM-FS

Item Number: 88009372
1 1
$74,823.81
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Watts

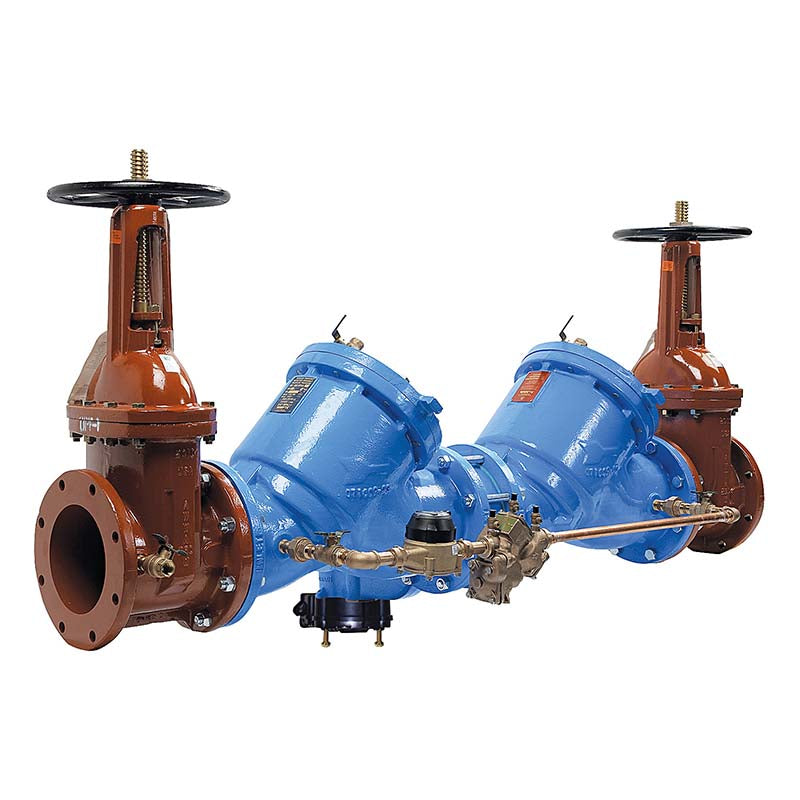

  • 10 inch Reduced Pressure Detector Assembly
  • Weight: 2250.0 lb
  • ArmorTek® coating resists MIC and corrosion
  • Integrated flood sensor with SentryPlus Alert® technology
  • Domestic OSY resilient seated gate valves
  • Gallons per minute (GPM) meter included
  • Maximum Working Pressure: 175 psi
  • Continuous Temperature Range: 33°F - 140°F
  • UL Classified, AWWA C511-92, ASSE 1047, CSA B64 approved

Description

The Watts 10 inch 909RPDA Reduced Pressure Detector Assembly Backflow Preventer is designed for health hazard applications, preventing the reverse flow of fire protection system substances into potable water. Its cast iron body features ArmorTek® epoxy coating for superior corrosion resistance. This assembly includes domestic OSY resilient seated gate valves, a GPM meter for leak detection, and an integrated flood sensor with SentryPlus Alert® technology for discharge notification (requires separate connection kit). It is suitable for continuous pressure piping and cross-connections, rated for 175 psi and 33°F-140°F, and is UL Classified, AWWA, ASSE, and CSA B64 approved. Item 88009372.

Help Me Connect

Flood Sensor Connectivity

  • The integrated flood sensor with SentryPlus Alert® technology requires an add-on sensor connection kit (sold separately) for activation.
  • Once activated, the sensor can relay signals to facility personnel for notification of potential flooding.
  • The add-on sensor connection kit is compatible with Building Management Systems (BMS) and cellular network communication.
View full details

Additional Details

This 10 inch Reduced Pressure Detector Assembly Backflow Preventer is designed to prevent the reverse flow of fire protection system substances into the potable water supply due to backsiphonage or backpressure. It is ideal for continuous pressure piping applications and cross-connections identified as health hazards.

Design & Components

  • Features an epoxy coated cast iron body, domestic OSY resilient seated gate valves, and captured spring check valves.
  • Includes replaceable stainless steel seats and top mounted test cocks.
  • A pressure differential relief valve and a GPM meter are integrated to detect underground leaks and unauthorized water use.
  • The modular check design facilitates maintenance and assembly access.
  • Features an Air-in/Water-out relief valve design for maximum capacity during emergency conditions.

Corrosion Protection

  • Utilizes ArmorTek® coating technology, a patented 3-part advanced epoxy system, designed to resist both microbial-induced corrosion (MIC) and exposed metal substrate corrosion on internal components.

Flood Detection & Alerts

  • Equipped with a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve.
  • When activated via an add-on sensor connection kit (sold separately), the sensor relays a signal for notification of potential flooding to service personnel.
  • The flood alerts are compatible with Building Management Systems (BMS) and cellular network communication.

Specifications

  • Product Series: 909RPDA
  • Size: 10 inch
  • Application: Health hazard fire protection systems
  • Design: Reduced Pressure Detector Assembly (RPDA)
  • Flood Sensor: Integrated with SentryPlus Alert® technology
  • Shutoff Valves: Domestic OSY resilient seated gate valves
  • Meter Type: Gallons per minute (GPM)

Materials

  • Body Material: Cast Iron
  • Coating: ArmorTek powder coating (internal and external)
  • Seat and Disc Holder Material: Stainless steel
  • Disc Material: Rubber
  • Trim Material: Stainless steel
  • Test Cock Material: Bronze

Performance

  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Temperature Range: 33°F - 140°F (0.5°C ~ 60°C) continuous

Certificates & Approvals

  • AWWA C511-92
  • ASSE 1047
  • UL Classified (File No. EX3185)
  • CSA B64
  • USC Manual for Cross-connection Control, 8th Edition
  • Approved by Foundation for Cross-Connection Control and Hydraulic Research at USC

FAQs

What is the primary purpose of this backflow preventer?

This 10-inch Reduced Pressure Detector Assembly (RPDA) backflow preventer is designed to prevent the reverse flow of fire protection system substances, such as glycerin or stagnant water, into the potable water supply. It protects against backsiphonage and backpressure in health hazard applications.

What type of corrosion protection does this assembly offer?

The assembly features ArmorTek® coating technology, a patented three-part advanced epoxy system applied to the cast iron body's internal and external surfaces. This coating is engineered to resist both microbial-induced corrosion (MIC) and general exposed metal substrate corrosion.

How does the integrated flood sensor work?

The flood sensor with SentryPlus Alert® technology detects excessive water discharges from the relief valve. When activated via an add-on sensor connection kit (sold separately), the sensor relays a signal to facility personnel or building management systems to notify them of potential flooding.

What are the key components included in this backflow assembly?

This backflow preventer includes an epoxy coated cast iron body, domestic OSY resilient seated gate valves, captured spring check valves, replaceable stainless steel seats, top mounted test cocks, a pressure differential relief valve, and a GPM (gallons per minute) meter.

What are the operating pressure and temperature limits for this unit?

This backflow preventer has a maximum working pressure of 175 psi (12.1 bar). It can operate continuously within a temperature range of 33°F to 140°F (0.5°C to 60°C).
