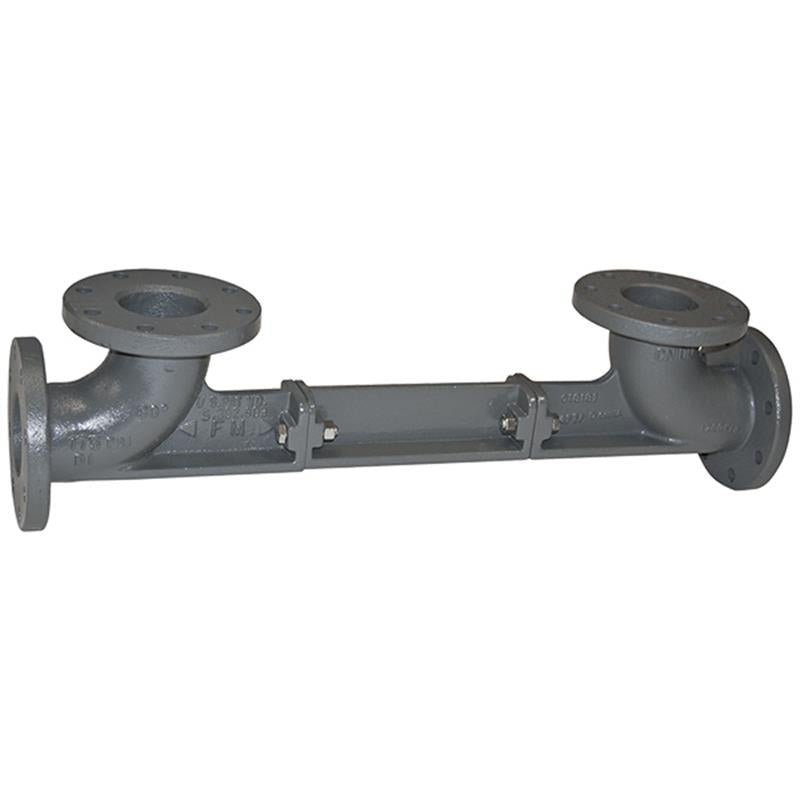

10 AVS-C Flange x Flange

Item Number: 0693214
1 1
$4,335.00
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 10 inch (250mm)
  • Weight: 491.0 lb
  • Connection Type: Flange by Flange
  • Body Material: Ductile Iron A536 GR 65-45-12
  • Coating: Fusion epoxy coated internal and external AWWA C550
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 32°F to 140°F
  • Eliminates need for thrust blocks
  • Wetted surface is lead-free (<0.25% lead by weight)

Description

The 10 inch AMES Series AVS valve setter is engineered to enhance the installation of "N" series backflow prevention valves. Featuring robust Flange by Flange connections, this unit is constructed from fusion epoxy coated ductile iron, ensuring corrosion resistance and durability. Its innovative design provides integral support between elbows, effectively eliminating the need for external thrust blocks. With a maximum operating pressure of 175 psi and a temperature range of 32°F to 140°F, it offers reliable performance. The wetted surface contains less than 0.25% lead by weight, meeting lead-free requirements. Item number 0693214.

Help Me Connect

This AMES Series AVS valve setter is specifically designed to augment and simplify installations of "N" series backflow prevention valves.

  • The Flange by Flange connection means both ends of the valve setter feature standard flanges, allowing direct connection to other flanged components in your piping system.
  • While mechanical joint restraint devices may be used at pipe connections, the integral ductile iron support within the setter itself helps manage thrust.
View full details

Additional Details

This 10 inch AMES Series AVS valve setter is designed to augment the installation of the "N" series backflow prevention valves. It features a Flange by Flange connection type.

Constructed from fusion epoxy coated ductile iron, this valve setter provides integral ductile iron support between elbows, transferring thrust downstream and eliminating the need for traditional thrust block requirements between elbows.

Features

  • Corrosion resistant fusion epoxy coated, internally and externally.
  • Eliminates the need for thrust blocks or other restraints at the point of installation.
  • Flange by Flange connections conform to ANSI B16.1 Class 125 (Standard) and ANSI AWWA C153 A21.53-88.
  • The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight, meeting lead-free requirements.

Specifications

  • Size: 10 inch (250mm)
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Temperature Range: 32°F to 140°F (0°C to 60°C)

Materials

  • Body Material: Ductile iron A536 GR 65-45-12
  • Coating: Fusion epoxy coated internal and external AWWA C550
  • Bolts & Nuts: Stainless steel

Dimensions & Weight (Flange x Flange)

  • Length A: 72 inch (1829 mm)
  • Length B: 50 inch (1270 mm)
  • Length C: 11 inch (279 mm)
  • Weight: 365 lbs (166 kgs)

Certificates & Approvals

  • Flanges: ANSI B16.1 Class 125 (Standard)
  • Flanges: ANSI AWWA C153 A21.53-88
  • Lead Content: Wetted surface contains less than 0.25% lead by weight

FAQs

What is the primary purpose of the AMES Series AVS valve setter?

The AMES Series AVS valve setter is designed to augment and simplify the installation of "N" series backflow prevention valves by providing structural support and eliminating the need for thrust blocks.

What are the connection types for this 10 inch model?

This specific 10 inch AMES Series AVS valve setter features Flange by Flange connections, meaning both ends are flanged for easy integration into a piping system.

What materials are used in the construction of this valve setter?

The body is constructed from Ductile iron A536 GR 65-45-12. It features fusion epoxy coating both internally and externally (AWWA C550) for corrosion resistance, and its bolts and nuts are made of stainless steel.

What are the operating pressure and temperature limits for this valve setter?

This valve setter has a maximum working pressure of 175 psi (12.1 bar) and an operating temperature range from 32°F to 140°F (0°C to 60°C).

Does this valve setter require external thrust blocks for installation?

No, a key feature of the AMES Series AVS valve setter is its integral ductile iron support between elbows, which transfers thrust downstream and eliminates the need for external thrust blocks at the point of installation.
