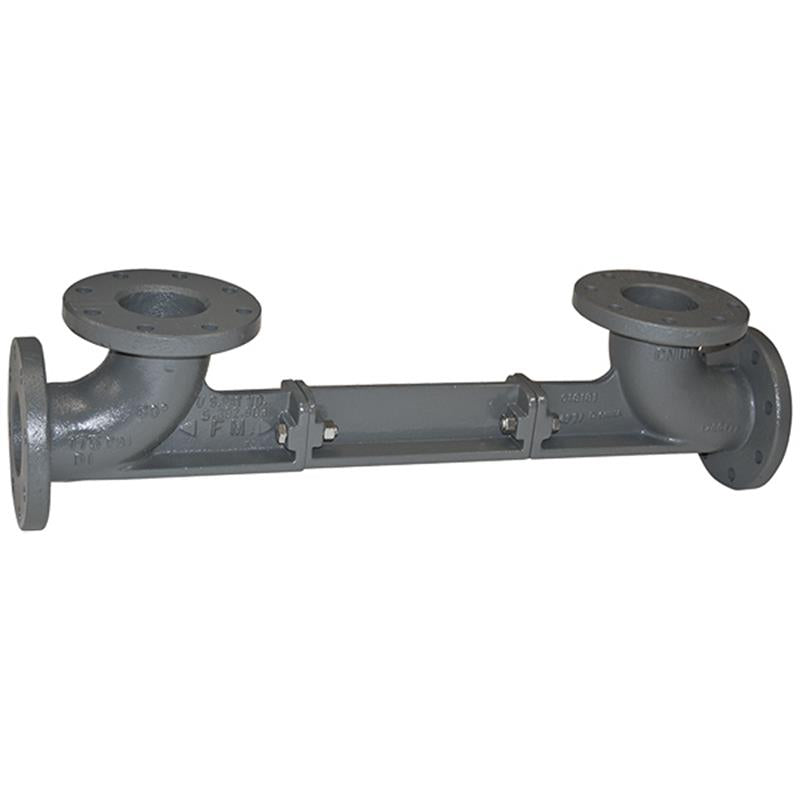

10 AVS-C Flange x Mechanical Joint

Item Number: 0693219
1 1
$4,335.75
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 10 inch (250mm)
  • Weight: 469.0 lb
  • Connection: Mechanical Joint by Flange
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 32°F to 140°F
  • Body Material: Ductile Iron A536 GR 65-45-12
  • Coating: Fusion Epoxy Coated (AWWA C550)
  • Eliminates need for thrust blocks
  • Lead Free: Less than 0.25% lead by weight

Description

The Ames Series AVS 10 inch valve setter with Mechanical Joint by Flange connections is specifically designed to augment "N" series backflow prevention valve installations. Constructed from fusion epoxy coated ductile iron, this valve setter eliminates the need for external thrust blocks by transferring downstream thrust internally. It is rated for a maximum working pressure of 175 psi and a temperature range of 32°F to 140°F. The fusion epoxy coating provides excellent corrosion resistance. This lead-free component ensures secure and stable installations for critical water systems.

Help Me Connect

Connections

  • The Mechanical Joint side of this valve setter is designed to connect to compatible pipe or fittings using a mechanical joint.
  • The Flange side of this valve setter is designed to connect to compatible flanged pipe or equipment. Flanges conform to ANSI B16.1 Class 125 and ANSI AWWA C153 A21.53-88 standards.
  • Note: Mechanical joint accessories, flange bolts, and gaskets are not included, except for center joints if applicable to the full assembly.

Compatibility

  • Designed to augment the installation of "N" series backflow prevention valves.
  • Mechanical joint restraint devices may be used at pipe connections depending on local conditions.
View full details

Additional Details

The Ames Series AVS valve setter, 10 inch Mechanical Joint by Flange, is designed to augment the installation of "N" series backflow prevention valves. It eliminates the need for thrust blocks or other restraints at the point of installation.

This valve setter is constructed of fusion epoxy coated ductile iron with integral ductile iron support between elbows, transferring thrust downstream and eliminating the need for thrust block requirements.

Features

  • Corrosion resistant fusion epoxy coated.
  • Eliminates the need for thrust blocks or other restraints at the point of installation.
  • Flanges conform to ANSI B16.1 Class 125 (Standard) and ANSI AWWA C153 A21.53-88.

Materials

  • Body: Ductile iron A536 GR 65-45-12
  • Coating: Fusion epoxy coated internal and external AWWA C550
  • Bolts & Nuts: Stainless steel

The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight.

Specifications

  • Size: 10 inch (250mm)
  • Connection Type: Mechanical Joint by Flange (MJxFL)
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Temperature Range: 32°F to 140°F (0°C to 60°C)
  • Body Material: Ductile Iron A536 GR 65-45-12
  • Coating: Fusion Epoxy Coated internal and external AWWA C550
  • Bolts & Nuts Material: Stainless Steel

Certificates & Approvals

  • Flange Standard: ANSI B16.1 Class 125
  • Flange Standard: ANSI AWWA C153 A21.53-88

Dimensions

  • Overall Length (A): 69 inch (1753 mm)
  • Width (B): 50 inch (1270 mm)
  • Height (C): 9 1/2 inch (241 mm)

Weight

  • Net Weight: 343 lbs (156 kgs)

FAQs

What is the primary purpose of the Ames Series AVS Valve Setter?

The Ames Series AVS Valve Setter is designed to augment the installation of "N" series backflow prevention valves, specifically to eliminate the need for thrust blocks or other external restraints at the point of installation.

What are the connection types for this specific 10-inch valve setter?

This 10-inch valve setter features a Mechanical Joint on one side and a Flange connection on the other, identified as an MJxFL (Mechanical Joint by Flange) configuration.

What material is the valve setter constructed from, and what is its coating?

The valve setter body is constructed from Ductile Iron A536 GR 65-45-12. It features an internal and external fusion epoxy coating, conforming to AWWA C550, for corrosion resistance.

What are the maximum operating pressure and temperature limits for this valve setter?

This valve setter has a maximum working pressure of 175 psi (12.1 bar) and is suitable for a temperature range of 32°F to 140°F (0°C to 60°C).

Are mechanical joint accessories, bolts, and gaskets included with this product?

No, mechanical joint accessories, flange bolts, and gaskets are not included with the valve setter, except for any center joints that might be part of the complete assembly.
