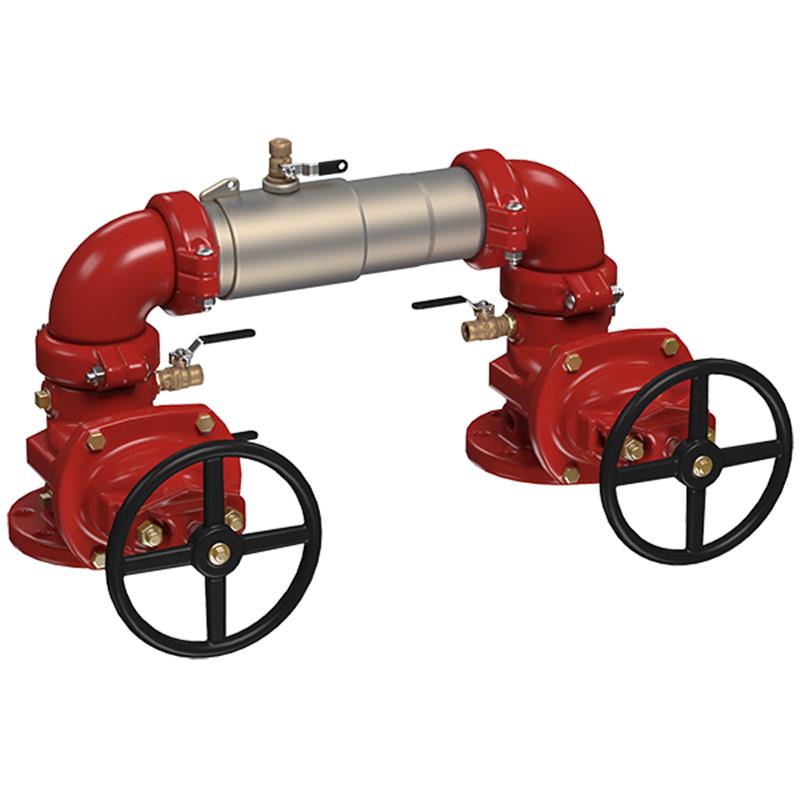

10 C200N-NRS

Item Number: 0191221
1 1
$32,364.39
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 10 inch
  • Weight: 1032.0 lb
  • Body Material: 304 Stainless Steel
  • Valve Type: Non-Rising Stem (NRS) Gate Valves
  • Check Type: Patented Tri-Link Checks
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 33°F - 140°F
  • Lead Free* Construction: Less than 0.25% lead by weight
  • Approvals: ASSE 1015, AWWA C510-97, CSA B64.5

Description

This Colt 10 inch C200N-NRS lead free double check valve backflow preventer assembly prevents non-potable water from entering the potable supply in non-health hazard cross-connections, such as fire sprinkler systems. It features a compact 304 stainless steel body, non-rising stem (NRS) gate valves, and patented Tri-Link Checks for minimal pressure loss and easy serviceability without special tools. Approved for N pattern horizontal installation, it handles a maximum working pressure of 175 psi and ensures compliance with lead-free requirements.

Help Me Connect

This Colt™ C200N-NRS double check valve backflow preventer assembly is designed for N pattern horizontal installation, ensuring compliance with specified flow directions. The unit features groove end connections that facilitate integral pipeline adjustment, simplifying installation into existing or new piping systems.

View full details

Additional Details

This Colt™ 10 inch lead free double check valve backflow preventer assembly is designed to prevent the reverse flow of fire protection substances and water of non-potable quality from being pumped or siphoned into the potable water supply. It is suitable for cross-connections identified as non-health hazards, such as on fire sprinkler systems and from other contaminants at the service line entrance.

Key Features

  • Compact design, approximately 70% lighter than traditional models
  • Constructed with a 304 (Schedule 40) Stainless steel housing and sleeve
  • Features two independent Tri-Link Check modules with patented design for lowest pressure loss
  • Equipped with non-rising stem resilient seated gate valves (NRS) and four test cocks
  • Offers unmatched ease of serviceability with a single housing sleeve access port, allowing check module removal without special tools
  • Groove fittings allow for integral pipeline adjustment
  • Approved for N pattern horizontal installation
  • Includes reversible elastomer discs and replaceable check disc rubber
  • Lead Free* construction, with wetted surfaces containing less than 0.25% lead by weight

Specifications

  • Model: C200N-NRS
  • Product Type: Double Check Valve Backflow Preventer Assembly
  • Size: 10 inch
  • Housing & Sleeve Material: 304 (Schedule 40) Stainless steel
  • Valve Type: Non-rising stem resilient seated gate valves (NRS)
  • Check Module Type: Patented Tri-Link Check
  • Elastomers: EPDM, silicone, Buna 'N'
  • Tri-Link Checks Material: Noryl®, stainless steel
  • Check Discs Material: Reversible silicone or EPDM
  • Test Cocks Material: Lead Free* bronze body
  • Pins & Fasteners Material: 300 series stainless steel
  • Springs Material: Stainless steel
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Temperature Range: 33°F - 140°F (0.5°C - 60°C)

Dimensions

  • Overall Length (A): 57¾ inch (1467 mm)
  • Centerline to Valve Top (C (NRS)): 45¾ inch (1162 mm)
  • Valve Length (D): 23 13/16 inch (605 mm)
  • Inlet to Centerline (G): 8 3/16 inch (208 mm)
  • Outlet to Centerline (H): 66 inch (1676 mm)
  • Width (J): 49½ inch (1257 mm)
  • Distance Between Shutoff Valves (P): 32½ inch (826 mm)
  • Weight (C200NRS): 891 lb (404 kg)

Certificates & Approvals

  • Approved by the Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • AWWA C510-97
  • ASSE 1015
  • CSA B64.5
  • NSF/ANSI 61-G Certified

FAQs

What is the primary use of this backflow preventer?

This backflow preventer is used to prevent the reverse flow of non-potable water and fire protection substances into the potable water supply system. It is specifically designed for non-health hazard applications.

What does "Lead Free" mean for this product?

Lead Free* indicates that the wetted surfaces of this product, which contact consumable water, contain less than 0.25% lead by weight, complying with lead-free installation requirements and state codes.

What type of shutoff valves does the C200N-NRS model use?

The C200N-NRS model utilizes non-rising stem (NRS) resilient seated gate valves, which offer reliable shutoff control and are integrated into the assembly.

Can this backflow preventer be installed in any orientation?

This specific model is approved for N pattern horizontal installation. Refer to the installation instructions for precise guidance on acceptable orientations for your application.

What is the maximum operating pressure and temperature range?

This assembly has a maximum working pressure of 175 psi (12.1 bar) and is suitable for a temperature range of 33°F to 140°F (0.5°C to 60°C).
