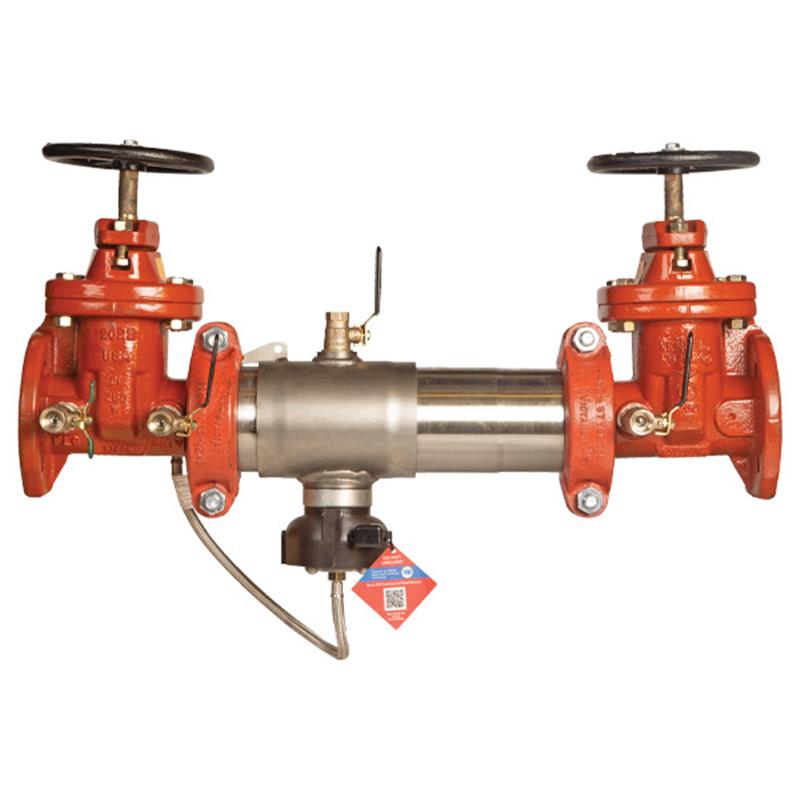

10 C400-DNRS-FS

Item Number: F0425204
1 1
$70,480.91
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 10 inch Reduced Pressure Zone Backflow Preventer
  • Weight: 923.0 lb
  • Body Material: Type 304 Stainless Steel Housing and Sleeve
  • Lead Free Construction: Wetted surface contains less than 0.25% lead
  • Includes Flood Sensor with SentryPlus Alert® Technology
  • Shutoff Valves: Domestic Non-Rising Stem (NRS) Gate
  • Installation Configuration: Horizontal
  • Check Modules: Patented Link Check with Torsion Spring
  • Approvals: FCCC-HR-USC, AWWA C511-97, FM Approved, NSF Listed, CSA B64.4

Description

The Colt 10 inch Series C400 Reduced Pressure Zone Backflow Preventer Assembly is engineered to protect potable water systems from contamination due to backsiphonage or backpressure. This Lead Free assembly features a compact, lightweight Type 304 stainless steel body with domestic non-rising stem gate valves and patented link check modules. It includes a flood sensor with SentryPlus Alert® technology for discharge detection, activated with an add-on connection kit. Approved for horizontal installation, it meets FCCC-HR-USC, AWWA C511-97, FM, NSF, and CSA B64.4 standards. Item number F0425204.

Help Me Connect

Flood Sensor Activation & Monitoring

  • The integrated flood sensor with SentryPlus Alert® technology requires an add-on connection kit to be fully activated. Without this kit, the sensor remains a passive component and cannot communicate or relay alerts.
  • Connection kit options provide various communication methods, including:
    • BMS (Building Management System) integration
    • Cellular communication for remote alerts
    • The Sensor Control Monitor, enabling integration with BAS (Building Automation Systems) via RS‑485 Modbus or the Nexa® platform through Wi-Fi.
  • Retrofit sensor connection kits are also available for existing installations.
View full details

Additional Details

This Colt™ 10 inch stainless steel reduced pressure zone backflow preventer assembly is designed to prevent the reverse flow of contaminated water into the potable water supply due to backsiphonage or backpressure. It features an extremely compact design, making it 70% lighter than traditional designs, and is approved for horizontal installation.

The assembly includes a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve, capable of relaying signals for multichannel alerts (call, email, text) to notify personnel of potential flooding.

Features

  • Extremely compact design, approximately 70% lighter than traditional models
  • Constructed with Type 304 (Schedule 40) stainless steel housing and sleeve
  • Equipped with groove fittings for integral pipeline adjustment and ease of installation
  • Features patented link check modules for lowest pressure loss and unmatched ease of serviceability
  • Includes domestic non-rising stem (NRS) gate valves with resilient seats
  • Designed for horizontal installation
  • Incorporates a corrosive resistant stainless steel bottom-mounted pressure relief valve with a sensor for flood detection
  • Flood alert feature is activated with an add-on sensor connection kit
  • The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight, complying with Lead Free* installation requirements.

NOTICE: An add-on connection kit is required to activate the flood sensor. Without the connection kit, the flood sensor is a passive component and will not communicate with any other device. Use of the flood sensor does not replace the need to comply with all required instructions, codes, and regulations related to installation, operation, and maintenance of this product, including the need to provide proper drainage in the event of a discharge.

Specifications

  • Size: 10 inch
  • Body Material: Type 304 (Schedule 40) Stainless Steel
  • Housing & Sleeve: Type 304 (Schedule 40) Stainless Steel
  • Check Modules: Torsion Spring Link Check
  • Check Discs: Replaceable Rubber
  • Shutoff Valves: Domestic Non-Rising Stem (NRS) Gate Valves, Resilient Seated
  • Pressure Relief Valve: Corrosive Resistant Stainless Steel, Bottom Mounted
  • Test Cocks: Ball Valve Type
  • Lead Content: Less than 0.25% by weight (wetted surface)
  • Installation Configuration: Horizontal
  • Weight (NRS model): 950 lb (431 kg)

Certificates & Approvals

  • Approved by: Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCC-HR-USC)
  • Standard: AWWA C511-97
  • Certified: FM Approved
  • Certified: NSF Listed
  • Certified: CSA B64.4

FAQs

What is the primary function of the Colt C400-DNRS-FS backflow preventer?

This backflow preventer is designed to protect potable water systems from contamination by preventing the reverse flow of water (backflow) caused by backsiphonage or backpressure. It ensures the integrity of the clean water supply.

What type of shutoff valves are included with this assembly?

The assembly includes domestic non-rising stem (NRS) gate valves. These resilient seated valves provide reliable shutoff and are integrated into the system.

Is an add-on connection kit required to activate the flood sensor?

Yes, an add-on connection kit is required to activate the flood sensor. Without this kit, the sensor will remain a passive component and will not communicate or provide alerts for potential flooding events.

What materials are used in the construction of this backflow preventer?

The housing and sleeve are constructed from Type 304 (Schedule 40) stainless steel. The pressure relief valve is also made of corrosive-resistant stainless steel, and the check discs are replaceable rubber.

What certifications and approvals does this product hold?

This product is approved by FCCC-HR-USC, meets AWWA C511-97 standards, and is FM Approved, NSF Listed, and CSA B64.4 certified. These approvals ensure its compliance with national plumbing codes and safety standards.
