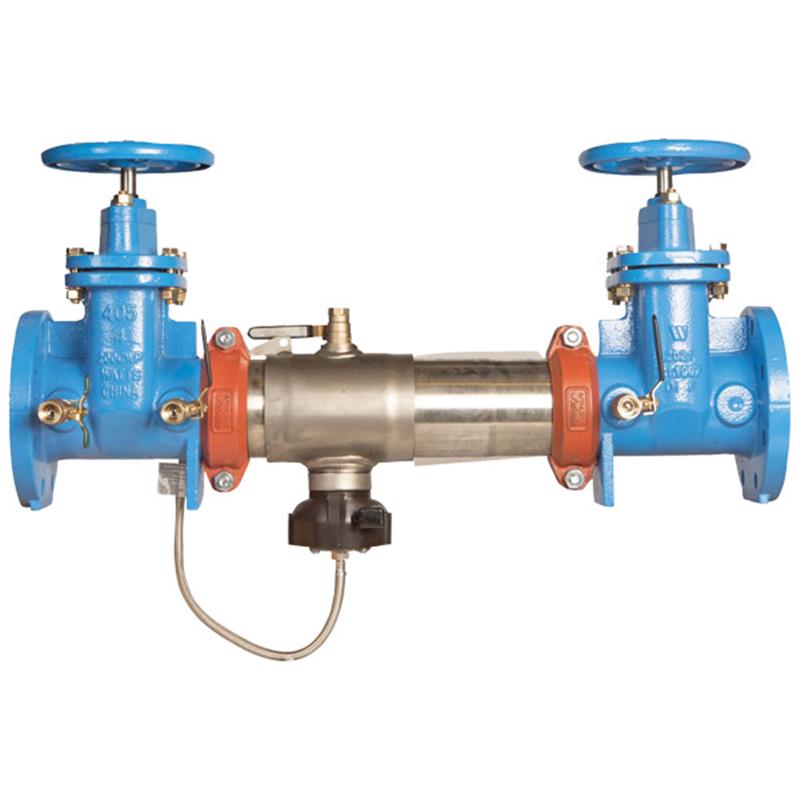

10 C400-NRS-FS

Item Number: F0191293
1 1
$33,156.07
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 10 inch
  • Weight: 923.0 lb
  • Body Material: Type 304 Stainless Steel (Schedule 40)
  • Shutoff Valves: Non-Rising Stem (NRS) Resilient Seated Gate Valves
  • Maximum Working Pressure: 175 PSI
  • Flood Sensor: Integrated with SentryPlus Alert® technology
  • Lead-Free Construction: Complies with state codes and standards
  • Approvals: ASSE 1013, AWWA C511-97, CSA B64.4, UL, FM, NSF/ANSI 61-G
  • Connections: Groove couplings for easy installation

Description

The Colt 10 inch stainless steel reduced pressure zone backflow preventer assembly (SKU F0191293) is designed to protect potable water supplies from contamination caused by backpressure or backsiphonage. This compact unit features a Type 304 stainless steel body, non-rising stem (NRS) gate valves, and lead-free bronze test cocks. It includes an integrated flood sensor with SentryPlus Alert® technology, detecting excessive relief valve discharge and enabling remote alerts with an add-on connection kit. Approved by ASSE 1013, AWWA C511-97, CSA B64.4, UL, FM, and NSF/ANSI 61-G, this backflow preventer ensures reliable and compliant performance for horizontal installations up to 175 PSI.

Help Me Connect

Connection Compatibility

  • This assembly features groove couplings for straightforward installation and pipe alignment.
  • It is designed for horizontal installation, which should be done in accordance with the direction of the flow arrow.

Flood Sensor Integration

  • The integrated flood sensor with SentryPlus Alert® technology requires an add-on connection kit to relay alerts for potential flooding events.
  • Connection kit options include systems for BMS, cellular communication, or the Sensor Control Monitor.
  • The Sensor Control Monitor enables integration with Building Automation Systems (BAS) via RS-485 Modbus or connects to the Nexa® platform through Wi-Fi for remote monitoring.
View full details

Additional Details

This Colt™ 10 inch stainless steel reduced pressure zone backflow preventer assembly is engineered to safeguard potable water supplies by preventing the reverse flow of contaminated water due to backsiphonage or backpressure.

Primary Function & Design

  • Designed to prevent the reverse flow of contaminated water into the potable water supply.
  • Extremely compact and lighter than traditional backflow preventer designs.
  • Approved for horizontal installation, aligning with flow direction.
  • Constructed with a stainless steel body, quick access sleeve, torsion spring check valves, resilient seated gate valves with non-rising stem, and corrosive-resistant stainless steel bottom mounted pressure relief valve.

Flood Detection & Monitoring

  • Includes a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve.
  • When paired with an add-on connection kit, the sensor activates to relay alerts for potential flooding events.
  • Connection kit options include BMS, cellular communication, or the Sensor Control Monitor for integration with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi.
  • An add-on connection kit is required to activate the flood sensor's full alert capabilities. Without the connection kit, the flood sensor is a passive component and will not communicate with any smart devices.

Features

  • Extremely compact design.
  • 77% lighter than traditional designs.
  • Type 304 (Schedule 40) stainless steel housing and sleeve.
  • Groove couplings for easy installation and pipe alignment.
  • Patent-link check modules for lower pressure loss.
  • Unmatched ease of serviceability.
  • Available with grooved butterfly or gate shutoffs.
  • Configurable for horizontal, N-pattern, and Z-pattern installation.
  • Reversible check disc rubber.
  • Sensor on relief valve for flood detection.
  • Flood alert feature activated with add-on sensor connection kit.
  • Includes an integrated supervisory switch as an option on each gate valve of the OS&Y model.

Specifications

  • Size: 10 inch
  • Housing & Sleeve Material: Type 304 (Schedule 40) Stainless Steel
  • Elastomers: EPDM, Silicone, Buna 'N'
  • Link Checks Material: Noryl®, Stainless Steel
  • Check Discs: Reversible Silicone or EPDM
  • Test Cocks Material: Lead Free* Bronze Body
  • Pins & Fasteners Material: 300 Series Stainless Steel
  • Springs Material: Stainless Steel
  • Shutoff Valves: Non-Rising Stem (NRS) Resilient Seated Gate Valves
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Temperature Range: 33°F - 140°F (0.5°C - 60°C)

Certificates & Approvals

  • Approved by the Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • AWWA C511-97
  • ASSE 1013
  • CSA B64.4
  • UL Classified
  • FM Approved
  • NSF/ANSI 61-G Certified (for Lead Free materials)

Dimensions & Weight (C400N)

  • Weight: 950 lbs (431 kg)

FAQs

What is the primary function of this backflow preventer?

This reduced pressure zone backflow preventer is designed to protect potable water supplies by preventing the reverse flow of contaminated water from entering the system due to backsiphonage or backpressure.

What materials are used in the construction of this assembly?

The housing and sleeve are made from Type 304 (Schedule 40) stainless steel. Elastomers include EPDM, silicone, and Buna 'N'. The link checks use Noryl® and stainless steel, while test cocks are made of Lead Free* bronze.

What is the maximum operating pressure and temperature range for this device?

This backflow preventer has a maximum working pressure of 175 psi (12.1 bar). It can operate within a temperature range of 33°F to 140°F (0.5°C to 60°C).

Does this backflow preventer include a flood sensor?

Yes, it includes a flood sensor with SentryPlus Alert® technology. This sensor detects excessive water discharges from the relief valve and can relay alerts when paired with an add-on connection kit.

What certifications and approvals does this product hold?

This assembly is approved by FCCCHR-USC, AWWA C511-97, ASSE 1013, CSA B64.4, UL Classified, FM Approved, and is Certified to NSF/ANSI 61-G for lead-free materials.
