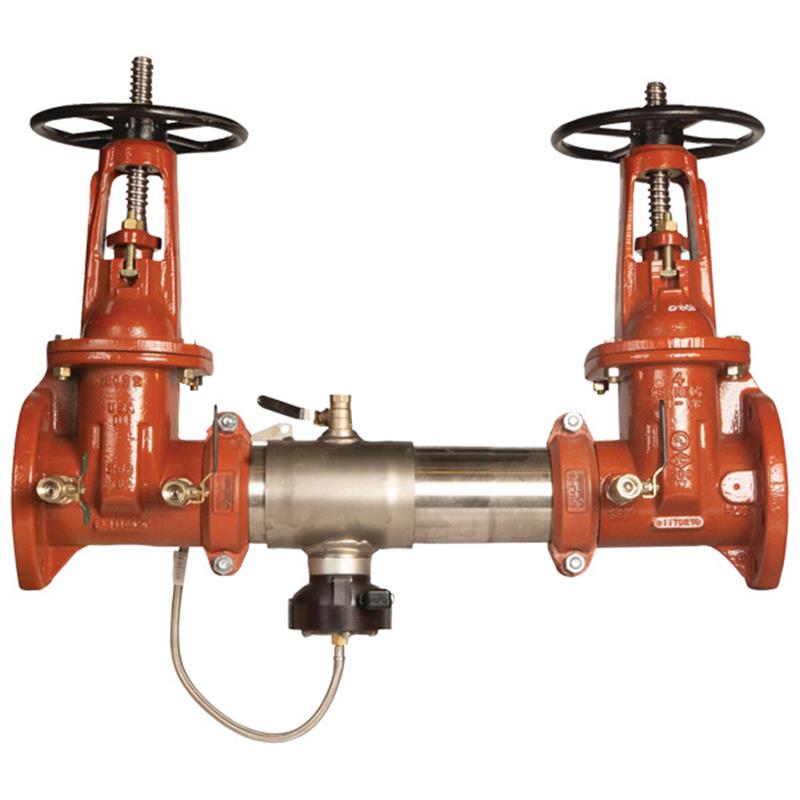

10 C400-OSY-FS

Item Number: F0191275
1 1
$33,521.90
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 10 inch
  • Weight: 922.0 lb
  • Lead Free Reduced Pressure Zone Backflow Preventer
  • Housing Material: Type 304 (Schedule 40) Stainless Steel
  • Maximum Operating Pressure: 175 psi
  • Temperature Range: 33°F - 140°F
  • Flood Sensor: SentryPlus Alert® technology included
  • Valve Type: OS&Y Resilient Seated Gate Valves
  • Design: Extremely compact and lightweight

Description

This 10 inch Ames Colt C400-OSY-FS Lead Free Reduced Pressure Zone Backflow Preventer assembly is designed for health hazard applications to prevent backflow of non-potable water into the potable supply. Featuring a durable Type 304 stainless steel housing, resilient seated OS&Y gate valves, and groove couplings for easy installation. It includes a SentryPlus Alert® flood sensor to detect relief valve discharge, requiring an add-on connection kit for active monitoring. This compact, lightweight unit is approved by ASSE, UL, FM, AWWA, and NSF, ensuring reliable performance in continuous pressure piping applications. Item number F0191275.

Help Me Connect

Connecting the Backflow Preventer

  • This assembly utilizes groove couplings for straightforward installation and integral pipeline adjustment.
  • For flood monitoring, the integrated flood sensor requires an add-on sensor connection kit to be activated and communicate with other devices.
  • Connection kit options include Building Management Systems (BMS), cellular communication, or the Sensor Control Monitor for integration with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi.
View full details

Additional Details

The Colt C400-OSY-FS 10 inch lead free reduced pressure zone backflow preventer assembly is engineered to prevent the reverse flow of fire protection substances and non-potable water into the potable water supply due to backsiphonage and backpressure.

This assembly is ideal for continuous pressure piping applications and cross-connections identified as health hazards.

Construction & Design

  • Features a Type 304 (Schedule 40) stainless steel housing and sleeve for durability
  • Includes two independent Link Check modules and a bottom-mounted differential pressure relief valve
  • Equipped with drip tight shutoff valves that are resilient seated outside stem and yoke (OS&Y) gate valves
  • Utilizes groove couplings for easy installation and integral pipeline adjustment
  • Lead Free* construction ensures compliance with lead-free installation requirements
  • Extremely compact design, approximately 70% lighter than traditional models, allowing for smaller enclosures
  • Replaceable check disc rubber for extended service life
  • Patented link check design provides lowest pressure loss and unmatched ease of serviceability

Flood Sensor & Alerts

  • Contains a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve
  • Flood alert feature is activated with an add-on sensor connection kit
  • The OS&Y model includes an option for an integrated supervisory switch on each gate valve

An add-on connection kit is required to activate the flood sensor. Without the connection kit, the flood sensor is a passive component and will not communicate with any other device.

Specifications

General

  • Product Series: C400 Reduced Pressure Zone Assembly
  • Size: 10 inch
  • Connection Type: Grooved
  • Installation: Horizontal, "Z" pattern horizontal, "N" pattern horizontal
  • Temperature Range: 33°F - 140°F (0.5°C - 60°C)
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Lead Free: Yes (wetted surface contains less than 0.25% of lead by weight)
  • Flood Sensor: Yes, with SentryPlus Alert® technology
  • Supervisory Switch: Integrated supervisory switch option (on OS&Y gate valves)

Materials

  • Housing & Sleeve: Type 304 (Schedule 40) stainless steel
  • Elastomers: EPDM, silicone, Buna 'N'
  • Link Checks: Noryl®, stainless steel
  • Check Discs: Reversible silicone or EPDM
  • Test Tocks: Lead Free* bronze body
  • Pins & Fasteners: 300 Series stainless steel
  • Springs: Stainless steel

Certificates & Approvals

  • Approved by the Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • AWWA C511-97
  • ASSE 1013
  • CSA B64.4
  • UL Classified
  • FM Approved
  • NSF Certified to NSF/ANSI 61-G

FAQs

What is the primary use of this backflow preventer?

This 10 inch Colt C400-OSY-FS reduced pressure zone backflow preventer is designed to protect potable water systems from contamination due to backsiphonage and backpressure, making it ideal for health hazard applications and continuous pressure piping.

What material is the housing and sleeve made from?

The housing and sleeve of this backflow preventer are constructed from durable Type 304 (Schedule 40) stainless steel.

Does this backflow preventer include a flood sensor?

Yes, this assembly includes a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve. An add-on connection kit is required for the sensor to be active and communicate.

What are the maximum operating pressure and temperature limits?

The maximum working pressure for this unit is 175 psi (12.1 bar), and it operates within a temperature range of 33°F to 140°F (0.5°C to 60°C).

What type of shutoff valves are included with this model?

This C400-OSY-FS model is equipped with UL Classified and FM Approved outside stem and yoke (OS&Y) resilient seated gate valves, which are drip tight.
