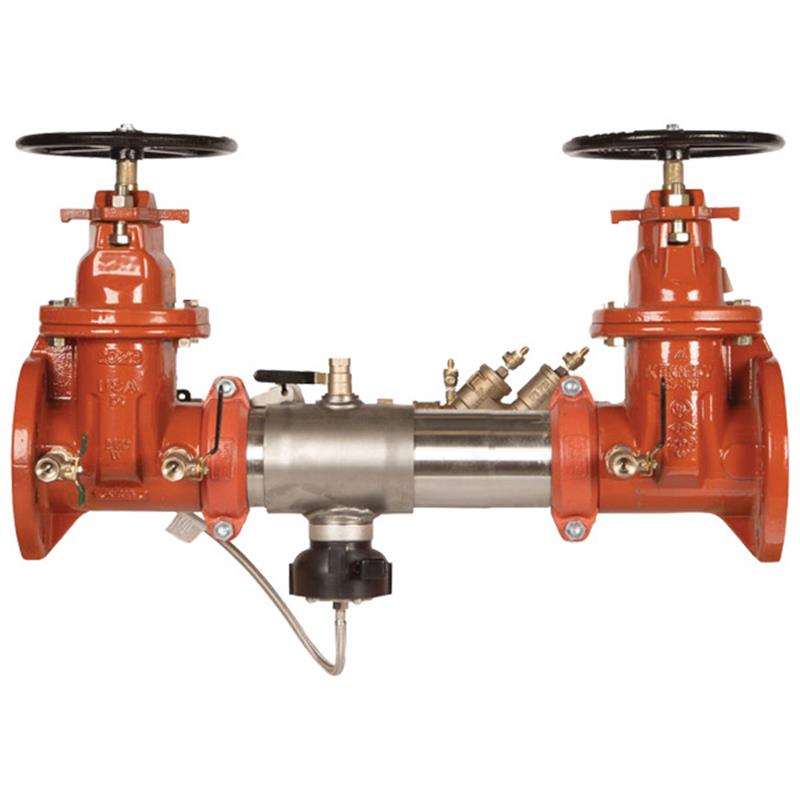

10 C500-DNRS-G-FS
Item Number: F0191648
1
/
of
1
Regular price
$36,833.26
Special Order
When Will it Ship:
Contact for Lead Time
Estimated transit time: 2 to 5 Business Days
Brand - Ames
Couldn't load pickup availability
- Size: 10 inch
- Weight: 997.0 lb
- Housing & Sleeve Material: 304 Stainless Steel
- Maximum Operating Pressure: 175 PSI
- Temperature Range: 33°F - 140°F
- Integrated flood sensor with SentryPlus Alert® technology
- Metered bypass for leak and unauthorized water use detection
- Approved by AWWA C511-97, ASSE 1047, CSA B64.4
- Grooved connections for easy installation
Description
Description
The Colt 10 inch C500 Reduced Pressure Detector assembly prevents reverse flow of non-potable water into potable water supplies. Designed for health hazard cross-connections, it's ideal for fire sprinkler systems and service line protection. This assembly features a 304 stainless steel housing, grooved connections, and drip-tight shutoff valves. It includes a metered bypass for leak detection and an integrated flood sensor with SentryPlus Alert® technology. The sensor requires an add-on connection kit for active alert functionality. Rated for 175 PSI and temperatures from 33°F to 140°F, it is AWWA C511-97, ASSE 1047, and CSA B64.4 approved. Item number F0191648.
Help Me Connect
Help Me Connect
Sensor Connectivity
- This assembly includes a flood sensor with SentryPlus Alert® technology.
- An add-on connection kit is required to activate the flood sensor and enable alerts.
- Without an add-on connection kit, the flood sensor acts as a passive component with no communication capabilities.
- Connection kit options include BMS, cellular communication, or the Sensor Control Monitor.
- The Sensor Control Monitor enables integration with Building Automation Systems (BAS) via RS-485 Modbus or the Nexa® platform through Wi-Fi.
Collapsible content
Additional Details
The Colt C500 Reduced Pressure Detector assembly is designed to prevent the reverse flow of fire protection substances and non-potable quality water from being pumped or siphoned into the potable water supply due to backsiphonage and/or backpressure.
It is ideal for protection at cross-connections identified as health hazards, such as on fire sprinkler systems and from other contaminants found at the service line entrance.
WARNING: It is illegal to use this product in any plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing this device into a potable product, consult your local water authority, building, and plumbing codes.
Features & Benefits
- Extremely compact design, 70% lighter than traditional designs.
- Constructed with a 304 (Schedule 40) stainless steel housing and sleeve for durability.
- Features grooved fittings for integral pipeline adjustment.
- Patented link check design for lowest pressure loss and unmatched ease of serviceability.
- Replaceable check disc rubber for extended lifespan.
- Equipped with two types of butterfly valve shutoffs.
- Includes a bottom-mounted cast stainless steel relief valve.
- Metered bypass to detect underground leaks and unauthorized water use.
- Integrated flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve.
- Flood alert feature activated by an add-on sensor connection kit, which is required to activate the sensor and relay alerts.
- An integrated supervisory switch is an option on each gate valve of the OS&Y model.
Construction Details
- Consists of two independent Link Check modules, a differential pressure relief valve, two drip tight shutoff valves, and required test cocks.
- Link Check modules and the relief valve are contained within an accessible single housing.
- Link Checks feature reversible elastomer discs for drip tight closure against reverse flow.
- Bypass assembly includes a meter for gallon or cubic measurements, a reduced pressure zone assembly, and required test cocks.
Specifications
General
- Size: 10 inch
Materials
- Housing & Sleeve: 304 (Schedule 40) stainless steel
- Elastomers: EPDM, silicone, Buna 'N'
- Link Checks: Noryl®, stainless steel
- Check Discs: Reversible silicone or EPDM
- Test Cocks: Lead Free* bronze body
- Pins & Fasteners: 300 Series stainless steel
- Springs: Stainless steel
Performance
- Maximum Working Pressure: 175 psi (12.1 bar)
- Temperature Range: 33°F - 140°F (0.5°C ~ 60°C)
Configurations
- Horizontal
- "Z" pattern horizontal
- "N" pattern horizontal
Certificates & Approvals
- Approved by Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC) (Excluding 6" 'Z' and 10" 'N' and 'Z' configurations)
- AWWA C511-97
- ASSE 1047
- CSA B64.4
- UL Classified (BFG & OSY Only)
- FM Approved (BFG & OSY Only)
FAQs
What is the primary purpose of the Colt C500 Reduced Pressure Detector assembly?
Its primary purpose is to prevent the reverse flow of non-potable water and fire protection substances into the potable water supply, protecting against backsiphonage and backpressure at health hazard cross-connections.
What materials are used in the construction of this backflow preventer?
The housing and sleeve are made from 304 (Schedule 40) stainless steel. Elastomers are EPDM, silicone, and Buna 'N'. Link checks use Noryl® and stainless steel, while test cocks are Lead Free* bronze body.
Does this assembly include a flood detection feature?
Yes, it includes an integrated flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve. An add-on connection kit is required to activate the sensor for alert relay.
What are the maximum operating pressure and temperature ratings for this device?
This backflow preventer has a maximum working pressure of 175 psi (12.1 bar) and an operating temperature range of 33°F - 140°F (0.5°C ~ 60°C).
Is this product approved by any regulatory bodies?
Yes, it is approved by the Foundation for Cross-Connection Control and Hydraulic Research at USC, AWWA C511-97, ASSE 1047, CSA B64.4, UL Classified (for BFG & OSY), and FM Approved (for BFG & OSY).
