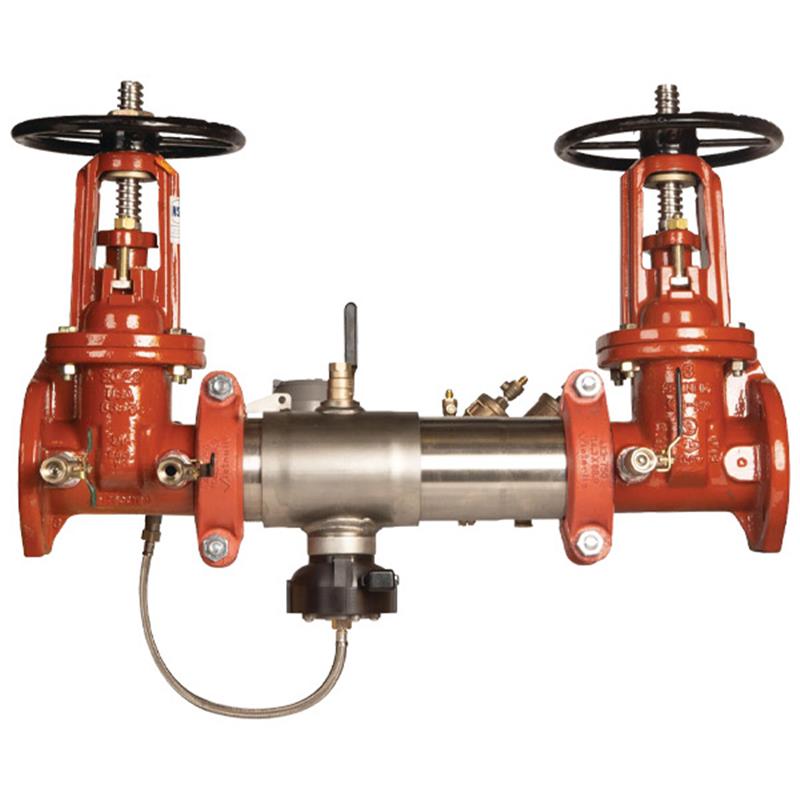

10 C500-OSY-C-FS

Item Number: F0191311
1 1
$36,833.62
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 10 inch
  • Weight: 998.0 lb
  • Body Material: 304 (Schedule 40) Stainless Steel
  • Shutoff Valves: OSY Resilient Seated Gate Valves
  • Flood Sensor: SentryPlus Alert® Technology
  • Maximum Operating Pressure: 175 PSI
  • Connections: Grooved Inlet and Outlet
  • Metered bypass for leak detection
  • Unmatched ease of serviceability

Description

The Colt C500 10 inch Reduced Pressure Detector Backflow Preventer Assembly protects potable water supplies from contamination caused by backpressure or backsiphonage, making it ideal for fire sprinkler systems and other health-hazard cross-connections. This assembly features a durable 304 stainless steel body, OSY resilient seated gate valves, and grooved inlet/outlet connections for easy installation. An integrated flood sensor with SentryPlus Alert technology detects continuous relief valve discharge, while a metered bypass monitors for leaks or unauthorized water use. It operates at a maximum working pressure of 175 PSI.

Help Me Connect

Connections

  • This assembly features grooved inlet and outlet connections for straightforward installation and integral pipeline adjustment.
  • The grooved couplings facilitate easy installation and proper pipe alignment.

Flood Sensor Connectivity

  • To activate the integrated flood sensor, an add-on sensor connection kit is required.
  • Without the connection kit, the flood sensor remains a passive component and will not communicate with external devices.
  • Available connection kit options include BMS, cellular communication, or the Sensor Control Monitor, which integrates with Building Automation Systems (BAS) via RS-485 Modbus or the Nexa® platform via Wi-Fi.
View full details

Additional Details

The Colt C500 10 inch Reduced Pressure Detector Backflow Preventer Assembly is designed to prevent the reverse flow of fire protection substances and non-potable water into the potable water supply due to backsiphonage and backpressure.

It is ideal for protecting cross-connections identified as health hazards, such as in fire sprinkler systems and service line entrances.

Components

  • Features a 304 (Schedule 40) stainless steel body and quick access sleeve.
  • Includes torsion spring check valves, outside stem and yoke (OSY) resilient seated gate valves, and test cocks.
  • Equipped with a corrosive resistant bottom mounted pressure relief valve.
  • Furnished with a cubic feet per minute meter to detect underground leaks and unauthorized water use.
  • Features bronze body nickel plated test cocks.
  • Groove couplings allow for easy installation and pipe alignment.

Flood Sensor Technology

  • Contains a flood sensor with SentryPlus Alert® technology to detect continuous discharge from the relief valve.
  • An add-on sensor connection kit is required to activate the flood sensor and relay alerts for potential flooding events.
  • Connection kit options include BMS, cellular communication, or the Sensor Control Monitor.
  • The Sensor Control Monitor enables integration with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi connectivity.

WARNING: It is illegal to use this product in a plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing, consult your local water authority, building, and plumbing codes.

Specifications

  • Size: 10 inch
  • Assembly Type: Reduced Pressure Detector Assembly (RPDA)
  • Housing & Sleeve Material: 304 (Schedule 40) Stainless Steel
  • Elastomer Material: EPDM, Silicone, Buna 'N'
  • Link Check Material: Noryl®, Stainless Steel
  • Check Disc Material: Reversible Silicone or EPDM
  • Test Cock Material: Lead Free* Bronze Body
  • Pins & Fastener Material: 300 Series Stainless Steel
  • Spring Material: Stainless Steel
  • Shutoff Valve Type: Outside Stem and Yoke (OSY) Resilient Seated Gate Valves
  • Relief Valve: Bottom Mounted Cast Stainless Steel
  • Flood Sensor: Integrated with SentryPlus Alert® Technology
  • Connections: Grooved Inlet and Outlet
  • Maximum Working Pressure: 175 PSI (12.1 bar)
  • Temperature Range: 33°F to 140°F (0.5°C to 60°C)

Certificates & Approvals

  • AWWA C511-97
  • ASSE 1047
  • CSA B64.4
  • UL Classified
  • FM Approved

FAQs

What is the primary function of this backflow preventer?

This backflow preventer is designed to prevent the reverse flow of fire protection substances and non-potable water into a potable water supply, protecting against contamination from backsiphonage and backpressure. It is used to safeguard drinking water from hazardous cross-connections, such as those found in fire sprinkler systems.

What material is the main body of the assembly made from?

The entire valve body and closure sleeve of this backflow preventer assembly are manufactured from 304 (Schedule 40) stainless steel, providing durability and corrosion resistance. Other components include Noryl® and stainless steel link checks, and lead-free bronze test cocks.

Does this assembly include a flood sensor?

Yes, this assembly includes an integrated flood sensor with SentryPlus Alert® technology. This sensor detects continuous water discharges from the relief valve.

How are the shutoff valves configured on this model?

This C500 model features outside stem and yoke (OSY) resilient seated gate valves. These valves are UL Classified and FM Approved and are designed for reliable shutoff.

What type of connections does this backflow preventer use?

The Colt C500 Reduced Pressure Detector Assembly utilizes grooved inlet and outlet connections. These grooved couplings facilitate easy installation and allow for integral pipeline adjustment.
