10 C500-OSY-G-FS

Item Number: F0191317
1 1
$36,833.62
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 10 inch
  • Weight: 997.0 lb
  • Body Material: 304 (Schedule 40) Stainless Steel
  • Shutoff Valves: OS&Y Resilient Seated Gate Valves
  • Flood Sensor: Integrated SentryPlus Alert® Technology
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 33°F - 140°F
  • Connections: Grooved Inlet and Outlet
  • Approvals: ASSE 1047, CSA B64.4, cULus, FM Approved

Description

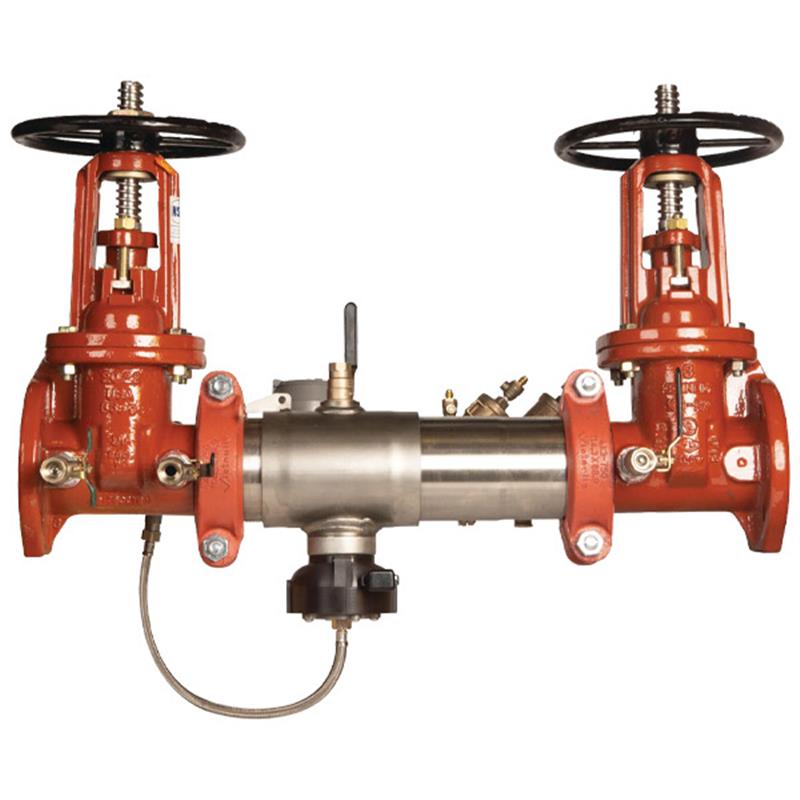

The Ames Fire & Waterworks Colt Series C500 10-inch Reduced Pressure Detector Backflow Preventer (F0191317) provides robust protection for potable water supplies against hazardous cross-connections. Constructed with a 304 stainless steel body, it features OS&Y resilient seated gate valves, a bottom-mounted stainless steel relief valve, and grooved connections for easy installation. An integrated SentryPlus Alert flood sensor detects excessive water discharge, offering enhanced monitoring capabilities when paired with an add-on connection kit. A metered bypass also identifies leaks and unauthorized water usage. This assembly is ASSE 1047, CSA B64.4, cULus Classified, and FM Approved, ensuring reliability for fire protection and non-potable applications.

Help Me Connect

Application and Connections

This 10 inch Reduced Pressure Detector Backflow Preventer is designed for critical fire protection and non-potable service applications where preventing cross-contamination of the potable water supply is essential. Its grooved couplings facilitate straightforward installation and pipe alignment within your system.

The integrated flood sensor with SentryPlus Alert® technology can be activated with an optional add-on connection kit to relay real-time alerts. These kits allow for integration with various communication platforms, including BMS, cellular networks, or the Sensor Control Monitor for connection to BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi. This ensures comprehensive monitoring against water discharge from the relief valve.

View full details

Additional Details

The Colt™ 10 inch Reduced Pressure Detector Backflow Preventer Assembly is designed to prevent the reverse flow of fire protection substances and non-potable water into potable water supplies due to backsiphonage or backpressure. It is ideal for protecting against cross-connections identified as health hazards, such as on fire sprinkler systems and from other contaminants found at the service line entrance.

This assembly features a durable 304 (Schedule 40) stainless steel body with a quick-access sleeve, torsion spring check valves, and outside stem and yoke (OS&Y) resilient seated gate valves. It also includes a corrosive-resistant, bottom-mounted pressure relief valve and bronze body nickel-plated test cocks. A gallon per minute meter is furnished to detect underground leaks and unauthorized water use.

This backflow assembly contains a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve. When paired with an add-on connection kit (sold separately), the sensor is activated to relay alerts for potential flooding events. Connection kit options include BMS, cellular communication, and the Sensor Control Monitor, which enables integration with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi.

A WARNING: It is illegal to use this product in a plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing standard material product, consult your local water authority, building and plumbing codes.

Features

  • Extremely compact design, up to 70% lighter than traditional designs
  • Housing and sleeve constructed from 304 (Schedule 40) stainless steel
  • Groove fittings for integral pipeline adjustment and easy installation
  • Patented link check for lowest pressure loss and unmatched ease of serviceability
  • Replaceable check disc rubber for extended lifespan
  • Bottom-mounted cast stainless steel relief valve
  • Metered bypass to detect leakage or theft of water from the fire sprinkler system
  • Integrated flood sensor with SentryPlus Alert® technology on the relief valve
  • Flood alert feature activated by optional add-on sensor connection kit
  • Includes an optional integrated supervisory switch on each gate valve for the OS&Y model

Specifications

General

  • Product Type: Reduced Pressure Detector Assembly
  • Series: C500
  • Size: 10 inch
  • Configuration: Horizontal, "Z" pattern horizontal, "N" pattern horizontal

Materials

  • Housing & Sleeve Material: 304 (Schedule 40) Stainless Steel
  • Elastomers: EPDM, Silicone, and Buna 'N'
  • Link Checks: Noryl®, Stainless Steel
  • Check Discs: Reversible Silicone or EPDM
  • Test Cocks: Lead Free* Bronze Body
  • Pins & Fasteners: 300 Series Stainless Steel
  • Springs: Stainless Steel
  • Relief Valve: Cast Stainless Steel, Bottom-Mounted

Performance

  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Temperature Range: 33°F - 140°F (0.5°C - 60°C)

Connections & Features

  • Shutoff Valves: Outside Stem and Yoke (OS&Y) Resilient Seated Gate Valves
  • Inlet/Outlet Connections: Grooved
  • Detector: Gallon per minute meter (metered bypass)
  • Flood Sensor: Integrated with SentryPlus Alert® technology
  • Supervisory Switch: Integrated (optional on OS&Y gate valves)

Certificates & Approvals

  • Approved By: Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • Certification: AWWA C511-97
  • Certification: ASSE 1047
  • Certification: CSA B64.4
  • Certification: cULus Classified
  • Certification: FM Approved

FAQs

What is the primary purpose of the Colt C500 Reduced Pressure Detector Backflow Preventer?

Its primary purpose is to protect potable drinking water supplies from contamination by preventing the reverse flow of non-potable water and fire protection substances caused by backsiphonage or backpressure.

What materials are used in the construction of this backflow assembly?

The housing and sleeve are made from 304 (Schedule 40) stainless steel. Elastomers include EPDM, silicone, and Buna 'N', while link checks are Noryl® and stainless steel. The test cocks are Lead Free* bronze body.

How does the integrated flood sensor function?

The integrated flood sensor with SentryPlus Alert® technology detects excessive water discharges from the relief valve. When an add-on connection kit is used, the sensor relays signals to trigger alerts for potential flooding events via BMS, cellular, or Wi-Fi platforms.

What certifications and approvals does this product hold?

This product is ASSE 1047, CSA B64.4, cULus Classified, and FM Approved. It also meets AWWA C511-97 standards and is approved by FCCCHR-USC.

What type of shutoff valves are included with this assembly?

This assembly comes with outside stem and yoke (OS&Y) resilient seated gate valves, which are UL Classified and FM Approved.
