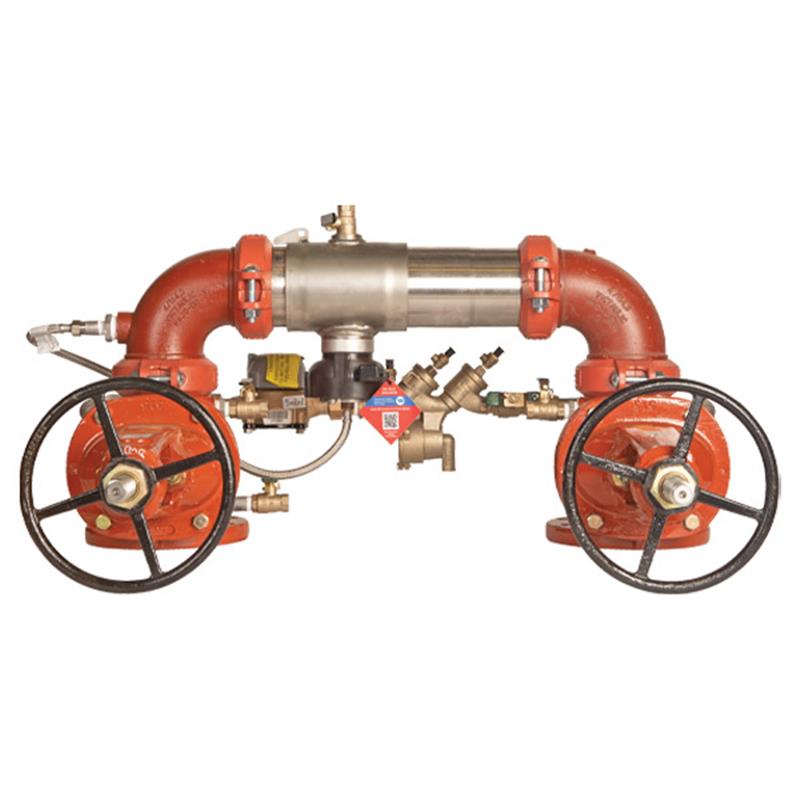

10 C500N-OSY-G-FS

Item Number: F0191329
1 1
$42,059.96
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • Size: 10 Inch
  • Weight: 1164.0 lb
  • Housing Material: 304 Stainless Steel
  • Pattern: N Pattern Horizontal
  • Maximum Working Pressure: 175 PSI
  • Temperature Range: 33°F - 140°F
  • Includes Flood Sensor with SentryPlus Alert® Technology
  • Equipped with OSY Resilient Seated Gate Valves
  • Features a Gallon per Minute Meter
  • Groove Couplings for Easy Installation

Description

The Colt 10 inch Reduced Pressure Detector Backflow Preventer Assembly (F0191329) is designed to protect potable water supplies from dangerous cross-connections, preventing reverse flow from fire protection and non-potable systems. It features a durable 304 stainless steel body, OSY shutoff valves, and grooved couplings for simple installation. A key benefit is the integrated flood sensor with SentryPlus Alert® technology, which detects excessive relief valve discharge and can be activated with an add-on connection kit for remote alerts. The unit also includes a gallon per minute meter for detecting water leakage or unauthorized use. Approved for horizontal N pattern installation, it provides reliable backflow prevention.

Help Me Connect

This 10 inch reduced pressure detector assembly is designed for horizontal N pattern installation and utilizes grooved couplings for easy and efficient connection into your pipeline. These groove fittings facilitate integral pipeline adjustment and simplified installation.

To activate the integrated flood sensor and enable alert notifications, an add-on sensor connection kit is required. Without this kit, the flood sensor will remain a passive component. Various connection kit options are available to integrate the sensor with Building Automation Systems (BAS) via RS-485 Modbus or the Nexa® platform through Wi-Fi, as well as cellular communication.

View full details

Additional Details

This Colt™ 10 inch reduced pressure detector backflow preventer assembly is designed to prevent the reverse flow of fire protection substances and water of non-potable quality from being pumped or siphoned into the potable water supply due to backsiphonage and/or backpressure.

This compact modular design includes a flood sensor with SentryPlus Alert® technology to detect excessive water discharges from the relief valve, monitoring unauthorized water use in fire protection systems.

A WARNING: It is illegal to use this product in a plumbing system providing water for human consumption, such as drinking or dishwashing, in the United States. Before installing standard material product, consult your local water authority, building and plumbing codes.

Construction & Design

  • Features an extremely compact design and is 70% lighter than traditional backflow preventers
  • Entire valve body and closure sleeve is manufactured from 304 (Schedule 40) stainless steel
  • Equipped with OSY (Outside Stem and Yoke) resilient seated gate valves for shutoff
  • Includes a metered bypass with a gallon per minute meter to detect leakage or theft of water
  • Bronze body nickel plated test cocks for easy testing
  • Bottom-mounted cast stainless steel relief valve
  • Patented link check for lowest pressure loss and unmatched ease of serviceability
  • Replaceable check disc rubber
  • Groove couplings allow for easy installation and pipe alignment

Flood Detection System

  • Integrated flood sensor with SentryPlus Alert® technology on the relief valve for detection of continuous discharge
  • When paired with an add-on sensor connection kit, the sensor is activated to relay alerts for potential flooding events
  • Connection kit options include BMS, cellular communication, and the Sensor Control Monitor for integration with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi
  • The OS&Y model includes an option for an integrated supervisory switch on each gate valve

Specifications

  • Product Type: Reduced Pressure Detector Assembly
  • Size: 10 Inch
  • Pattern: N Pattern Horizontal
  • Housing & Sleeve Material: 304 (Schedule 40) Stainless Steel
  • Elastomers: EPDM, Silicone, Buna 'N'
  • Link Checks: Noryl®, Stainless Steel
  • Check Discs: Reversible Silicone or EPDM
  • Test Cocks: Lead Free* Bronze Body, Nickel Plated
  • Pins & Fasteners: 300 Series Stainless Steel
  • Springs: Stainless Steel
  • Shutoff Valves: UL Classified and FM Approved Outside Stem and Yoke Resilient Seated Gate Valves
  • Relief Valve: Bottom-mounted Cast Stainless Steel
  • Meter: Gallon per minute meter
  • Maximum Working Pressure: 175 PSI (12.1 bar)
  • Temperature Range: 33°F - 140°F (0.5°C - 60°C)

Certificates & Approvals

  • Approved by Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • AWWA C511-97
  • ASSE 1047
  • CSA B64.4
  • UL Classified
  • FM Approved (**BFG & OSY Only)

FAQs

What is the primary purpose of this backflow preventer assembly?

This assembly is designed to protect drinking water supplies by preventing dangerous cross-connections, stopping the reverse flow of non-potable substances from fire protection, irrigation, or industrial processing systems due to backsiphonage or backpressure.

What is the function of the flood sensor feature?

The integrated flood sensor with SentryPlus Alert® technology detects excessive water discharges from the relief valve. When paired with an add-on connection kit, it can relay alerts for potential flooding events via various communication methods like BMS, cellular, or Wi-Fi.

What are the primary materials used in the construction of this backflow preventer?

The housing and sleeve are constructed from 304 (Schedule 40) stainless steel. Elastomers are EPDM, silicone, and Buna 'N', link checks are Noryl®, and test cocks are made from Lead Free* bronze body.

What are the connection types for this 10 inch assembly?

This 10 inch Reduced Pressure Detector Assembly features grooved couplings for both the inlet and outlet connections, allowing for straightforward installation and pipe alignment.

What is the maximum operating pressure and temperature range?

The assembly has a maximum operating pressure of 175 PSI (12.1 bar). Its temperature range is 33°F to 140°F (0.5°C to 60°C).
