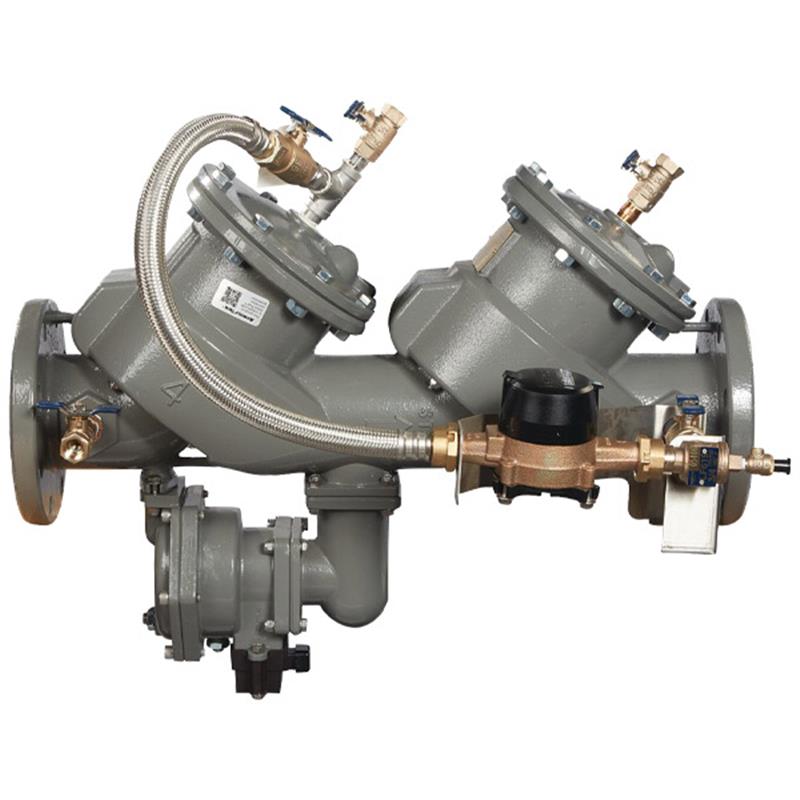

10 LF866-LG-GPM-FS

Item Number: F683155
1 1
$36,511.50
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Size: 10 inch
  • Weight: 386.0 lb
  • Lead Free Construction
  • Backflow Protection: Reduced Pressure Zone Detector Assembly (Type II)
  • Coating: ArmorTek® advanced epoxy coating
  • Relief Valve: Stainless steel seat, flood sensor with SentryPlus Alert® technology
  • Bypass Meter: GPM (gallons per minute) water meter
  • Configuration: Without shutoff valves (LG option)
  • Body Material: Ductile iron Grade 65-45-12

Description

The 10 inch FEBCO MasterSeries LF866 Reduced Pressure Zone Detector Assembly is a lead-free backflow preventer designed to protect potable water systems from high hazard (toxic) fluids. Ideal for industrial installations, it features a durable ductile iron body with a patented ArmorTek® coating for corrosion resistance. This assembly includes a GPM bypass meter and an integrated flood sensor with SentryPlus Alert® technology. Please note, this configuration is supplied without shutoff valves and is not a UL Classified or FM Approved assembly.

Help Me Connect

Flood Sensor Connectivity

  • An add-on connection kit is required to activate the integrated flood sensor. Without this kit, the flood sensor functions as a passive component and does not communicate with other devices.
  • Connection kit options include those for Building Management Systems (BMS) for direct integration.
  • Other options offer cellular communication, or the Sensor Control Monitor for integration with Building Automation Systems (BAS) via RS-485 Modbus or the Nexa® platform through Wi-Fi.
View full details

Additional Details

The 10 inch FEBCO MasterSeries LF866 Lead Free Reduced Pressure Zone Detector Assembly is engineered to safeguard potable water systems against backpressure and backsiphonage from high hazard (toxic) fluids in industrial installations and applications. This assembly is supplied without shutoff valves and includes a GPM (gallons per minute) metered bypass and ball valve test cocks.

Its ductile iron body is fused with patented 3-part ArmorTek® epoxy coating, delivering advanced protection against microbial-induced corrosion (MIC) and exposed metal substrate corrosion. The assembly features replaceable stainless steel check seats and a stainless-steel relief valve seat for enhanced durability and valve life. An integrated flood sensor with SentryPlus Alert® technology detects excessive water discharges from the relief valve.

Important Note: This configuration, supplied without shutoff valves, is specifically noted as NOT an APPROVED ASSEMBLY by FEBCO. UL Classified and FM Approved ratings apply to configurations that include shutoff valves.

Specifications

  • Valve Type: Reduced Pressure Zone Detector Assembly (Type II)
  • Size: 10 inch
  • Body Material: Ductile iron Grade 65-45-12
  • Relief Valve Body Material: Ductile iron Grade 65-45-12
  • Coating: ArmorTek® powder coating (applied to internal and external surfaces)
  • Shutoff Valves: Not included (LG option)
  • Bypass Meter: 5/8" x 3/4" GPM (gallons per minute) water meter, ANSI/AWWA C700 Compliant
  • Relief Valve Sensor: Flood sensor with SentryPlus Alert® technology
  • Check Seats Material: Stainless steel
  • Relief Valve Seat Material: Stainless steel
  • Disc Holder Material: Stainless steel
  • Elastomer Disc Material: Silicone
  • Spring Material: Stainless steel
  • Clamp: AWWA C606 (10" only)
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Minimum Working Pressure: 20 psi (1.4 bar)
  • Hydrostatic Test Pressure: 350 psi (24.1 bar)
  • Hydrostatic Safety Pressure: 700 psi (48.3 bar)
  • Temperature Range: 33°F - 140°F (0.5°C ~ 60°C) continuous
  • Lead Content: Less than 0.25% of lead by weight (wetted surface)
  • Flow Orientation: Horizontal

Certificates & Approvals

  • Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • ASSE 1047
  • IAPMO/CUPC
  • AWWA Standard C511 Compliant
  • End Connections: Compliant to ASME B16.1 Class 125 & AWWA Class D Flange
  • Note: This assembly, configured with "Less shutoff valves" (LG option), is not a UL Classified or FM Approved assembly.

FAQs

What is included with this LF866 assembly?

This assembly includes a 10 inch lead-free ductile iron reduced pressure zone detector backflow preventer with a GPM bypass meter and an integrated flood sensor. It is supplied without shutoff valves.

What type of protection does this backflow preventer provide?

It provides protection against both backpressure and backsiphonage conditions for high hazard and toxic applications in potable drinking water systems, in accordance with local governing water utility codes.

What is the purpose of the flood sensor?

The flood sensor with SentryPlus Alert® technology detects excessive water discharges from the relief valve. When paired with an add-on connection kit, the sensor activates to relay alerts for potential flooding events.

What is the ArmorTek® coating?

ArmorTek® is a patented three-part advanced epoxy system applied to the ductile iron body. It is engineered to reduce microbial-induced corrosion (MIC) and protect exposed metal substrates, enhancing durability and valve life.

What is the maximum operating pressure and temperature range for this assembly?

The maximum working pressure for this assembly is 175 psi (12.1 bar). The continuous temperature range for operation is 33°F to 140°F (0.5°C to 60°C).
