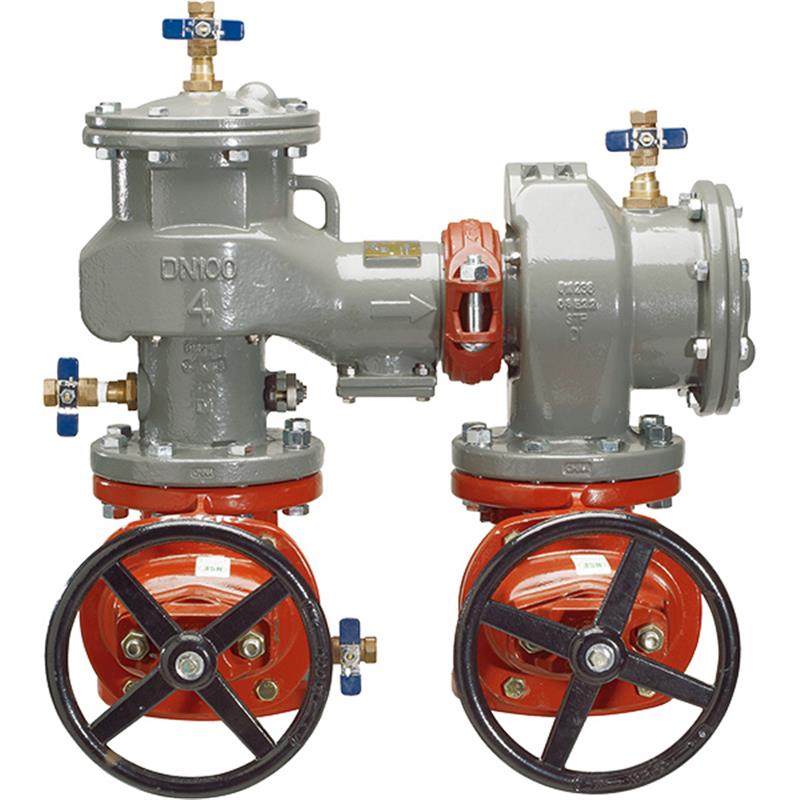

10 LF870V-DNRS DC

Item Number: 0683121
1 1
$36,954.00
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Size: 10 inch
  • Weight: 1525.0 lb
  • Lead Free Construction: Less than 0.25% lead in wetted surface
  • ArmorTek Coating: Advanced epoxy for corrosion and MIC protection
  • Max Working Pressure: 175 PSI
  • Shutoff Valves: Domestic Non-Rising Stem (DNRS)
  • Installation: Horizontal (N-pattern) or Vertical Up (Z-pattern)
  • Serviceability: In-line, no special tools required
  • Approvals: ASSE 1015, UL Classified, FM Approved, IAPMO, AWWA C510, NSF 61-G

Description

The FEBCO 10 inch LF870V Double Check Valve Backflow Preventer Assembly is designed to protect potable water systems from non-health hazard backpressure and backsiphonage. Featuring Lead Free construction with less than 0.25% lead in wetted surfaces and ArmorTek® advanced epoxy coating for superior corrosion resistance. This assembly includes Domestic Non-Rising Stem (DNRS) shutoff valves and supports both horizontal and vertical-up installations. Its modular design allows for easy in-line servicing without special tools. Approved by ASSE, UL, FM, and AWWA, it operates up to 175 PSI.

Help Me Connect

Installation Orientation

The FEBCO LF870V Double Check Valve Assembly supports flexible installation to meet various piping requirements.

  • Horizontal (N-pattern) installations: The assembly is designed for standard horizontal flow. This is the orientation in which the product is typically shipped.
  • Vertical up (Z-pattern) installations: The assembly can also be installed vertically with the inlet and outlet flow moving upwards.

Shutoff Valves

  • This assembly includes Domestic Non-Rising Stem (DNRS) resilient wedge gate valves, which are compliant with AWWA C509 standards. These valves control the flow of water into and out of the assembly.
View full details

Additional Details

This 10 inch FEBCO MasterSeries LF870V Double Check Valve Backflow Preventer Assembly is engineered to prevent the backflow of polluted water from entering potable water supplies due to backsiphonage or backpressure. It is specifically designed for non-health hazard (pollutant) applications in accordance with Local Governing Water Utility Codes.

Its compact modular design facilitates easy maintenance for in-line repairs without special tools. The assembly is ideal for protection in continuous pressure piping applications and at cross-connections identified as non-health hazards.

Key Features

  • In-line serviceable assembly with independently accessed top entry covers
  • Supports both horizontal (N-pattern) and vertical up (Z-pattern) installations
  • Features ArmorTek® coating technology, a patented three-part advanced epoxy system that resists microbial-induced corrosion (MIC) and protects exposed metal substrate
  • Constructed with Lead Free* materials, ensuring wetted surfaces contain less than 0.25% lead by weight
  • Equipped with two in-line independent positive seating check modules with clapper style checks
  • Replaceable seats and disc rubbers for easy maintenance
  • Captured modular spring assembly and captured O-ring design
  • Includes winterization features with disc retainers and valve body drain ports
  • Ductile iron valve body design with stainless steel check components

Shutoff Valves

  • Features Domestic Non-Rising Stem (DNRS) resilient seated gate valves, AWWA C509 compliant

Specifications

  • Product Type: Double Check Valve Assembly
  • Model: LF870V
  • Size: 10 inch
  • Installation Orientation: Horizontal (N-pattern), Vertical Up (Z-pattern)
  • Lead Content: Wetted surface contains less than 0.25% lead by weight
  • Coating: ArmorTek® patented 3-part advanced epoxy system

Materials

  • Main Valve Body: Ductile iron Grade 65-45-12
  • Shutoff Valves: Domestic Non-Rising Stem (DNRS) resilient wedge gate valve AWWA C509
  • Check Seats: Stainless steel
  • Disc Holder: Stainless steel
  • Elastomer Disc: Silicone
  • Spring: Stainless steel
  • Clamp: AWWA C606

Performance

  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Minimum Working Pressure: 10 psi (0.7 bar)
  • Hydrostatic Test Pressure: 350 psi (24.1 bar)
  • Hydrostatic Safety Pressure: 700 psi (48.3 bar)
  • Temperature Range: 33°F - 140°F (0.5°C ~ 60°C) continuous

Certificates & Approvals

  • Approved by Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • ASSE 1015 Listed
  • UL Classified (U.S. & Canada)
  • FM Approved
  • IAPMO
  • AWWA Standard C510 Compliant
  • NSF Certified to NSF/ANSI 61-G
  • End Connections: Compliant to ASME B16.1 Class 125 & AWWA Class D Flange

FAQs

What is the primary function of the FEBCO LF870V Double Check Valve Assembly?

Its primary function is to protect potable drinking water systems from non-health hazard (pollutant) backflow caused by backpressure or backsiphonage, in accordance with local water utility codes.

Is this backflow preventer assembly lead-free?

Yes, the FEBCO LF870V features Lead Free* construction, meaning the wetted surfaces of the product that contact consumable water contain less than 0.25% of lead by weight, complying with low lead installation requirements.

What is ArmorTek® coating technology?

ArmorTek® is a patented three-part advanced epoxy system applied to the iron components of the backflow preventer. It is engineered to reduce microbial-induced corrosion (MIC) and protect exposed metal substrate from electrochemical corrosion.

Can the FEBCO LF870V be installed in different orientations?

Yes, this assembly is approved for both horizontal (N-pattern) installations and vertical up (Z-pattern) installations. It ships standard in the N-pattern orientation.

What type of shutoff valves are included with this assembly?

The 10 inch LF870V assembly comes with domestic Non-Rising Stem (DNRS) resilient seated gate valves, which comply with AWWA C509 standards.
