10 LF870V-OSY DC

Item Number: 0124553
1 1
$39,417.01
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Nominal Size: 10 inch
  • Weight: 1565.0 lb
  • Lead Free Construction (<0.25% lead content)
  • Ductile Iron Body with ArmorTek® Epoxy Coating
  • Maximum Working Pressure: 175 PSI
  • Temperature Range: 33°F – 140°F
  • OS&Y Resilient Wedge Gate Valve Shutoffs
  • In-line Serviceable Design
  • Approved for Horizontal (N-pattern) and Vertical-Up (Z-pattern) Installations

Description

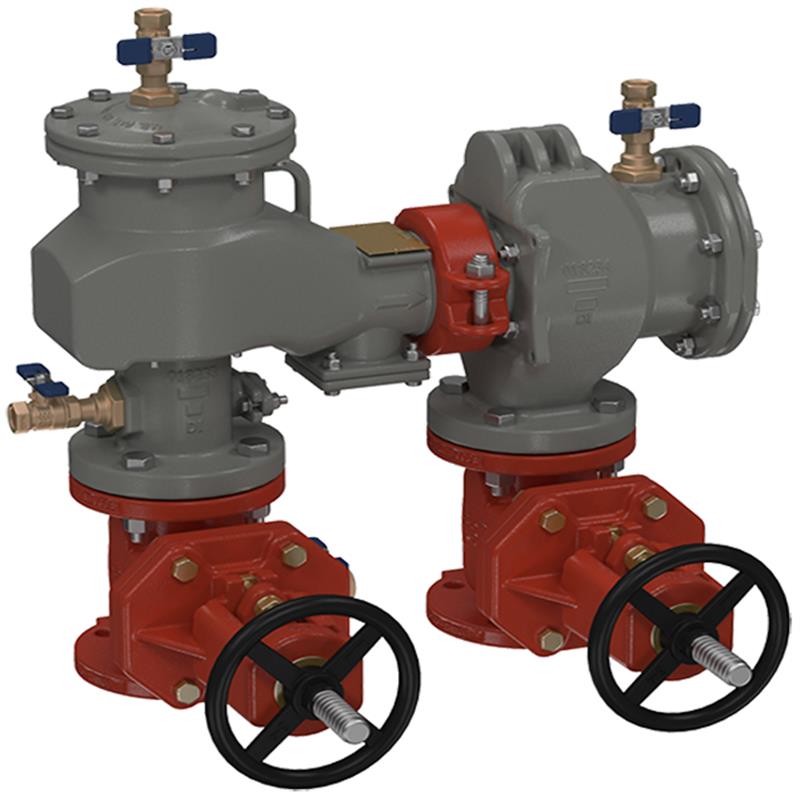

This 10 inch FEBCO MasterSeries LF870V double check valve assembly is a lead-free solution designed to protect potable water systems from non-health hazard pollutants caused by backpressure or backsiphonage. Featuring a durable ductile iron body with ArmorTek® epoxy coating for superior corrosion resistance, it ensures long-lasting performance. The assembly includes two independent clapper-style check valves, OS&Y shutoff valves, and field-replaceable stainless steel seats. It supports both horizontal and vertical-up installations, offering versatility for various applications, and is serviceable without special tools. Item number 0124553.

Help Me Connect

This 10 inch double check valve assembly is designed with flanged end connections for secure installation into your potable water system. It is compliant with ASME B16.1 Class 125 and AWWA Class D Flange standards, ensuring compatibility with standard piping systems. The assembly is approved for both horizontal (N-pattern) and vertical-up (Z-pattern) installations.

View full details

Additional Details

The 10 inch FEBCO MasterSeries LF870V Double Check Valve Assembly is engineered to protect potable water systems from non-health hazard pollutants due to backpressure and backsiphonage.

It is suitable for containment at the service line entrance or for non-health hazard cross-connections.

Construction & Design

  • Features a durable ductile iron body coated with ArmorTek®, a patented three-part advanced epoxy system designed to resist microbial-induced corrosion (MIC) and protect exposed metal substrates.
  • Equipped with two independent clapper-style check modules with replaceable stainless steel seats and silicone disc rubbers.
  • Includes OS&Y (Outside Stem and Yoke) resilient wedge seated gate valve shutoff valves and ball valve test cocks.
  • Designed for in-line servicing without special tools, accessible through independent top entry covers.
  • Supports both horizontal (N-pattern) and vertical-up (Z-pattern) installations.
  • Lead Free* construction complies with low lead installation requirements.

Features

  • In-line serviceable assembly
  • Horizontal N-pattern installations
  • Vertical up Z-pattern installations
  • No special tools required for servicing
  • Captured modular spring assembly
  • Reversible and replaceable discs
  • Field replaceable seats
  • Ductile iron valve body design
  • Stainless steel check components
  • ArmorTek coating technology to resist corrosion of internals
  • Winterization feature with disc retainers and valve body drain ports
  • Clapper check assembly
  • Commonality between 1st and 2nd check components
  • Captured O-ring design

Specifications

  • Product Type: Double Check Valve Assembly
  • Model: LF870V-OSY
  • Nominal Size: 10 inch
  • Wetted Surface Lead Content: Less than 0.25%
  • Main Valve Body Material: Ductile Iron Grade 65-45-12
  • Coating: ArmorTek Powder Coating (Internal & External Surfaces)
  • Shutoff Valves: OS&Y Resilient Wedge Gate Valve (AWWA C515)
  • Check Seat Material: Stainless Steel
  • Disc Holder Material: Stainless Steel
  • Elastomer Disc Material: Silicone
  • Spring Material: Stainless Steel
  • Clamp Material: AWWA C606

Performance Data

  • Maximum Working Pressure: 175 PSI (12.1 bar)
  • Minimum Working Pressure: 10 PSI (0.7 bar)
  • Hydrostatic Test Pressure: 350 PSI (24.1 bar)
  • Hydrostatic Safety Pressure: 700 PSI (48.3 bar)
  • Temperature Range: 33°F – 140°F (0.5°C – 60°C) Continuous

Certificates & Approvals

  • The Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCC-HR-USC)
  • ASSE 1015 Listed
  • UL Classified (U.S. & Canada)
  • FM Approved
  • IAPMO
  • AWWA Standard C510 Compliant
  • End Connections: Compliant to ASME B16.1 Class 125 & AWWA Class D Flange

FAQs

What is the primary function of the FEBCO LF870V Double Check Valve Assembly?

The primary function is to prevent backflow of non-health hazard (pollutant) substances into a potable drinking water system, protecting against conditions of backpressure and backsiphonage.

What material is the main valve body made from, and how is it protected?

The main valve body is constructed from ductile iron (Grade 65-45-12) and is protected with ArmorTek®, a patented three-part advanced epoxy coating system designed to resist microbial-induced corrosion (MIC) and protect exposed metal.

What are the acceptable installation orientations for this backflow preventer?

This assembly is approved for both horizontal (N-pattern) and vertical-up (Z-pattern) installations, providing flexibility for different site requirements.

What is the maximum operating pressure and temperature range for this device?

The maximum working pressure for this assembly is 175 PSI (12.1 bar), and it operates continuously within a temperature range of 33°F to 140°F (0.5°C to 60°C).

Are special tools required for servicing the check modules?

No, servicing of both check modules does not require any special tools. They can be accessed through independent top entry covers for convenience.
