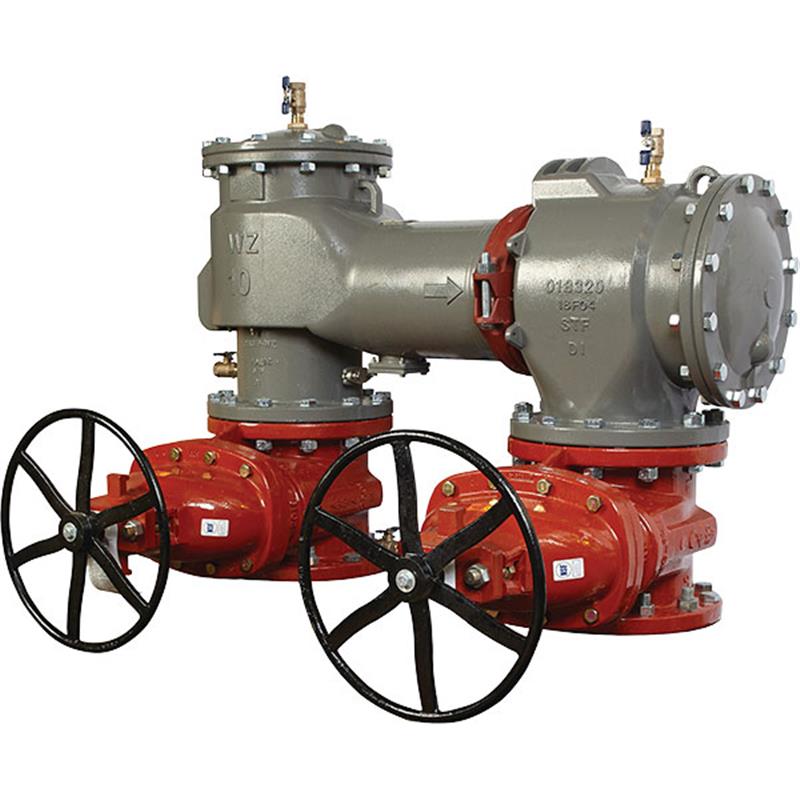

10 LF870W-LG DC

Item Number: 88005401
1 1
$24,641.24
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • 10 Inch N-Pattern Double Check Valve Assembly
  • Weight: 770.0 lb
  • Lead Free Construction: Less than 0.25% lead by weight
  • ArmorTek Coating: Resists microbial-induced corrosion (MIC)
  • Max. Working Pressure: 175 psi
  • Main Valve Body: Ductile Iron Grade 65-45-12
  • Check Components: Stainless Steel
  • Temperature Range: 33°F - 140°F
  • No Special Tools Required for Servicing

Description

The FEBCO 10 Inch Lead Free Double Check Valve Backflow Preventer Assembly, SKU 88005401, is designed for non-health hazard applications on potable water systems. It prevents pollutant backflow due to backsiphonage or backpressure. This N-pattern assembly features a durable ductile iron body with ArmorTek epoxy coating, providing advanced protection against microbial-induced corrosion. With stainless steel check components and replaceable seats, it offers reliable performance. It handles a maximum working pressure of 175 psi and operates in a continuous temperature range of 33°F to 140°F.

Help Me Connect

Connections

This 10 inch LF870W Double Check Valve Assembly features flanged end connections compliant to ASME B16.1 Class 125 and AWWA Class D Flange standards. It is designed for drop-in replacement of competitor's valves with similar dimensions. The assembly's N-pattern orientation is specifically designed for horizontal installations.

View full details

Additional Details

The FEBCO MasterSeries LF870W Double Check Valve Assembly is designed to prevent backflow of pollutants into potable water systems for non-health hazard applications, specifically in an N-pattern orientation.

This 10 inch assembly is ideal for protection against backsiphonage and backpressure conditions at cross-connections or service line entrances where local codes mandate protection from non-potable quality water.

Features

  • Lead Free* construction (wetted surface contains less than 0.25% of lead by weight)
  • Designed for drop-in replacement of competitor's valves
  • In-line serviceable assembly
  • No special tools required for servicing
  • Captured modular spring assembly
  • Reversible and replaceable discs
  • Field replaceable seats
  • Ductile iron valve body design
  • Stainless steel check components
  • ArmorTek coating technology to resist corrosion of internals, including microbial-induced corrosion (MIC)
  • Winterization feature with disc retainers and valve body drain ports
  • Clapper check assembly
  • Commonality between 1st and 2nd check components
  • Captured O-ring design

Always inquire with governing authorities for local installation requirements and thoroughly read all installation instructions and product safety information before beginning installation.

Specifications

  • Size: 10 Inch
  • Pattern: N-Pattern (Horizontal)
  • Assembly Type: Double Check Valve Backflow Preventer
  • Shutoff Valves: Less Shutoff Valves (LG)
  • Main Valve Body Material: Ductile Iron Grade 65-45-12
  • Coating: ArmorTek Powder Coating (internal and external surfaces)
  • Check Seat Material: Stainless Steel
  • Disc Holder Material: Stainless Steel
  • Elastomer Disc Material: Silicone
  • Spring Material: Stainless Steel
  • Clamp Material: AWWA C606
  • Max. Working Pressure: 175 psi (12.1 bar)
  • Min. Working Pressure: 10 psi (0.7 bar)
  • Hydrostatic Test Pressure: 350 psi (24.1 bar)
  • Hydrostatic Safety Pressure: 700 psi (48.3 bar)
  • Temperature Range: 33°F - 140°F (0.5°C ~ 60°C) continuous

Certificates & Approvals

  • Approved by: Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • ASSE 1015 Listed
  • IAPMO
  • AWWA Standard C510 Compliant
  • End Connections: Compliant to ASME B16.1 Class 125 & AWWA Class D Flange
  • NSF Certified to NSF/ANSI 61-G

FAQs

What is the primary use of this 10 inch backflow preventer?

This assembly is primarily used on potable drinking water systems to prevent the backflow of non-health hazard pollutants due to backsiphonage or backpressure conditions, especially at cross-connections or service line entrances.

What does "Lead Free" mean for this product?

"Lead Free" means that the wetted surface of this product, which contacts consumable water, contains less than 0.25% of lead by weight, complying with low lead installation requirements.

What is ArmorTek coating and what are its benefits?

ArmorTek is a patented three-part advanced epoxy coating system applied to the iron components of the backflow preventer. It is engineered to reduce microbial-induced corrosion (MIC) and protect exposed metal substrate.

What is the maximum operating pressure for this backflow preventer?

The maximum working pressure for this 10 inch double check valve backflow preventer assembly is 175 psi (12.1 bar).

Does this assembly include shutoff valves?

No, this specific model (LG) is supplied "Less Shutoff Valves." Shutoff valves would need to be procured separately if required for the installation.
