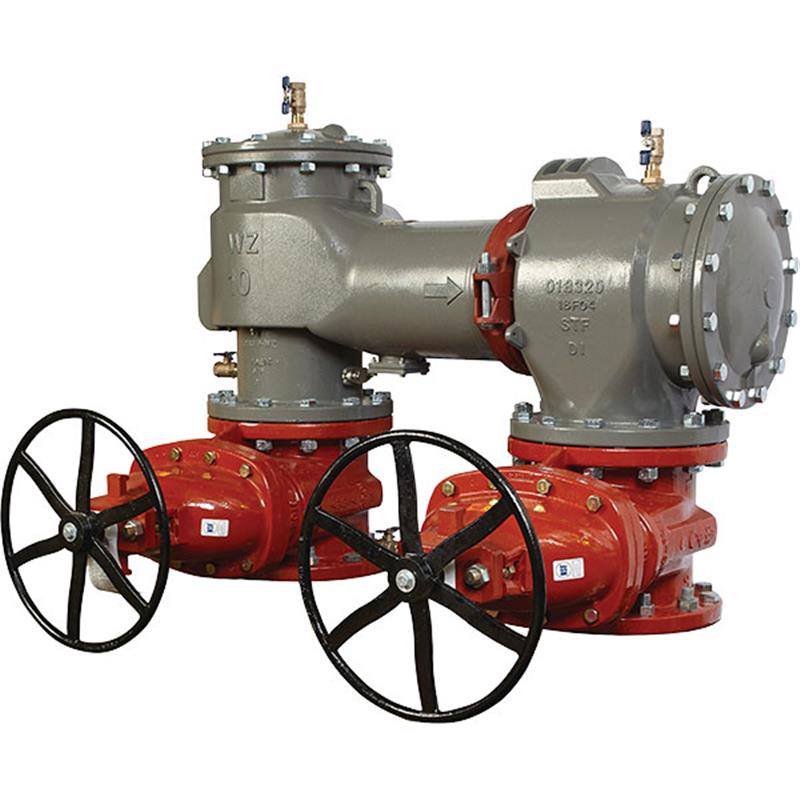

10 LF870W-NRS DC

Item Number: 88005403
1 1
$36,954.00
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Size: 10 inch
  • Weight: 1586.0 lb
  • Lead Free Construction: Yes (less than 0.25% lead)
  • Main Valve Body Material: Ductile iron Grade 65-45-12
  • Corrosion Protection: ArmorTek advanced epoxy system
  • Max. Working Pressure: 175 psi
  • Temperature Range: 33°F - 140°F continuous
  • Shutoff Valves: Non-rising stem resilient wedge gate valves
  • Check Components: Stainless steel, replaceable seats

Description

This 10 inch lead free MasterSeries double check valve backflow preventer assembly protects potable water systems from non-health hazard pollutants due to backsiphonage or backpressure. Its ductile iron body is coated with ArmorTek, an advanced epoxy system designed to resist microbial and exposed metal corrosion. Featuring non-rising stem shutoff valves and stainless steel check components, this assembly is designed for drop-in replacement in N-pattern or Z-pattern installations. It operates at a maximum working pressure of 175 psi and is suitable for temperatures from 33°F to 140°F. The assembly complies with low lead requirements and multiple industry standards including ASSE 1015, UL, and FM.

Help Me Connect

Installation & Compatibility

  • This assembly is designed for drop-in replacement of competitor's valves in both N-pattern (LF870W) and Z-pattern (LF870WZ) orientations.
  • It is intended for installation on the potable water supply at each point of cross-connection to protect against back-pressure and backsiphonage conditions for non-health hazard (pollutant) applications.
  • The end connections are compliant with ASME B16.1 Class 125 and AWWA Class D Flange standards.
View full details

Additional Details

This 10 inch lead free MasterSeries Double Check valve assembly is specifically designed to prevent the backflow of pollutants that are objectionable but not toxic from entering the potable water supply due to backsiphonage and/or backpressure. It is ideal for protecting non-health hazard cross-connections or for containment at the service line entrance.

Features

  • Lead Free* construction to comply with low lead installation requirements. *The wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight.
  • Designed for drop-in replacement of competitor's valves in either N-pattern (LF870W) or Z-pattern (LF870WZ) orientation.
  • In-line serviceable assembly for easier maintenance.
  • No special tools required for servicing check modules, which are accessed through independent top entry covers.
  • Includes non-rising stem (NRS) resilient wedge gate valves.
  • Clapper check assembly with two independently acting check modules.
  • Commonality between 1st and 2nd check components.
  • Captured O-ring design and captured modular spring assembly.
  • Winterization feature with disc retainers and valve body drain ports.

Construction & Materials

  • Main valve body is constructed from ductile iron Grade 65-45-12.
  • Check seats are stainless steel and are replaceable.
  • Disc holders are stainless steel with silicone elastomer discs.
  • Springs are stainless steel.
  • Clamps comply with AWWA C606.

Corrosion Protection

  • Iron components are coated with ArmorTek®, a patented three-part advanced epoxy system engineered to reduce microbial-induced corrosion (MIC) and protect exposed metal substrate.
  • ArmorTek coating is applied to both internal and external surfaces.

Specifications

  • Product Type: Double Check Valve Assembly
  • Size: 10 inch
  • Model: LF870W/WZ

Pressure & Temperature

  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Minimum Working Pressure: 10 psi (0.7 bar)
  • Hydrostatic Test Pressure: 350 psi (24.1 bar)
  • Hydrostatic Safety Pressure: 700 psi (48.3 bar)
  • Temperature Range: 33°F - 140°F (0.5°C ~ 60°C) continuous

Materials

  • Main Valve Body: Ductile iron Grade 65-45-12
  • Coating: ArmorTek powder coating
  • Shutoff Valves: NRS resilient wedge gate valve AWWA C509 (Standard)
  • Check Seats: Stainless steel
  • Disc Holder: Stainless steel
  • Elastomer Disc: Silicone
  • Spring: Stainless steel
  • Clamp: AWWA C606

Certificates & Approvals

  • Approved by: Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • ASSE 1015 Listed
  • UL Classified (U.S. & Canada)
  • FM Approved
  • IAPMO
  • AWWA Standard C510 Compliant
  • NSF Certified to NSF/ANSI 61-G
  • End Connections: Compliant to ASME B16.1 Class 125 & AWWA Class D Flange

FAQs

What is the primary purpose of this 10 inch backflow preventer assembly?

This backflow preventer is designed to prevent the backflow of non-health hazard pollutants into the potable water supply due to backsiphonage or backpressure. It's ideal for non-health hazard cross-connections or service line containment.

What does 'Lead Free' mean for this product?

The 'Lead Free' designation means that the wetted surface of this product, which contacts consumable water, contains less than 0.25% of lead by weight, complying with low lead installation requirements.

What is the maximum working pressure for this 10 inch assembly?

This double check valve assembly has a maximum working pressure of 175 psi (12.1 bar), making it suitable for various potable water system applications.

Can this backflow preventer be installed in different orientations?

Yes, this assembly is designed to allow drop-in replacement in either the N-pattern (LF870W) for horizontal installations or Z-pattern (LF870WZ) for vertical up installations.

What type of corrosion protection does this assembly feature?

The iron components of this assembly are coated with ArmorTek®, a patented three-part advanced epoxy system. This technology is engineered to reduce microbial-induced corrosion (MIC) and protect exposed metal substrates.
