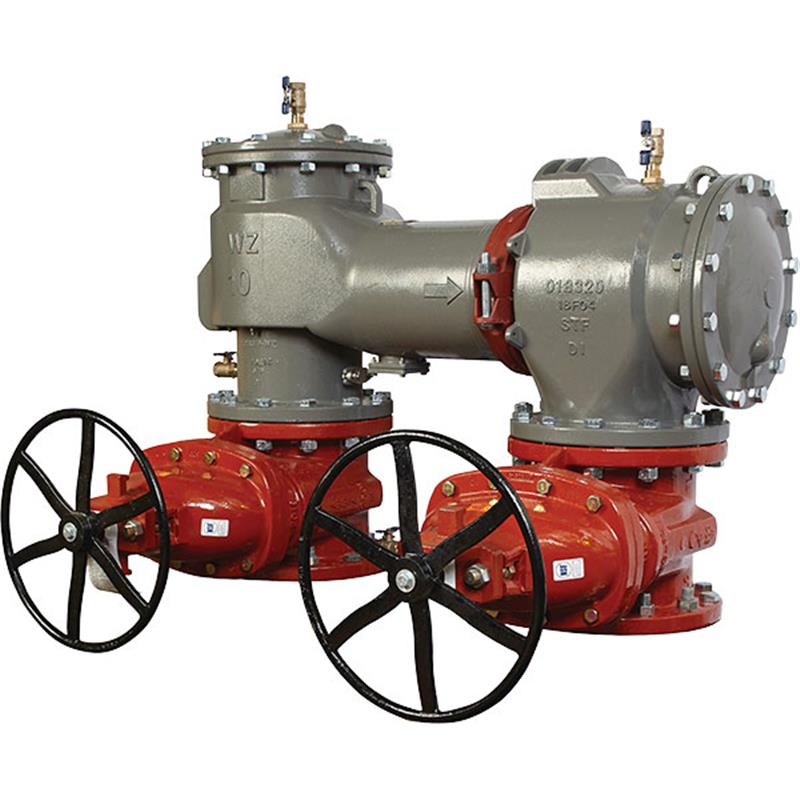

10 LF870WZ-LG DC

Item Number: 88007317
1 1
$24,641.24
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Size: 10 inch
  • Weight: 775.0 lb
  • Lead-Free Design
  • Body Material: Ductile Iron
  • Corrosion Resistant: ArmorTek Epoxy Coating
  • Maximum Working Pressure: 175 PSI
  • Temperature Range: 33°F to 140°F
  • Stainless Steel Check Modules
  • Z-Pattern Lay Length for Competitor Replacement

Description

This 10 inch FEBCO LF870WZ-LG DC Double Check Valve Backflow Preventer protects potable water from non-health hazard pollutants caused by backsiphonage or backpressure. Its lead-free design features a durable ArmorTek epoxy-coated ductile iron body and stainless steel check modules for corrosion resistance and longevity. Engineered with a Z-pattern lay length, it provides a convenient drop-in replacement for competitor valves. With a maximum working pressure of 175 PSI and continuous operation from 33°F to 140°F, it ensures reliable performance in commercial and industrial non-health hazard applications. Item number 88007317.

Help Me Connect

Connections

This 10 inch double check valve backflow preventer assembly features flanged end connections compliant with ASME B16.1 Class 125 and AWWA Class D Flange standards. Its unique Z-pattern lay length is specifically engineered for direct drop-in replacement, simplifying upgrades or maintenance for existing Z-pattern valves from other manufacturers.

View full details

Additional Details

The 10 inch FEBCO LF870WZ-LG DC Double Check Valve Backflow Preventer Assembly is engineered to safeguard potable water supplies from contamination by non-health hazard pollutants. This lead-free device prevents backflow caused by backsiphonage or backpressure in non-health hazard applications, making it ideal for cross-connection protection or service line containment.

Always check with local water authorities for specific non-health hazard application requirements.

Key Features

  • Features a longer Z-pattern lay-length for direct drop-in replacement of competitor’s Z-pattern valves.
  • Constructed with an epoxy-coated ductile iron body using ArmorTek corrosion-resistant technology for enhanced durability on both internal and external surfaces.
  • Includes two independent stainless steel check modules with clapper checks, featuring replaceable seats and disc rubbers for easy maintenance.
  • Equipped with test cocks for easy field testing and verification.
  • Designed for configurable installations, compatible with N-pattern installation practices.

Construction & Design

  • MasterSeries® configurable design.
  • Without integral shutoff valves (LG model).
  • In-line, serviceable assembly with two check valves.
  • All internal parts are accessible from the top for simple maintenance.

Specifications

  • Size: 10 inch
  • Model: LF870WZ-LG DC
  • Assembly Type: Double Check Valve Backflow Preventer
  • Lay Length: Z-Pattern Competitor Drop-In Replacement
  • Body Material: Ductile Iron Grade 65-45-12
  • Body Coating: ArmorTek Powder Coating, Epoxy Coated
  • Check Seats: Stainless Steel
  • Disc Holder: Stainless Steel
  • Elastomer Disc: Silicone
  • Spring: Stainless Steel
  • Clamp: AWWA C606
  • Max. Working Pressure: 175 PSI (12.1 bar)
  • Min. Working Pressure: 10 PSI (0.7 bar)
  • Hydrostatic Test Pressure: 350 PSI (24.1 bar)
  • Hydrostatic Safety Pressure: 700 PSI (48.3 bar)
  • Temperature Range: 33°F – 140°F (0.5°C – 60°C) continuous

Connections

  • End Connections: Flanged
  • Connection Compliance: ASME B16.1 Class 125 & AWWA Class D Flange

Certificates & Approvals

  • Approved by: Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • Listing: ASSE 1015 Listed
  • Certified: NSF/ANSI 61-G
  • Standard Compliance: IAPMO
  • Standard Compliance: AWWA Standard C510 Compliant
  • Note: UL Classified and FM Approved apply to assemblies configured with OS&Y RW gate valves, not this 'LG' model.

FAQs

What is the primary function of this 10 inch LF870WZ-LG DC backflow preventer?

This backflow preventer is designed to protect potable water from non-health hazard pollutants by preventing backflow due to backsiphonage or backpressure. It is used in commercial and industrial applications where cross-connection control is required for non-toxic substances.

What does "Z-pattern lay length" mean for this device?

The Z-pattern lay length indicates that this assembly is specifically designed to be a direct drop-in replacement for competitor Z-pattern backflow prevention valves. This feature simplifies installation and upgrades by matching existing pipeline configurations without extensive modifications.

Is this backflow preventer supplied with shutoff valves?

No, this "LG" model (Less Shutoff Valves) is supplied without integral shutoff valves. If shutoff valves are required for your specific installation or local codes, they would need to be procured and installed separately.

What is the maximum operating pressure and temperature range for this unit?

The maximum working pressure for this 10 inch backflow preventer is 175 PSI (12.1 bar). It is designed to operate continuously within a temperature range of 33°F to 140°F (0.5°C to 60°C), ensuring consistent performance in varying conditions.

What material is the main valve body made from, and how is it protected?

The main valve body is constructed from durable Ductile Iron Grade 65-45-12. It is protected with an ArmorTek powder coating, which is epoxy coated on both internal and external surfaces for superior corrosion resistance and extended lifespan in harsh environments.
