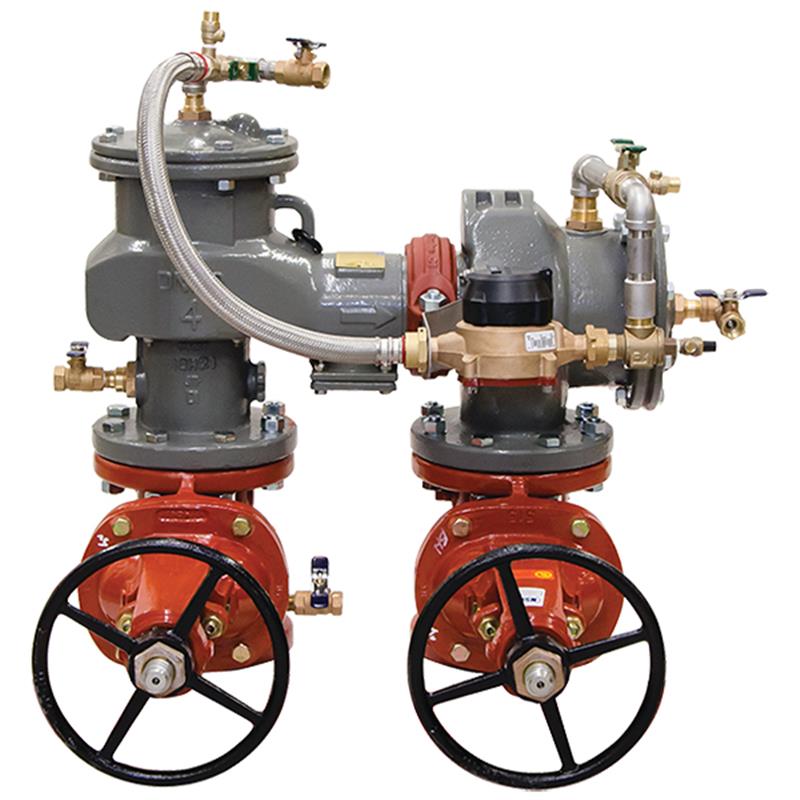

10 LF876V-DOSY-GPM

Item Number: 0124493
1 1
$52,702.57
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Size: 10 inch
  • Weight: 1220.0 lb
  • Lead Free: Yes, wetted surfaces < 0.25% lead
  • Body Material: Ductile Iron Grade 65-45-12
  • Coating: ArmorTek® advanced epoxy for corrosion resistance
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 33°F to 140°F
  • Bypass: 5/8"x3/4" GPM Water Meter for leak detection
  • Installation: Configurable N-Pattern and Z-Pattern

Description

This 10 inch MasterSeries® LF876V double check detector backflow preventer assembly is designed for fire protection and potable water systems. It prevents the reverse flow of polluted water due to backsiphonage or backpressure in non-health hazard applications. Key features include a durable ductile iron body with ArmorTek® advanced epoxy coating for corrosion resistance, lead-free construction, and a 5/8"x3/4" GPM metered bypass for detecting leaks or unauthorized water usage. The configurable N-Pattern and Z-Pattern design allows for versatile installation. It offers a maximum working pressure of 175 psi and in-line serviceability without special tools.

Help Me Connect

Installation Guidance

  • Designed for installation on potable water supply systems and fire sprinkler systems to prevent backflow.
  • Approved for both horizontal N-pattern and vertical-up Z-pattern installations.

Connection Compatibility

  • End connections are compliant with ASME B16.1 Class 125 and AWWA Class D Flange standards.
View full details

Additional Details

This 10 inch lead free MasterSeries® double check detector backflow preventer assembly is designed to prevent the reverse flow of polluted water into the potable water supply due to backsiphonage and/or backpressure. It is suitable for fire protection systems to detect system leakage or unauthorized water use.

This assembly consists of an epoxy coated ductile iron body, two in-line independent check valves, replaceable check seats, ball valve test cocks, a gallons per minute (GPM) metered bypass, and outside stem and yoke (OS&Y) resilient seated domestic gate valves. It supports both N-pattern and Z-pattern configurations to optimize installation.

Main Valve Features

  • In-line serviceable assembly
  • Supports horizontal N-pattern and vertical-up Z-pattern installations
  • No special tools required for servicing
  • Captured modular spring assembly
  • Reversible and replaceable discs
  • Field replaceable seats
  • Ductile iron valve body design
  • Stainless steel check components
  • ArmorTek® coating technology to resist corrosion of internals
  • Winterization feature with disc retainers and valve body drain ports
  • Clapper check assembly
  • Commonality between 1st and 2nd check components
  • Captured O-ring design

Auxiliary Bypass Features

  • Compact bypass design; remains in main valve assembly profile
  • In-line serviceable 3/4 inch check assembly
  • No special tools required for servicing
  • Field replaceable seat and disc
  • Designed to detect potential underground water leaks
  • Designed to detect unauthorized water usage

Specifications

General

  • Product Type: Double Check Detector Backflow Preventer Assembly (Type II)
  • Brand: FEBCO MasterSeries® LF876V
  • Size: 10 inch
  • Lead Free: Yes (wetted surface contains less than 0.25% lead by weight)
  • Installation Orientation: Horizontal (N-Pattern), Vertical-Up (Z-Pattern)
  • Shutoff Valves: Domestic OS&Y Resilient Wedge Gate Valves (UL/FM Approved, AWWA C515 Compliant)
  • Bypass Meter: 5/8 inch x 3/4 inch Water Meter (ANSI/AWWA Standard C700 Compliant)

Materials

  • Main Valve Body: Ductile Iron Grade 65-45-12
  • Coating: ArmorTek® Powder Coating (internal and external surfaces)
  • Check Seats: Stainless steel
  • Disc Holder: Stainless steel
  • Elastomer Disc: Silicone
  • Spring: Stainless steel
  • Clamp: AWWA C606

Pressure & Temperature

  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Minimum Working Pressure: 10 psi (0.7 bar)
  • Hydrostatic Test Pressure: 350 psi (24.1 bar)
  • Hydrostatic Safety Pressure: 700 psi (48.3 bar)
  • Temperature Range: 33°F to 140°F (0.5°C to 60°C) continuous

Certificates & Approvals

  • Approved by the Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • ASSE 1048 Listed
  • UL Classified (U.S. & Canada)
  • FM Approved
  • IAPMO/CUPC
  • AWWA Standard C510 Compliant
  • End Connections: Compliant to ASME B16.1 Class 125 & AWWA Class D Flange
  • CSA B64.5

FAQs

What is the primary purpose of this backflow preventer?

This 10 inch FEBCO MasterSeries LF876V Double Check Detector Backflow Preventer is designed to prevent polluted water from flowing back into the potable water supply due to backsiphonage or backpressure, primarily in fire protection and drinking water systems.

Is this backflow preventer suitable for lead-free applications?

Yes, this product is lead-free. The wetted surfaces of this backflow preventer that contact consumable water contain less than 0.25% lead by weight, meeting lead-free requirements.

What type of coating is used for corrosion protection?

The backflow preventer features ArmorTek®, a patented three-part advanced epoxy coating system. This technology is engineered to reduce both microbial-induced corrosion (MIC) and general exposed metal substrate corrosion.

What are the maximum operating pressure and temperature limits?

This assembly has a maximum working pressure of 175 psi (12.1 bar). It can operate continuously within a temperature range of 33°F to 140°F (0.5°C to 60°C).

How does the detector bypass assembly function?

The detector bypass assembly includes a 5/8"x3/4" GPM water meter. This bypass is designed to detect potential underground water leaks or unauthorized water usage within the system.
