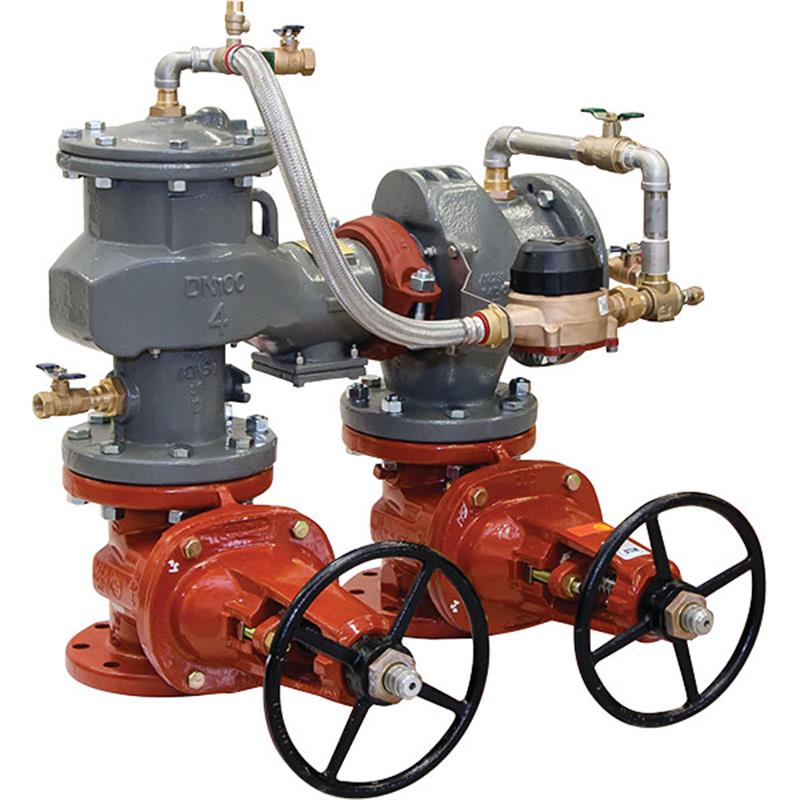

10 LF876W-DOSY-GPM

Item Number: 88007328
1 1
$52,700.25
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Size: 10 Inch
  • Weight: 1641.0 lb
  • Body Material: Lead Free Ductile Iron with ArmorTek Coating
  • Maximum Working Pressure: 175 psi
  • Bypass Meter: Gallons per Minute (GPM)
  • Shutoff Valves: Domestic OSY Resilient Wedge Gate Valve
  • Lay Length: Competitor N-Pattern Drop-in Replacement
  • Certifications: ASSE 1048, UL Classified, FM Approved
  • Serviceability: In-line without special tools

Description

This 10 inch Lead Free MasterSeries double check detector backflow preventer assembly is engineered to prevent polluted water from re-entering the potable water supply due to backpressure or backsiphonage. It is ideal for fire protection systems, offering leakage and unauthorized water usage detection via its GPM metered bypass. Constructed from durable ductile iron with ArmorTek coating for superior corrosion resistance, this assembly features a 175 psi maximum working pressure and domestic OSY shutoff valves. Its design allows for direct drop-in replacement of competitor N-pattern valves and is approved by ASSE, UL, and FM.

Help Me Connect

This 10 inch double check detector backflow preventer assembly is designed for versatility in installation and connection. It offers a longer lay-length for direct drop-in replacement of competitor’s N-pattern valves.

Installation Orientation

  • Horizontal (N-Pattern): Approved by FCCCHR-USC, ASSE, cULus, FM, IAPMO/CUPC for 4" – 10" sizes.
  • Vertical Up (Z-Pattern): Approved by FCCCHR-USC, ASSE, cULus, FM, IAPMO/CUPC for 4" – 10" sizes.

The assembly is shipped in the standard N-pattern orientation. End connections are compliant to ASME B16.1 Class 125 & AWWA Class D Flange standards.

View full details

Additional Details

This 10 inch lead free MasterSeries double check detector backflow preventer assembly prevents the reverse flow of polluted water from entering the potable water supply due to backsiphonage or backpressure.

It is designed for installation on fire protection systems to provide indications of system leakage or unauthorized water use.

Construction & Design

  • Features an epoxy coated ductile iron body with ArmorTek coating technology for advanced corrosion resistance, including protection against microbial-induced corrosion (MIC).
  • Designed for drop-in replacement of competitor's N-pattern valves with a longer lay-length.
  • Includes two in-line independent check valves with replaceable check seats and disc rubbers, requiring no special tools for servicing.
  • Equipped with ball valve test cocks and a gallons per minute (GPM) metered bypass for detecting system leakage or unauthorized water usage.
  • Supplied with outside stem and yoke (OS&Y) resilient seated domestic gate valves.

Main Valve Features

  • In-line serviceable assembly
  • Captured modular spring assembly
  • Reversible and replaceable discs
  • Field replaceable seats
  • Winterization feature with disc retainers and valve body drain ports

Auxiliary Bypass Features

  • Compact design; remains in main valve assembly profile
  • In-line serviceable ¾ inch check assembly
  • Field replaceable seat and disc
  • Detect potential underground water leaks
  • Detect unauthorized water usage

Specifications

  • Size: 10 Inch
  • Type: Double Check Detector Backflow Preventer Assembly
  • Body Material: Ductile Iron Grade 65-45-12
  • Coating: ArmorTek Powder Coating
  • Lay Length: Competitor N-Pattern
  • Bypass Meter: Gallons per Minute (GPM)
  • Shutoff Valves: Domestic OSY Resilient Wedge Gate Valve
  • Check Seats: Stainless Steel
  • Disc Holder: Stainless Steel
  • Elastomer Disc: Silicone
  • Spring: Stainless Steel
  • Clamp: AWWA C606
  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Minimum Working Pressure: 10 psi (0.7 bar)
  • Temperature Range: 33°F - 140°F (0.5°C ~ 60°C) continuous
  • Lead Free: Yes (wetted surfaces contain less than 0.25% lead by weight)

Certificates & Approvals

  • Approved by the Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • ASSE 1048 Listed
  • UL Classified (U.S. & Canada)
  • FM Approved
  • IAPMO/CUPC
  • AWWA Standard C510 Compliant
  • B64.5
  • End Connections: Compliant to ASME B16.1 Class 125 & AWWA Class D Flange

FAQs

What is the primary function of the FEBCO MasterSeries LF876W/WZ double check detector assembly?

This assembly is designed to prevent the reverse flow of polluted water into the potable drinking water supply due to backsiphonage or backpressure conditions. It also monitors fire protection systems for leaks or unauthorized water usage.

What kind of corrosion protection does this backflow preventer offer?

The ductile iron body and other iron components are coated with ArmorTek, a patented three-part advanced epoxy system. This technology is engineered to reduce microbial-induced corrosion (MIC) and protect exposed metal surfaces.

Can this assembly replace competitor backflow preventers?

Yes, this FEBCO MasterSeries LF876W/WZ assembly is specifically designed to provide a drop-in replacement for competitor's valves with N-pattern lay lengths.

What is the purpose of the GPM metered bypass on this backflow preventer?

The gallons per minute (GPM) metered bypass line is designed to detect potential underground water leaks within the system or unauthorized water usage, providing an important monitoring feature.

What are the approved installation orientations for this backflow preventer?

This assembly is approved for both horizontal (N-pattern) and vertical up (Z-pattern) installations. It is typically shipped in the standard N-pattern orientation.
