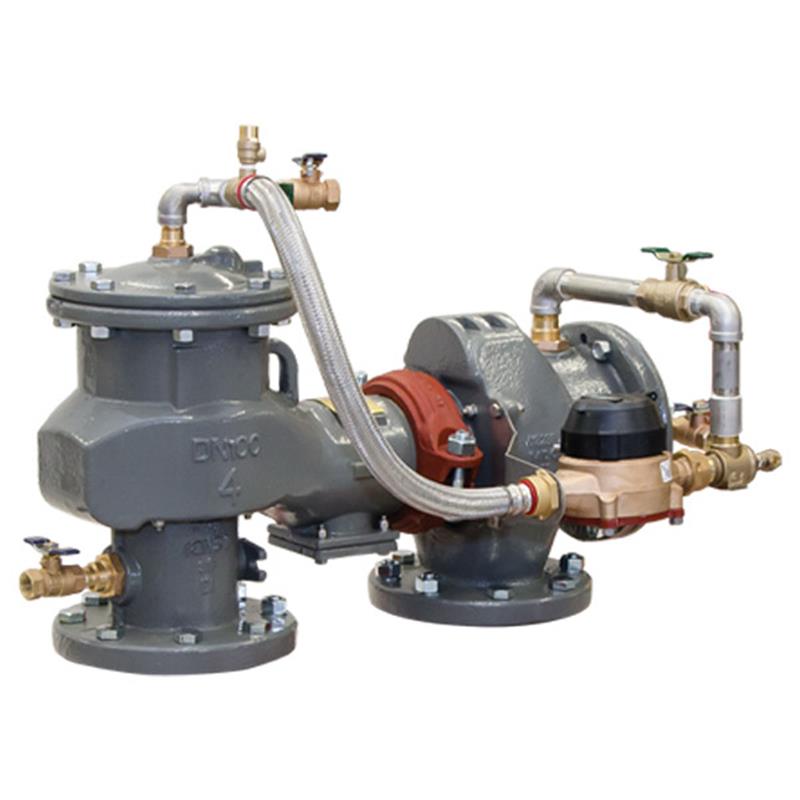

10 LF876W-LG-GPM

Item Number: 88007330
1 1
$32,944.51
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Size: 10 inch
  • Weight: 791.0 lb
  • Body Material: Ductile Iron
  • Coating: ArmorTek® Powder Coating
  • Pressure Rating: 175 PSI Max Working
  • Lead Content: Less than 0.25% by weight
  • Bypass Meter: Gallons per Minute (GPM)
  • Installation: Horizontal (N-Pattern)
  • Main Valve Service: In-line serviceable

Description

This 10 inch FEBCO MasterSeries LF876W Double Check Detector Backflow Preventer Assembly is designed for horizontal (N-Pattern) installation in potable water and fire sprinkler systems. It prevents backpressure and backsiphonage of polluted water into the main supply. Featuring a ductile iron body with ArmorTek® coating for enhanced corrosion resistance, this lead-free assembly provides a drop-in replacement for competitor N-pattern valves. It includes an in-line serviceable main valve with two independent check modules and a 5/8"x3/4" GPM metered bypass for leak detection and unauthorized usage. Rated for a maximum working pressure of 175 PSI, this unit is supplied without shutoff valves.

Help Me Connect

This 10 inch MasterSeries LF876W backflow preventer assembly is specifically designed as a drop-in replacement for competitor’s N-pattern valves. It is approved for horizontal (N-Pattern) installation. The assembly's end connections are compliant to ASME B16.1 Class 125 and AWWA Class D Flange standards. The auxiliary bypass line includes a 5/8 inch x 3/4 inch water meter that complies with ANSI/AWWA Standard C700. This model is supplied without shutoff valves, allowing for integration with existing or specified gate valves.

View full details

Additional Details

This 10 inch lead free FEBCO MasterSeries® LF876W Double Check Detector Backflow Preventer Assembly is designed to prevent the reverse flow of polluted water into the potable water supply due to backsiphonage and/or backpressure. It is ideal for installation on fire protection systems to indicate system leakage or unauthorized water use, and is suitable for potable drinking water systems where local codes mandate protection from non-health hazard pollutants.

This assembly provides a drop-in replacement lay length for competitor's N-pattern (horizontal) valves and features ArmorTek® coating technology on its iron components for advanced corrosion resistance, including protection against microbial-induced corrosion.

Construction & Key Features

  • Ductile iron body construction (Grade 65-45-12) with ArmorTek® powder coating on internal and external surfaces.
  • Lead Free*: Wetted surfaces contain less than 0.25% lead by weight.
  • Designed for horizontal (N-Pattern) installation.
  • Assembly without main line shutoff valves, allowing for custom valve selection.
  • Equipped with two in-line independent check valves, featuring replaceable stainless steel check seats and disc rubbers.
  • In-line serviceable assembly for main valve and 3/4 inch bypass check, requiring no special tools.

Bypass System

  • Compact design auxiliary bypass line includes a 5/8 inch x 3/4 inch water meter for detecting potential underground water leaks or unauthorized water usage.
  • Water meter complies with ANSI/AWWA Standard C700.
  • Features ball valve test cocks for easy testing.

Specifications

  • Product Type: Double Check Detector Backflow Preventer
  • Size: 10 inch
  • Body Material: Ductile Iron Grade 65-45-12
  • Coating: ArmorTek® Powder Coating (internal and external surfaces)
  • Check Seats: Stainless Steel
  • Disc Holder: Stainless Steel
  • Elastomer Disc: Silicone
  • Spring: Stainless Steel
  • Clamp: AWWA C606
  • Bypass Meter: 5/8 inch x 3/4 inch Gallons per Minute (GPM) Water Meter (ANSI/AWWA C700 Compliant)
  • Shutoff Valves: Not Included
  • Lead Content: Wetted surface less than 0.25% lead by weight

Pressure & Temperature Ratings

  • Maximum Working Pressure: 175 PSI (12.1 bar)
  • Minimum Working Pressure: 10 PSI (0.7 bar)
  • Hydrostatic Test Pressure: 350 PSI (24.1 bar)
  • Hydrostatic Safety Pressure: 700 PSI (48.3 bar)
  • Temperature Range: 33°F – 140°F (0.5°C – 60°C) continuous

Certificates & Approvals

  • Approved by the Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • ASSE 1048 Listed
  • IAPMO/CUPC
  • AWWA Standard C510 Compliant
  • CSA B64.5
  • End Connections: Compliant to ASME B16.1 Class 125 & AWWA Class D Flange
  • Please note: UL Classified and FM Approved ratings apply to assemblies configured with UL Classified/FM Approved OS&Y RW Gate Valves. This assembly is supplied without shutoff valves.

FAQs

What is the primary purpose of this backflow preventer?

This FEBCO MasterSeries LF876W Double Check Detector Backflow Preventer Assembly is designed to prevent the reverse flow of polluted water into the potable water supply due to backsiphonage or backpressure. It also helps detect system leakage or unauthorized water use.

Is this backflow preventer assembly lead-free?

Yes, the wetted surface of this product contacted by consumable water contains less than 0.25% of lead by weight, meeting lead-free requirements.

What type of corrosion protection does this assembly feature?

The iron components of this assembly are coated with ArmorTek®, a patented three-part advanced epoxy system. This coating is engineered to reduce microbial-induced corrosion (MIC) and protect exposed metal surfaces.

Does this assembly include shutoff valves?

No, this specific assembly is supplied without main line shutoff valves. This allows for flexibility in selecting and integrating compatible shutoff valves for your specific installation.

How does the auxiliary bypass system work?

The compact auxiliary bypass line contains a 5/8"x3/4" Water Meter that complies with ANSI/AWWA Standard C700. This meter is designed to detect small leaks or unauthorized water usage within the system.
