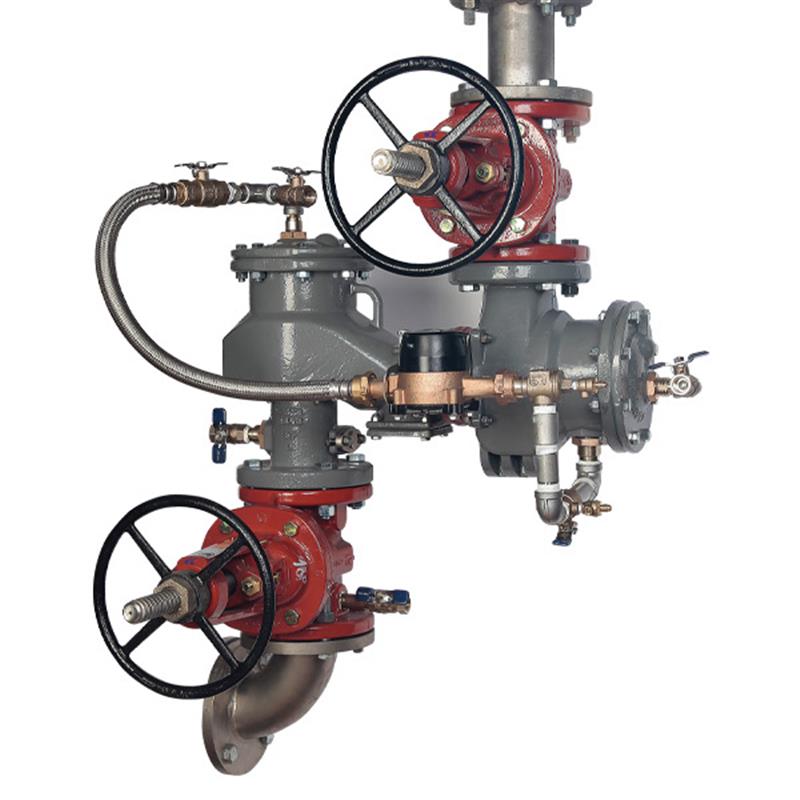

10 LF876WZ-DOSY-GPM

Item Number: 88007345
1 1
$52,700.25
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • Size: 10 inch
  • Weight: 1646.0 lb
  • Orientation: Z-Pattern
  • Main Valve Body: Ductile Iron Grade 65-45-12
  • Coating: ArmorTek powder coating
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 33°F - 140°F
  • Lead Free: Yes
  • Approvals: ASSE 1048, UL Classified, FM Approved, IAPMO/CUPC, AWWA C510, CSA B64.5

Description

The FEBCO MasterSeries LF876WZ Double Check Detector Assembly is a 10 inch lead-free backflow preventer, specifically designed in a Z-pattern for potable drinking water and fire sprinkler systems. It protects against non-health hazard (pollutant) backpressure and backsiphonage, featuring a durable ductile iron body with ArmorTek corrosion-resistant coating. This assembly includes independently acting check valves, OSY resilient seated gate valves, and a GPM metered bypass to detect system leaks or unauthorized usage. Approved by ASSE, UL, FM, and AWWA C510, it offers a maximum working pressure of 175 psi and is suitable for horizontal or vertical-up installations. Item number 88007345.

Help Me Connect

This FEBCO MasterSeries LF876WZ Double Check Detector Assembly is engineered for direct drop-in replacement of competitor's Z-pattern valves, featuring a longer lay-length for simplified installations. It supports both horizontal and vertical-up installations, offering flexibility to meet various site requirements and optimize installation costs. The end connections are compliant with ASME B16.1 Class 125 and AWWA Class D Flange standards, ensuring broad compatibility with existing piping systems.

View full details

Additional Details

The FEBCO MasterSeries LF876WZ Double Check Detector Assembly is a 10 inch lead-free backflow preventer specifically designed to prevent the reverse flow of polluted water into potable water supplies due to backsiphonage or backpressure. This Z-pattern assembly is primarily used on potable drinking water systems and fire sprinkler systems, providing protection against non-health hazard (pollutant) contamination. It includes a metered bypass for detecting system leakage or unauthorized water usage.

Construction & Design

  • Features an epoxy-coated ductile iron body with ArmorTek coating technology for advanced resistance against electrochemical and microbial-induced corrosion.
  • Equipped with two independently acting clapper style check modules with replaceable seats and disc rubbers, designed for in-line servicing without special tools.
  • Includes OSY resilient seated domestic gate valves for shutoff and four properly located resilient seated test cocks.
  • The auxiliary bypass line contains a 5/8"x3/4" Water Meter (GPM) to detect potential underground water leaks and unauthorized water usage.
  • Designed for horizontal and/or vertical-up installations, meeting AWWA Standard C510 flow and pressure loss parameters.

Specifications

General

  • Product Type: Double Check Detector Assembly (Type II)
  • Size: 10 inch
  • Orientation: Z-Pattern
  • Primary Use: Potable drinking water systems, Fire sprinkler systems
  • Lead Free: Yes (wetted surface contains less than 0.25% lead by weight)

Materials

  • Main Valve Body: Ductile Iron Grade 65-45-12
  • Coating: ArmorTek powder coating, applied to internal and external surfaces
  • Shutoff Valves: OSY resilient wedge gate valve (AWWA C515, UL Classified/FM Approved)
  • Check Seats: Stainless steel
  • Disc Holder: Stainless steel
  • Elastomer Disc: Silicone
  • Spring: Stainless steel
  • Clamp: AWWA C606

Performance

  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Minimum Working Pressure: 10 psi (0.7 bar)
  • Hydrostatic Test Pressure: 350 psi (24.1 bar)
  • Hydrostatic Safety Pressure: 700 psi (48.3 bar)
  • Temperature Range: 33°F - 140°F (0.5°C ~ 60°C) continuous
  • Water Meter: 5/8" x 3/4" (GPM totalizing)

Certificates & Approvals

  • Approved by the Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • ASSE 1048 Listed
  • UL Classified (U.S. & Canada)**
  • FM Approved**
  • IAPMO/CUPC
  • AWWA Standard C510 Compliant
  • End Connections: Compliant to ASME B16.1 Class 125 & AWWA Class D Flange
  • CSA B64.5

FAQs

What is the primary function of the FEBCO MasterSeries LF876WZ assembly?

Its primary function is to prevent the reverse flow of polluted water into potable drinking water and fire sprinkler systems, protecting against non-health hazard (pollutant) contamination due to backsiphonage or backpressure.

What is the maximum operating pressure and temperature for this backflow preventer?

The maximum operating pressure is 175 psi (12.1 bar), and the continuous temperature range is 33°F to 140°F (0.5°C to 60°C).

What does the ArmorTek coating provide for the valve?

The ArmorTek coating is a patented three-part advanced epoxy system applied to the ductile iron body to reduce microbial-induced corrosion (MIC) and protect exposed metal surfaces from electrochemical corrosion.

Can this assembly be installed in different orientations?

Yes, the assembly is approved for both horizontal and vertical-up installations, providing flexibility for various site requirements.

How does the auxiliary bypass line function?

The auxiliary bypass line contains a 5/8"x3/4" water meter that complies with ANSI/AWWA Standard C700. It is designed to detect potential underground water leaks or unauthorized water usage within the water system.
