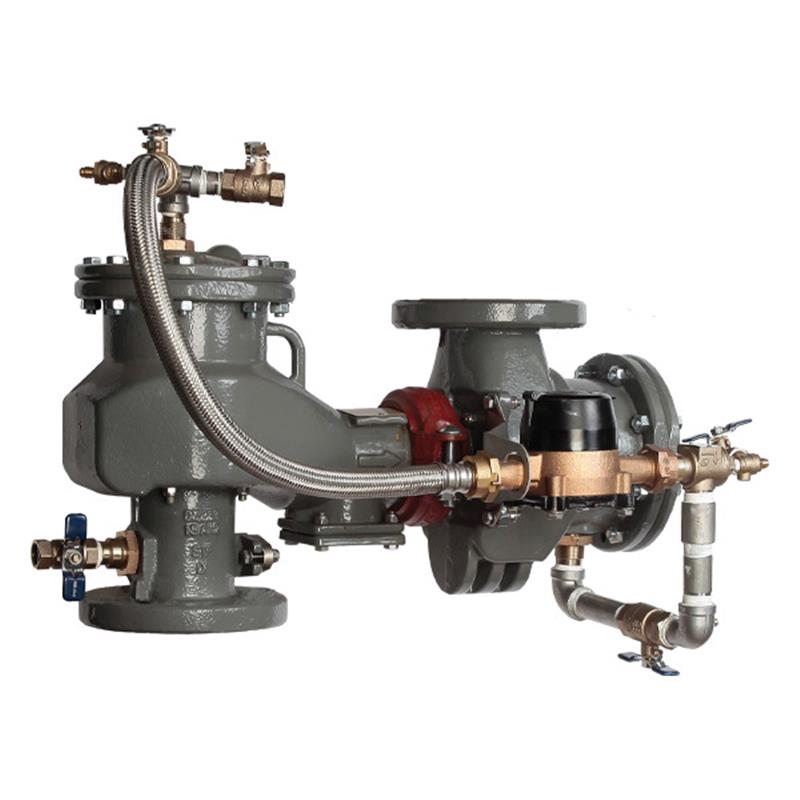

10 LF876WZ-LG-GPM

Item Number: 88007347
1 1
$32,944.51
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Febco
  • 10 inch nominal size
  • Weight: 796.0 lb
  • Lead Free ductile iron construction
  • ArmorTek corrosion-resistant coating
  • Max Working Pressure: 175 psi
  • Temperature Range: 33°F - 140°F
  • Detects system leakage and unauthorized water use
  • Z-Pattern for competitor drop-in replacement
  • Equipped with a Gallons per Minute bypass meter

Description

The FEBCO 10 inch MasterSeries LF876W/WZ is a lead-free double check detector backflow preventer assembly designed for non-health hazard (pollutant) applications. Featuring a ductile iron body with ArmorTek coating for superior corrosion resistance, this valve prevents polluted water from entering potable water systems due to backsiphonage or backpressure. It is configured for Z-pattern installations, offering a drop-in replacement for competitor valves without shutoff valves. The integrated bypass with a Gallons per Minute meter detects system leakage and unauthorized water use, making it ideal for fire protection and potable water systems. It operates up to 175 psi and between 33°F to 140°F.

Help Me Connect

Connections & Compatibility

This 10 inch FEBCO MasterSeries LF876W/WZ assembly is specifically designed for Z-pattern horizontal or vertical-up installations, featuring a longer lay-length for direct drop-in replacement of existing competitor Z-pattern valves. Its end connections are compliant with ASME B16.1 Class 125 and AWWA Class D Flange standards. The bypass line includes a 5/8"x3/4" water meter compliant with ANSI/AWWA Standard C700.

View full details

Additional Details

The 10 inch FEBCO MasterSeries LF876W/WZ Double Check Detector Assembly is a lead-free backflow preventer designed to protect potable water supplies from pollution caused by backpressure or backsiphonage, specifically for non-health hazard (pollutant) applications.

This assembly, supplied without shutoff valves, is ideal for installation on potable drinking water systems and fire sprinkler systems where local codes require protection against the reverse flow of non-potable water, and it features a longer lay-length for drop-in replacement of competitor's Z-pattern valves.

Main Valve Features

  • In-line serviceable assembly requiring no special tools
  • Captured modular spring assembly with reversible and replaceable discs
  • Field replaceable seats
  • ArmorTek coating technology to resist corrosion of internals
  • Winterization feature with disc retainers and valve body drain ports
  • Clapper check assembly with commonality between 1st and 2nd check components
  • Captured O-ring design

Auxiliary Bypass Features

  • Compact design that remains within the main valve assembly profile
  • In-line serviceable 3/4 inch check assembly
  • Field replaceable seat and disc
  • Detects potential underground water leaks
  • Detects unauthorized water usage

Construction Materials

  • Main Valve Body: Ductile iron Grade 65-45-12
  • Coating: ArmorTek powder coating, applied to internal and external surfaces
  • Check Seats: Stainless steel
  • Disc Holder: Stainless steel
  • Elastomer Disc: Silicone
  • Spring: Stainless steel
  • Clamp: AWWA C606

Specifications

  • Nominal Size: 10 inch
  • Model: LF876W/WZ (Z-Pattern)
  • Configuration: Less Shutoff Valves (LG)
  • Bypass Meter: Gallons per Minute (GPM)
  • Body Material: Ductile Iron Grade 65-45-12
  • Coating: ArmorTek Powder Coating
  • Check Seat Material: Stainless Steel
  • Disc Holder Material: Stainless Steel
  • Elastomer Disc Material: Silicone
  • Spring Material: Stainless Steel
  • Clamp Material: AWWA C606

Pressure & Temperature

  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Minimum Working Pressure: 10 psi (0.7 bar)
  • Hydrostatic Test Pressure: 350 psi (24.1 bar)
  • Hydrostatic Safety Pressure: 700 psi (48.3 bar)
  • Temperature Range: 33°F - 140°F (0.5°C ~ 60°C) continuous

Certificates & Approvals

  • Approved by the Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • ASSE 1048 Listed
  • UL Classified (U.S. & Canada)
  • FM Approved
  • IAPMO/CUPC
  • AWWA Standard C510 Compliant
  • End Connections: Compliant to ASME B16.1 Class 125 & AWWA Class D Flange
  • CSA B64.5

FAQs

What is the primary purpose of this backflow preventer assembly?

This backflow preventer is designed to prevent the reverse flow of polluted water from entering a potable water supply due to backsiphonage or backpressure, specifically for non-health hazard (pollutant) applications in potable drinking water and fire sprinkler systems.

Does this assembly include shutoff valves?

No, this specific FEBCO MasterSeries LF876W/WZ model (SKU 88007347) is supplied without shutoff valves, as indicated by the "LG" in its model designation.

What makes this backflow preventer resistant to corrosion?

The main valve body is constructed from durable ductile iron Grade 65-45-12 and features ArmorTek powder coating, a patented three-part advanced epoxy system applied to both internal and external surfaces to resist microbial-induced corrosion (MIC) and protect exposed metal.

Can this assembly be used as a replacement for existing valves?

Yes, this assembly features a longer lay-length specifically designed for drop-in replacement of competitor’s Z-pattern backflow preventer valves, simplifying installation. It can be installed in horizontal Z-pattern or vertical-up Z-pattern orientations.

How does the auxiliary bypass system function?

The compact auxiliary bypass line includes a 5/8"x3/4" water meter that is compliant with ANSI/AWWA Standard C700. It is designed to detect potential underground water leaks and unauthorized water usage within the system.
