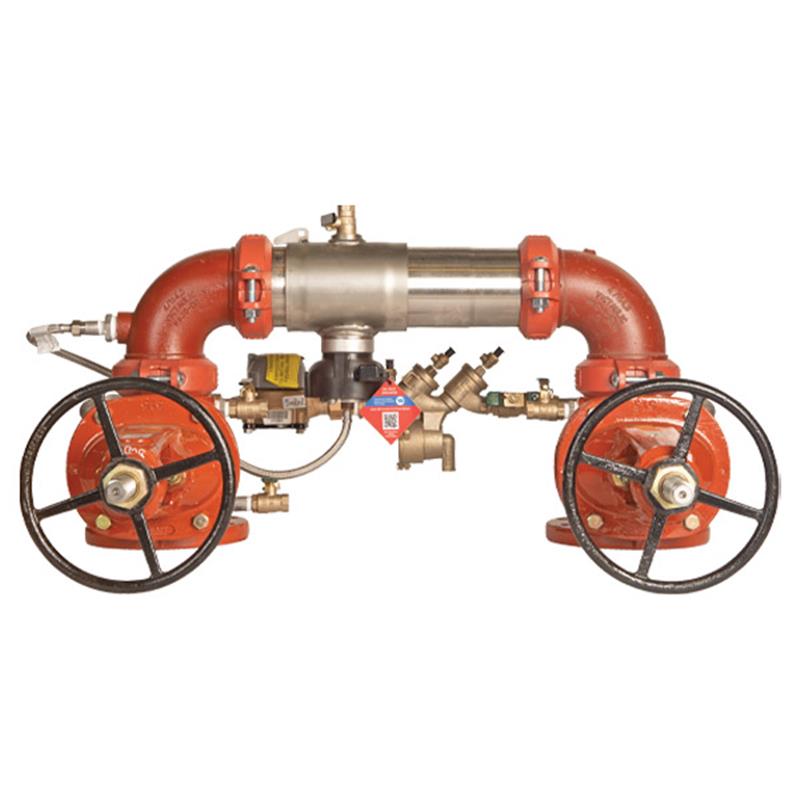

10 LFC500N-OSY-G-FS

Item Number: F0124652
1 1
$46,349.14
Special Order
When Will it Ship: Contact for Lead Time
Estimated transit time: 2 to 5 Business Days

Brand - Ames
  • 10 inch Lead Free Reduced Pressure Detector Assembly
  • Weight: 1164.0 lb
  • Housing & Sleeve: Type 304 (Schedule 40) Stainless Steel
  • Maximum Working Pressure: 175 psi
  • Temperature Range: 33°F - 110°F
  • Includes flood sensor with SentryPlus Alert® technology
  • Features OSY resilient seated gate valves with grooved connections
  • Approved for horizontal N pattern installation
  • Complies with ASSE 1047, CSA B64.4, cULus, FM, NSF/ANSI 372, AWWA C511-97

Description

The Colt 10 inch Lead Free Reduced Pressure Detector Assembly, model LFC500N-OSY-G-FS, prevents backflow contamination in potable water systems. It protects against backsiphonage, backpressure, and fouling of check valves in fire protection systems. This compact unit features a Type 304 stainless steel housing, OSY shutoff valves with grooved connections, and a bottom-mounted relief valve. An integrated flood sensor with SentryPlus Alert® technology detects excessive water discharge, notifying personnel of potential flooding with an optional connection kit. It is rated for 175 psi maximum working pressure and approved for horizontal N pattern installation. Item number F0124652.

Help Me Connect

This Colt™ LFC500N-OSY-G-FS backflow preventer features OSY (Outside Stem and Yoke) resilient seated gate valves with grooved connections for both inlet and outlet. The assembly is designed for horizontal N pattern installation.

For the integrated flood sensor, an add-on sensor connection kit is required to activate its alert capabilities. Without this kit, the flood sensor remains passive. Connection kit options include those compatible with Building Management Systems (BMS), cellular communication, and a Sensor Control Monitor that integrates with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi.

View full details

Additional Details

The Colt™ 10 inch Lead Free Reduced Pressure Detector Backflow Preventer Assembly is designed to protect potable water systems from contamination due to backsiphonage and backpressure, commonly used in health-hazard applications. This assembly also monitors for unauthorized water use from the fire protection system.

This compact and lightweight model features a stainless steel body, OSY shutoff valves with grooved connections, and a flood sensor for enhanced safety.

Features

  • Lead Free* construction with wetted surfaces containing less than 0.25% lead by weight
  • Extremely compact design that is 70% lighter than traditional designs
  • Housing and sleeve constructed from Type 304 (Schedule 40) stainless steel for durability
  • Groove fittings for integral pipeline adjustment and ease of serviceability
  • Patented link check for lowest pressure loss
  • Reversible elastomer check discs for drip-tight closure
  • Bottom-mounted cast stainless steel relief valve to detect excessive water discharges
  • Metered bypass with a gallon per minute meter to detect leakage or theft of water from the fire sprinkler system
  • Integrated flood sensor with SentryPlus Alert® technology to detect relief valve discharge
  • Flood alert feature activated by an add-on sensor connection kit (available separately) for communication via BMS, cellular, or Sensor Control Monitor (RS-485 Modbus / Nexa® Wi-Fi)
  • Approved for horizontal N pattern installation

NOTICE: An add-on sensor connection kit is required to activate the flood sensor. Without the connection kit, the flood sensor is a passive component and will not communicate with any other device.

Specifications

General

  • Size: 10 inch
  • Model: LFC500N-OSY-G-FS
  • Configuration: Horizontal N Pattern
  • Application: Backsiphonage, Backpressure, Fire Protection Systems

Materials

  • Housing & Sleeve Material: Type 304 (Schedule 40) Stainless Steel
  • Elastomer Material: EPDM, Silicone, Buna-N
  • Link Check Material: Noryl®, Stainless Steel
  • Check Disc Material: Reversible Silicone or EPDM
  • Test Cock Material: Lead Free* Bronze Body
  • Pins & Fastener Material: 300 Series Stainless Steel
  • Spring Material: Stainless Steel

Performance

  • Maximum Working Pressure: 175 psi (12.1 bar)
  • Temperature Range: 33°F - 110°F (0.5°C – 43°C)
  • Features: Metered bypass, Flood sensor with SentryPlus Alert® technology

Certificates & Approvals

  • ASSE 1047
  • CSA B64.4
  • cULus Classified
  • FM Approved (OSY Only)
  • NSF Certified to NSF/ANSI 372
  • Approved by Foundation for Cross-Connection Control and Hydraulic Research at The University of Southern California (FCCCHR-USC)
  • AWWA C511-97

FAQs

What is the primary purpose of the Colt LFC500N-OSY-G-FS assembly?

Its primary purpose is to protect potable water systems from contamination due to backsiphonage and backpressure. It is typically used in health-hazard applications and also monitors unauthorized water use from fire protection systems.

Is this backflow preventer lead-free?

Yes, the Colt LFC500N-OSY-G-FS features Lead Free* construction. The wetted surfaces of this product that come into contact with consumable water contain less than 0.25% lead by weight.

What type of shutoff valves and connections does this model use?

This model is equipped with OSY (Outside Stem and Yoke) resilient seated gate valves. Both the inlet and outlet connections are grooved for ease of installation and adjustment.

How does the flood sensor work, and what is needed to activate it?

The flood sensor with SentryPlus Alert® technology detects excessive water discharges from the relief valve. To activate its alert capabilities and enable communication, an add-on sensor connection kit is required, which is sold separately.

What is the maximum operating pressure and temperature range for this backflow assembly?

The Colt LFC500N-OSY-G-FS has a maximum working pressure of 175 psi (12.1 bar). Its operating temperature range is 33°F to 110°F (0.5°C to 43°C).
