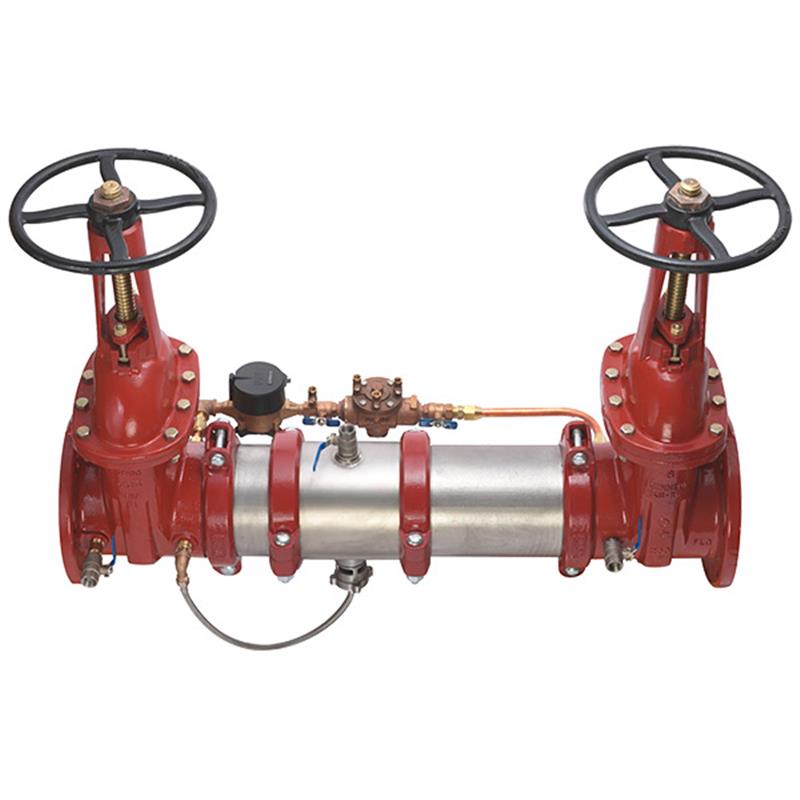

This Maxim™ 10 inch lead free reduced pressure detector backflow preventer assembly is designed to prevent the reverse flow of fire protection substances and water of non-potable quality into the potable water supply. It protects against backsiphonage and backpressure in accordance with national plumbing codes and water authority requirements.

Ideal for protection at cross-connections identified as health hazards, such as on fire sprinkler systems and from other contaminants found at the service line entrance, this compact modular assembly ensures the safety of your water supply. The unit is furnished with a gallon per minute meter to detect underground leaks and unauthorized water use.

Features

• Prevents the reverse flow of fire protection substances and non-potable water
• Compact design, approximately 70% lighter than traditional models
• Valve body and closure sleeve manufactured from 304 (Schedule 40) stainless steel
• Features drip tight shutoff valves and a quick access sleeve for easy maintenance
• Includes a gallon per minute meter for leak detection and monitoring unauthorized water use
• Equipped with torsion spring check valves, outside stem and yoke (OSY) resilient seated gate valves, test cocks, and a corrosive resistant bottom mounted pressure relief valve
• Groove fittings allow for integral pipeline adjustment
• Prevents Link Check provides lowest pressure loss
• Offers uninterrupted ease of serviceability with a single access cover
• Available for horizontal or N pattern installations
• Equipped with bronze body nickel plated test cocks and replaceable check disc rubber
