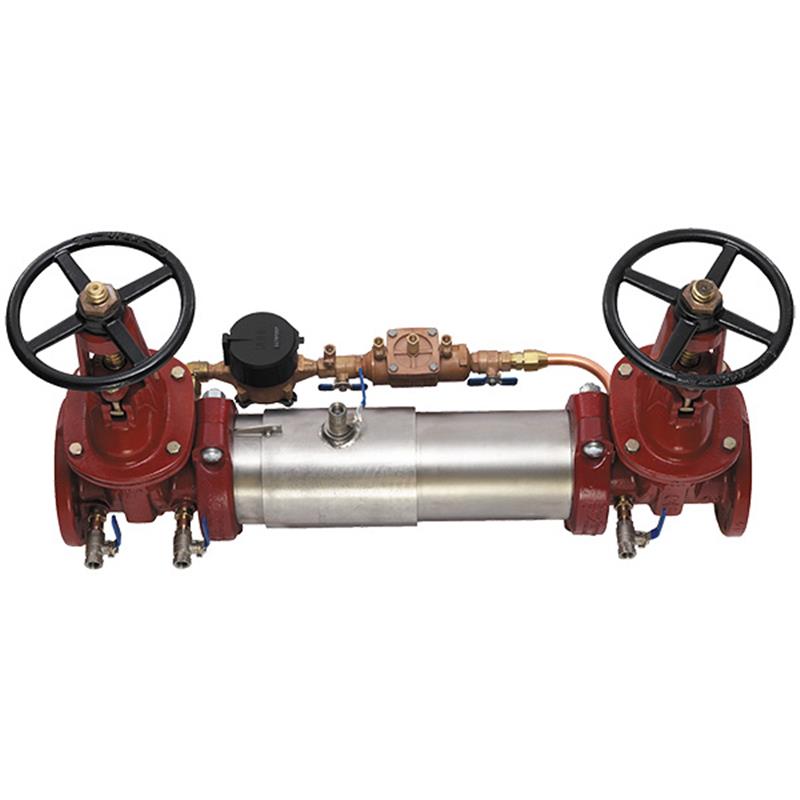

The Ames Fire & Waterworks Maxim 10 inch double check detector backflow preventer assembly is designed for preventing the backflow of non-potable water and fire protection substances into the potable water supply. This assembly is ideal for cross-connections identified as non-health hazards, such as fire sprinkler systems. It features durable stainless steel construction for corrosion protection and maximum strength, along with tri-link check valves for minimal pressure loss. The compact design includes OSY resilient seated gate valves, a gallon per minute meter for leak detection, and allows for both horizontal or vertical installation. Item number 0191043.
Help Me Connect
This backflow preventer assembly is approved for either horizontal or vertical installation, provided the installation adheres to the direction of the flow arrow on the assembly.
It features outside stem and yoke (OSY) resilient seated gate valves for shutoff on both the inlet and outlet, making it compatible with standard OSY valve connections.
The Ames Fire & Waterworks Maxim™ 10 inch double check detector backflow preventer assembly is designed to prevent the reverse flow of non-potable water and fire protection substances into the potable water supply.
It is ideal for protecting cross-connections identified as non-health hazards, such as those found on fire sprinkler systems and at service line entrances, preventing contamination due to backsiphonage or backpressure.
Construction & Features
Features a stainless steel single housing with an access sleeve for easy maintenance and long-term corrosion protection.
Includes tri-link check valves which provide the lowest pressure loss and feature replaceable check disc rubber.
Furnished with outside stem and yoke (OSY) resilient seated gate valves for shutoff.
Comes with a gallon per minute meter to detect underground leaks and unauthorized water use.
Equipped with four test cocks for verification.
Compact modular design approved for horizontal or vertical installation according to the direction of flow.
What is the primary purpose of the 10 inch Maxim Double Check Detector Backflow Preventer?
Its primary purpose is to prevent the reverse flow of non-potable water and fire protection substances into the potable water supply, protecting against contamination from backsiphonage or backpressure.
What type of installation is supported for this backflow preventer?
This backflow preventer assembly is approved for both horizontal and vertical installation, provided the direction of flow arrow on the assembly is followed.
What material is the main body of this backflow preventer made from?
The main body and single housing are constructed from durable stainless steel, offering long-term corrosion protection and maximum strength.
Does this assembly include a water meter?
Yes, it comes furnished with a gallon per minute (GPM) meter designed to detect underground leaks and unauthorized water use.
What kind of shutoff valves are included with this assembly?
This assembly is equipped with outside stem and yoke (OSY) resilient seated gate valves for shutoff.
