Design Feature: 70% lighter than traditional designs
Couplings: Groove for easy installation and alignment
Description

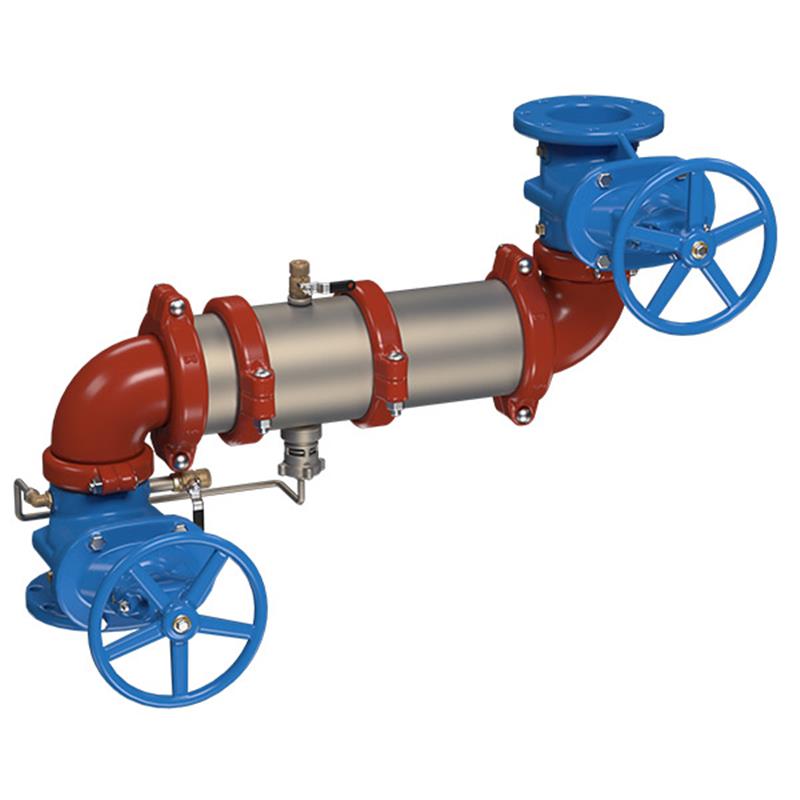

The Maxim™ 10 inch lead free reduced pressure zone backflow preventer assembly is engineered to safeguard potable water supplies from contamination caused by backsiphonage or backpressure. This unit features a durable 304 (Schedule 40) stainless steel housing and sleeve, non-rising stem (NRS) shutoff valves, and torsion spring link check modules. Its extremely compact design is 70 percent lighter than traditional assemblies, simplifying installation with groove couplings in a horizontal Z pattern. It provides reliable protection for continuous pressure piping applications and cross-connections identified as health hazards, ensuring compliance with plumbing codes.
Help Me Connect
Installation Guidelines
This backflow preventer assembly utilizes groove couplings for straightforward installation and pipe alignment.
It is designed for horizontal Z pattern installation; ensure the assembly is oriented correctly with the direction of the flow arrow.
Maintain adequate clearance around the valve for inspection, testing, and servicing. A 12-inch minimum clearance is needed between the lower part of the assembly and the floor or grade.
The valve must be protected from freezing.
For normal discharge and nuisance spitting, an Ames air gap fitting and a fabricated indirect waste line can be used.
Ensure floor drains of the same size are provided in case of excessive discharge.
This is a Maxim™ 10 inch lead free reduced pressure zone backflow preventer assembly designed to prevent the reverse flow of fire protection substances and non-potable water into the potable water supply due to backsiphonage or backpressure.
It is ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards, ensuring compliance with national plumbing codes and water authority requirements.
Construction & Components
Features a 304 (Schedule 40) stainless steel housing and sleeve for durability.
Equipped with a quick access sleeve, torsion spring check modules, and resilient seated gate valves with non-rising stem (NRS).
Includes test cocks and a bottom mounted pressure relief valve.
Replaceable check disc rubber for extended service life.
Design & Installation
Extremely compact design allows for use with smaller enclosures.
Approximately 70 percent lighter than traditional designs for easier handling.
Groove couplings facilitate easy installation and pipe alignment.
Approved for horizontal Z pattern installation, provided the assembly is installed according to the flow arrow direction.
Link check modules contribute to the lowest pressure loss.
Features drip tight shutoff valves.
Installation must be performed by a trained product installer who has thoroughly read all installation instructions and product safety information.
Specifications
Nominal Size: 10 inch (250 mm)
Assembly Type: Reduced Pressure Zone Backflow Preventer
Check Module Type: Torsion Spring, Link Check Modules
Relief Valve: Bottom Mounted Stainless Steel
Connection Type: Groove Couplings
Installation Orientation: Horizontal (Z Pattern)
Dimensions (Approximate)
Dimension A: 13 inch (330 mm)
Dimension B: 6 1/2 inch (165 mm)
Dimension C: 12 inch (305 mm)
Dimension D: 26 1/2 inch (673 mm)
Dimension E: 6 3/4 inch (171 mm)
Dimension F: 10 1/4 inch (260 mm)
FAQs
What is the primary function of this backflow preventer?
This Maxim™ 10 inch backflow preventer assembly is designed to prevent the reverse flow of non-potable water and fire protection substances into the potable water supply, protecting against contamination from backsiphonage or backpressure.
What material is the housing and sleeve made from?
The housing and sleeve of this assembly are constructed from durable 304 (Schedule 40) stainless steel, offering corrosion resistance and strength for reliable performance.
What type of shutoff valves are included with this assembly?
This assembly features resilient seated gate valves with non-rising stems (NRS), which are used for positive shutoff during maintenance or testing.
Can this backflow preventer be installed in any orientation?
No, this Maxim™ backflow preventer is specifically approved for horizontal Z pattern installation. It must be installed in accordance with the direction of the flow arrow.
What are the key advantages of this backflow preventer's design?
Key advantages include its extremely compact design, being approximately 70 percent lighter than traditional models, and the use of groove couplings for easy installation and pipe alignment. It also features link check modules for lowest pressure loss.
